2390874 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

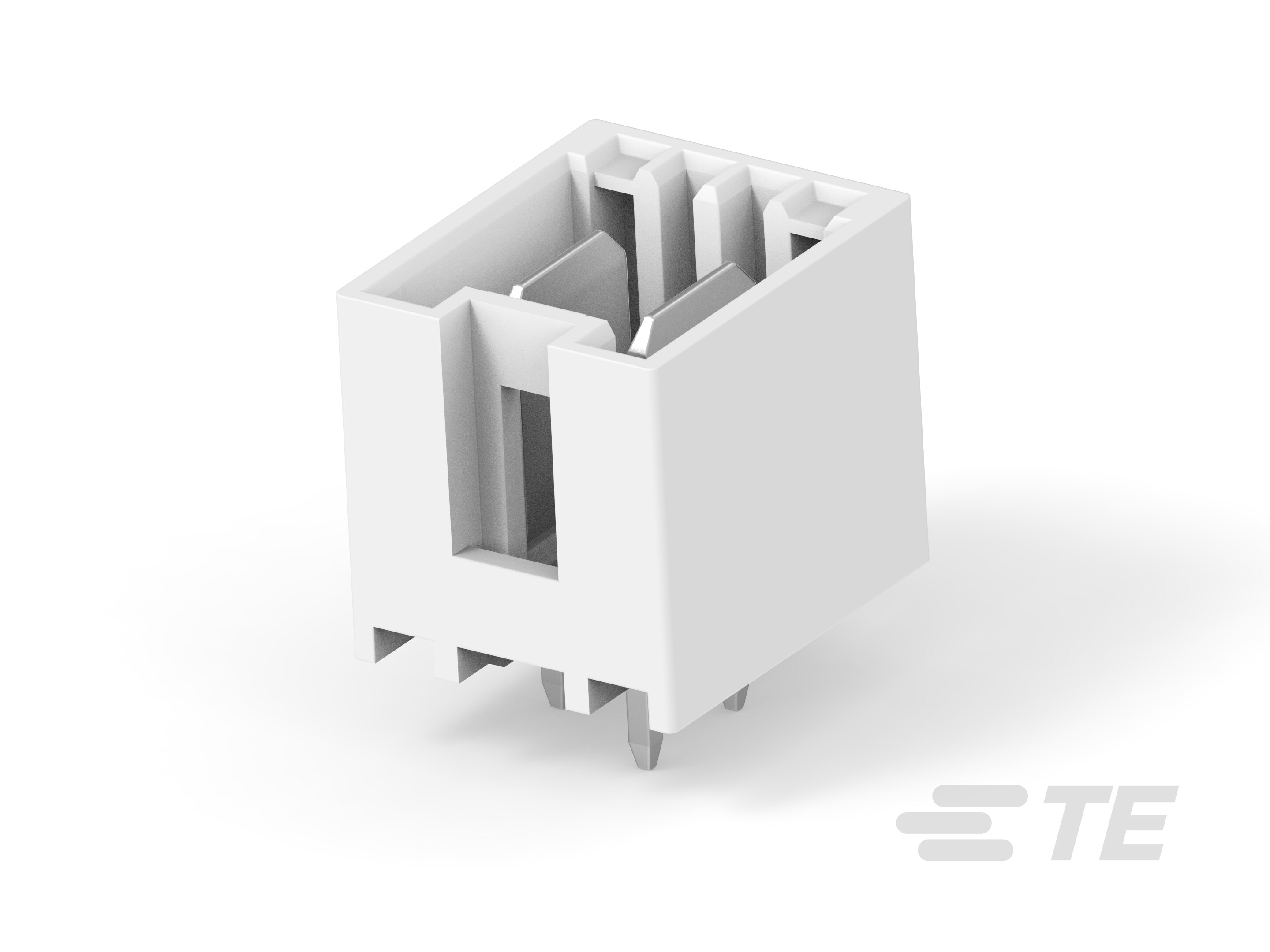

2P, RAST 5 TAB HEADER, TIN, DIN THV
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Number of Rows | Insulation Height | Contact Finish Thickness - Mating | Connector Type | Contact Material | Shrouding | Termination | Mounting Type | Fastening Type | Contact Length - Post | Pitch - Mating | Material Flammability Rating | Contact Finish - Mating | Contact Type | Number of Positions | Contact Finish - Post | Insulation Color | Insulation Material | Contact Shape | Voltage Rating | Features | Number of Positions Loaded | Current Rating | Style | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 120 °C | -40 °C | 1 | 0.504 in | 78.7 Ąin | Header | Copper Alloy | Shrouded - 4 Wall | Solder | Through Hole | Detent Lock | 0.138 in | 0.197 in | UL94 V-0 | Tin | Tab | 2 | Tin | Natural | Nylon Polyamide (PA) | Rectangular | 250 V | Board Guide Glow Wire Compliant | All | 20 A | Board Cable/Wire | 78.7 µin |
