2108937 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

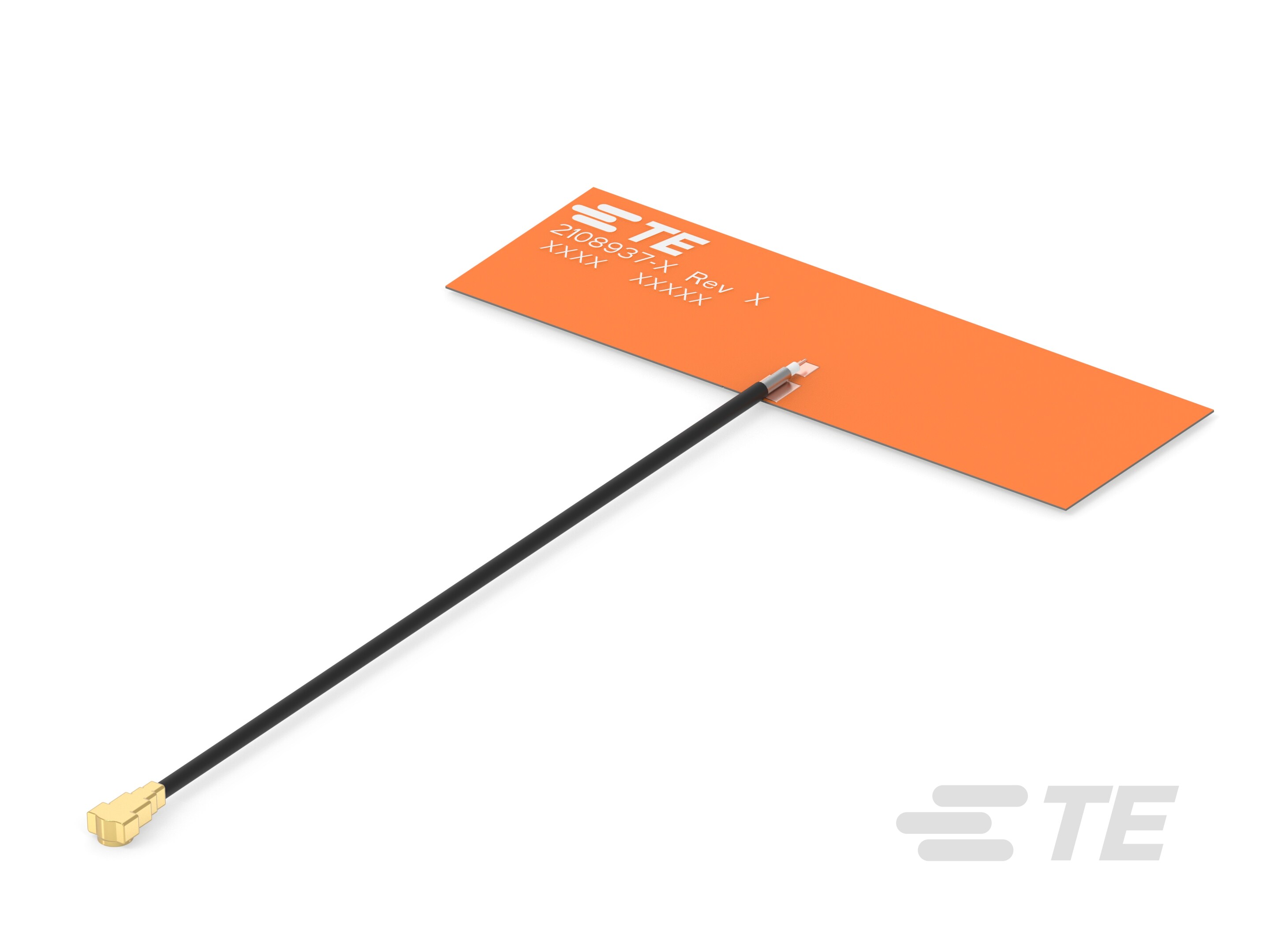

FPC ANT, MHF, 200MM, GNSS+ WI-FI 6E
| Part | Frequency (Center/Band) | Frequency (Center/Band) - 3 | Frequency (Center/Band) - 1 | Frequency (Center/Band) - 4 | Frequency (Center/Band) - 2 | Frequency Group | Applications | VSWR | Height (Max) | Mounting Type | RF Family/Standard | Number of Bands | Antenna Type | Termination | Gain | Frequency Range (Band 3) Maximum | Frequency Range (Band 4) Minimum | Frequency Range (Band 3) Minimum | Frequency Range (Band 4) Maximum | Frequency Range (Band 2) Minimum | Frequency Range (Band 1) Minimum | Frequency Range (Band 1) Maximum | Frequency Range (Band 2) Maximum | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.585GHz 2.45GHz 5.513GHZ 6.525GHz | 5.513 GHz | 1.585 GHz | 6.525 GHz | 2.45 GHz | Wide Band | Bluetooth GNSS Wi‑Fi 6E Zigbee™ | 1.4 1.6 1.7 1.8 | 0.079 in | Adhesive | Bluetooth Navigation WiFi | 4 | Flat Patch | MHF | 0.4 dBi 0.6 dBi 1.2 dBi 4.2 dBi | 5.875 GHz | 5.925 GHz | 5.15 GHz | 7.125 GHz | 2.4 GHz | 1.559 GHz | 1.61 GHz | 2.5 GHz | 200mm Cable |
 TE Connectivity AMP Connectors | 1.585GHz 2.45GHz 5.513GHZ 6.525GHz | 5.513 GHz | 1.585 GHz | 6.525 GHz | 2.45 GHz | Wide Band | Bluetooth GNSS Wi‑Fi 6E Zigbee™ | 1.4 1.6 1.7 1.8 | 0.079 in | Adhesive | Bluetooth Navigation WiFi | 4 | Flat Patch | MHF | 0.4 dBi 0.6 dBi 1.2 dBi 4.2 dBi | 5.875 GHz | 5.925 GHz | 5.15 GHz | 7.125 GHz | 2.4 GHz | 1.559 GHz | 1.61 GHz | 2.5 GHz | 50mm Cable |
TE Connectivity AMP Connectors | 1.585GHz 2.45GHz 5.513GHZ 6.525GHz | 5.513 GHz | 1.585 GHz | 6.525 GHz | 2.45 GHz | Wide Band | Bluetooth GNSS Wi‑Fi 6E Zigbee™ | 1.4 1.6 1.7 1.8 | 0.079 in | Adhesive | Bluetooth Navigation WiFi | 4 | Flat Patch | MHF | 0.4 dBi 0.6 dBi 1.2 dBi 4.2 dBi | 5.875 GHz | 5.925 GHz | 5.15 GHz | 7.125 GHz | 2.4 GHz | 1.559 GHz | 1.61 GHz | 2.5 GHz | 100mm Cable |
TE Connectivity AMP Connectors | 1.585GHz 2.45GHz 5.513GHZ 6.525GHz | 5.513 GHz | 1.585 GHz | 6.525 GHz | 2.45 GHz | Wide Band | Bluetooth GNSS Wi‑Fi 6E Zigbee™ | 1.4 1.6 1.7 1.8 | 0.079 in | Adhesive | Bluetooth Navigation WiFi | 4 | Flat Patch | MHF | 0.4 dBi 0.6 dBi 1.2 dBi 4.2 dBi | 5.875 GHz | 5.925 GHz | 5.15 GHz | 7.125 GHz | 2.4 GHz | 1.559 GHz | 1.61 GHz | 2.5 GHz | 150mm Cable |
