D38999/24FH Series

Manufacturer: Amphenol Aerospace Operations

Catalog

D38999/24FH21SN

Part	Shell Size - Insert Length	Shell Size - Insert Width	Primary Material	Fastening Type	Termination	Contact Finish Thickness - Mating	Shell Finish	Shell Material	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Color	Mounting Type	Connector Type	Orientation	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Shell Size (MIL)	Number of Positions	Current Rating	Contact Finish - Mating	Mounting Feature	Grade	Qualification	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Note	Contact Shape	Type	Contact Type	Housing Color	Contact Size Options	Ingress Protection

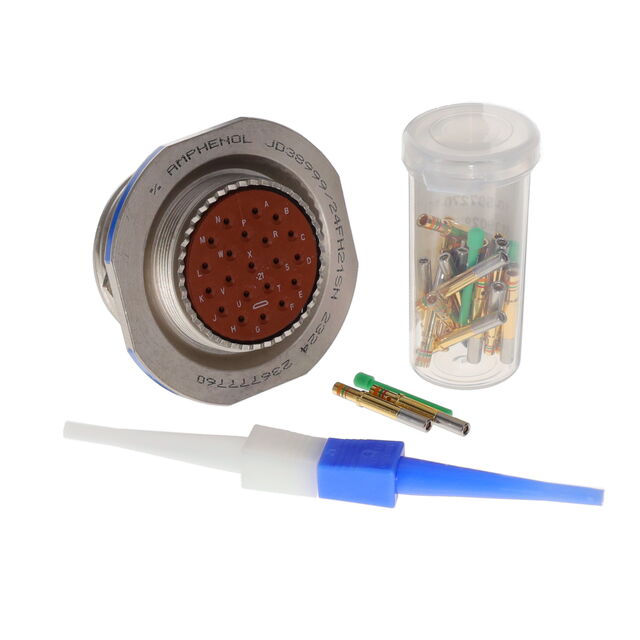

Amphenol Aerospace Operations D38999/24FH21SN	23 mm	21 mm	Metal	Threaded	Crimp	50 µin	Nickel	Aluminum	Thermoplastic	Dust Tight Waterproof	IP67	Shielded	Silver	Panel Mount	Female Sockets Receptacle	N (Normal)	Copper Alloy	200 °C	-65 °C	Aviation Marine Military	H	21	13 A	Gold	Bulkhead Front Side Nut
Amphenol Aerospace Operations D38999/24FH55SN			Metal	Threaded	Crimp	50 µin	Nickel	Aluminum	Thermoplastic	Dust Tight Waterproof	IP67	Shielded	Silver	Panel Mount	Female Sockets Receptacle	N (Normal)	Copper Alloy	200 °C	-65 °C	Aviation Marine Military	H	55	7.5 A	Gold	Bulkhead Front Side Nut	Military	MIL-DTL-38999 Series III	23	55
Amphenol Aerospace Operations D38999/24FH55PNL
Amphenol Aerospace Operations D38999/24FH35PA-LC			Metal	Threaded			Electroless Nickel	Aluminum				Shielded		Panel Mount	Receptacle Housing	A		200 °C	-65 °C		H	100			Bulkhead Front Side Nut	Military	MIL-DTL-38999 Series III	23	35	Contacts Not Included	Circular	For Male Pins	Crimp	Silver	22D	Environment Resistant
Amphenol Aerospace Operations D38999/24FH53SC			Metal	Threaded	Crimp	50 µin	Electroless Nickel	Aluminum				Shielded	Silver	Panel Mount	Female Sockets Receptacle	C	Copper Alloy	200 °C	-65 °C	Aerospace Aviation Marine Military	H	53		Gold	Bulkhead Front Side Nut			23	53
Amphenol Aerospace Operations D38999/24FH53PN			Metal	Threaded	Crimp	50 µin	Electroless Nickel	Aluminum				Shielded	Silver	Panel Mount	Male Pins Receptacle	N (Normal)	Copper Alloy	200 °C	-65 °C	Aerospace Aviation Marine Military	H	53		Gold	Bulkhead Front Side Nut			23	53
Amphenol Aerospace Operations D38999/24FH2SNL

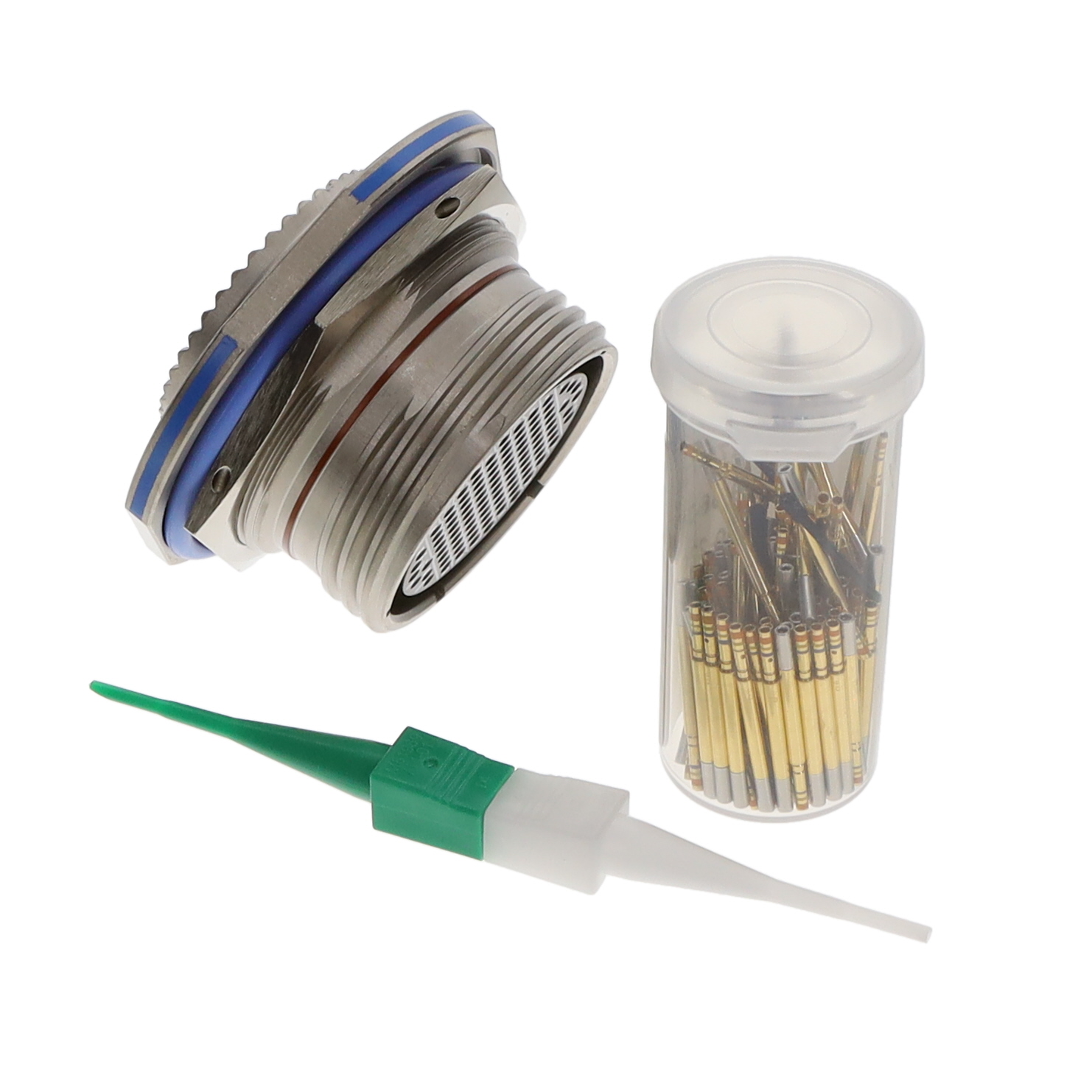

Amphenol Aerospace Operations D38999/24FH35SN			Metal	Threaded	Crimp	50 µin	Nickel	Aluminum	Thermoplastic	Dust Tight Waterproof	IP67	Shielded	Silver	Panel Mount	Female Sockets Receptacle	N (Normal)	Copper Alloy	200 °C	-65 °C	Aviation Marine Military	H	100	5 A	Gold	Bulkhead Front Side Nut			23	35
Amphenol Aerospace Operations D38999/24FH55PNL
Amphenol Aerospace Operations D38999/24FH53HA			Metal	Threaded	Crimp	100 µin	Electroless Nickel	Aluminum				Shielded	Silver	Panel Mount	Male Pins Receptacle	A	Copper Alloy	200 °C	-65 °C	Aviation Marine Military	H	53		Gold	Bulkhead Front Side Nut	Military	MIL-DTL-38999 Series III	23	53							Environment Resistant
