LPAF Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS .050" LP ARRAY(TM) HIGH-SPEED HIGH-DENSITY LOW PROFILE OPEN-PIN-FIELD ARRAY

Part	Height Above Board	Features	Pitch	Number of Positions	Mated Stacking Height Options	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Rows	Connector Type
Samtec Inc. LPAF-30-03.5-S-04-2-K-TR	0.13 in	Board Guide Pick and Place	0.05 in	120	4.5mm 5mm	30 µin	Surface Mount	Gold	4	Array Female Sockets
Samtec Inc. LPAF-30-03.0-L-08-2-K-TR	0.11 in	Board Guide Pick and Place	0.05 in	240	4.5mm 4mm	10 Ąin	Surface Mount	Gold	8	Array Female Sockets
Samtec Inc. LPAF-40-03.0-L-08-1-K-TR	0.11 in	Board Guide Pick and Place	0.05 in	320	4.5mm 4mm	10 Ąin	Surface Mount	Gold	8	Array Female Sockets

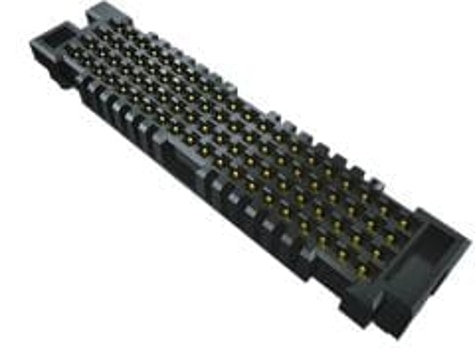

Samtec Inc. LPAF-30-03.0-L-06-1-K-TR	0.11 in	Board Guide Pick and Place	0.05 in	180	4.5mm 4mm	10 Ąin	Surface Mount	Gold	6	Array Female Sockets
Samtec Inc. LPAF-40-03.5-S-04-2-K-TR	0.13 in	Board Guide Pick and Place	0.05 in	160	4.5mm 5mm	30 µin	Surface Mount	Gold	4	Array Female Sockets
Samtec Inc. LPAF-30-03.0-S-06-2-K-TR	0.11 in	Board Guide Pick and Place	0.05 in	180	4.5mm 4mm	30 µin	Surface Mount	Gold	6	Array Female Sockets

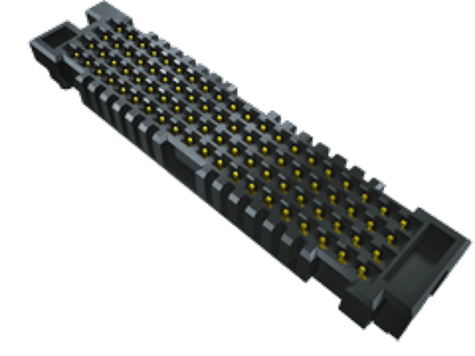

Samtec Inc. LPAF-30-03.5-S-06-2-K-TR	0.13 in	Board Guide Pick and Place	0.05 in	180	4.5mm 5mm	30 µin	Surface Mount	Gold	6	Array Female Sockets
Samtec Inc. LPAF-10-03.0-S-06-2-K-TR	0.11 in	Board Guide Pick and Place	0.05 in	60	4.5mm 4mm	30 µin	Surface Mount	Gold	6	Array Female Sockets

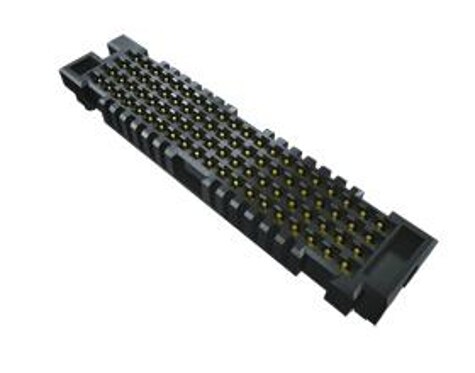

Samtec Inc. LPAF-50-03.0-S-08-1-K-TR	0.11 in	Board Guide Pick and Place	0.05 in	400	4.5mm 4mm	30 µin	Surface Mount	Gold	8	Array Female Sockets
Samtec Inc. LPAF-40-03.5-L-04-2-K-TR	0.13 in	Board Guide Pick and Place	0.05 in	160	4.5mm 5mm	10 Ąin	Surface Mount	Gold	4	Array Female Sockets
