MIC2297 Series
Manufacturer: Microchip Technology
Beta
⌘K
IC LED DRIVER RGLTR DIM 10MLF
| Part | Current - Output / Channel | Number of Outputs | Internal Switch(s) | Dimming | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply (Min) | Type | Frequency | Package Width | Package Name | Package Length | Mounting Type | Topology | Package / Case | Voltage - Supply (Max) | Supplied Contents | Total Output Count | Output Type | Non-Isolated Output Count | Contents | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Utilized IC / Part | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 1.2 A | 1 | Yes | PWM | 125 °C | -40 °C | 2.5 V | DC DC Regulator | 600 kHz | 3 mm | 10-MLF® | 3 mm | Surface Mount | Step-Up (Boost) | 10-MLF® 10-VFDFN Exposed Pad | 10 V | |||||||||
 Microchip Technology | 1.2 A | 1 | Yes | PWM | 125 °C | -40 °C | 2.5 V | DC DC Regulator | 600 kHz | 3 mm | 10-MLF® | 3 mm | Surface Mount | Step-Up (Boost) | 10-MLF® 10-VFDFN Exposed Pad | 10 V | |||||||||

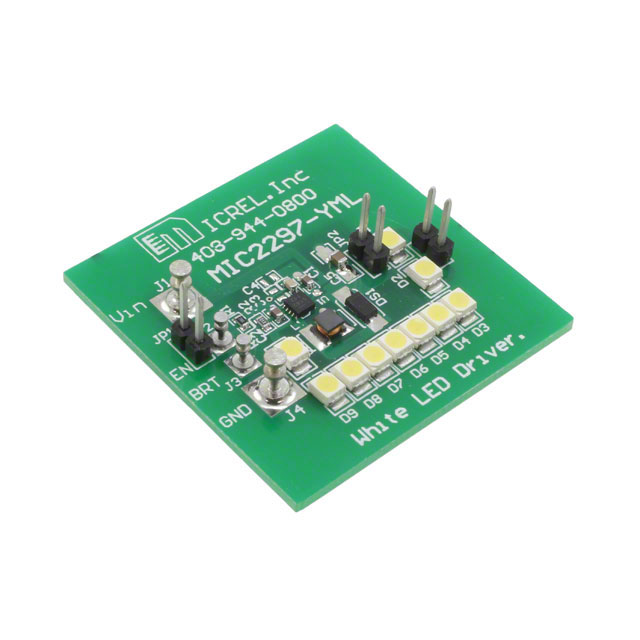

 Microchip Technology | 20 mA | Board(s) | 1 | Non-Isolated | 1 count | Board | 10 V | 2.5 V | MIC2297 | 42 V |
