TC1055 Series

Catalog

100MA HIGH ACCURACY CMOS LDO W/ SHUTDOWN AND ERROR OUTPUT

Part	Number of Regulators	Control Features	Current - Output	Output Configuration	Package Name	Output Type	Voltage - Input (Max)	Protection Features	PSRR	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Voltage Dropout (Max)
Microchip Technology TC1055-3.3VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	3.3 V	80 µA	0.25 V
Microchip Technology TC1055-3.0VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	3 V	80 µA	0.25 V
Microchip Technology TC1055-3.6VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	3.6 V	80 µA	0.25 V
Microchip Technology TC1055-2.8VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	2.8 V	80 µA	0.25 V
Microchip Technology TC1055-2.5VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	2.5 V	80 µA	0.25 V
Microchip Technology TC1055-1.8VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	1.8 V	80 µA	0.25 V
Microchip Technology TC1055-2.7VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	2.7 V	80 µA	0.25 V

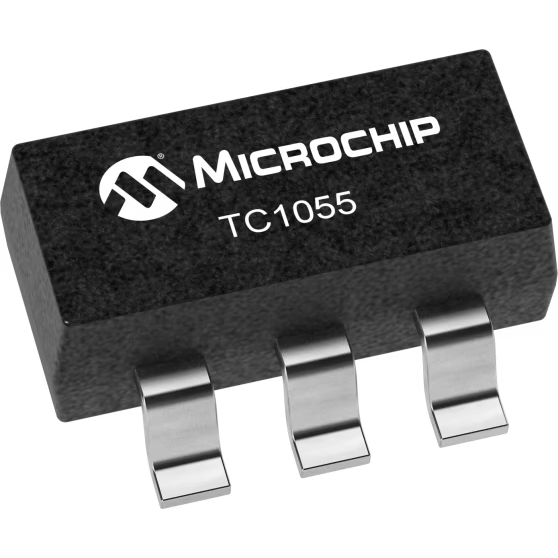

Microchip Technology TC1055-5.0VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	5 V	80 µA	0.25 V
Microchip Technology TC1055-4.0VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	4 V	80 µA	0.25 V
Microchip Technology TC1055-2.6VCT713	1	Enable	100 mA	Positive	SOT-23-5	Fixed	6.5 V	Over Current Over Temperature	64 dB	125 °C	-40 °C	Surface Mount	2.6 V	80 µA	0.25 V
