2825261 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

POWER CONN, PLUG, 12POS, 2ROW, 4.2MM ROHS COMPLIANT: YES

Part	Mounting Type	Current Rating	Shrouding	Number of Positions Loaded	Insulation Height	Contact Material	Style	Pitch - Mating	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Shape	Insulation Material	Row Spacing - Mating	Contact Length - Post	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Connector Type	Number of Positions	Fastening Type	Features	Termination	Voltage Rating	Insulation Color	Material Flammability Rating	Applications
TE Connectivity AMP Connectors 1-2825261-2	Through Hole	13 A	Shrouded - 4 Wall	All	0.504 in	Copper Alloy	Board Cable/Wire	0.165 in	Male Pin	-40 °C	105 °C	Square	Nylon Polyamide (PA)	0.165 in	0.138 in	Tin	Tin	2	Header	12	Locking Ramp	Board Lock	Solder	600 V	Natural	UL94 V-0	Automotive General Purpose Industrial Lighting Medical
TE Connectivity AMP Connectors 2825261-8	Through Hole	13 A	Shrouded - 4 Wall	All	0.504 in	Copper Alloy	Board Cable/Wire	0.165 in	Male Pin	-40 °C	105 °C	Square	Nylon Polyamide (PA)	0.165 in	0.138 in	Tin	Tin	2	Header	8	Locking Ramp	Board Lock	Solder	600 V	Natural	UL94 V-0	Automotive General Purpose Industrial Lighting Medical

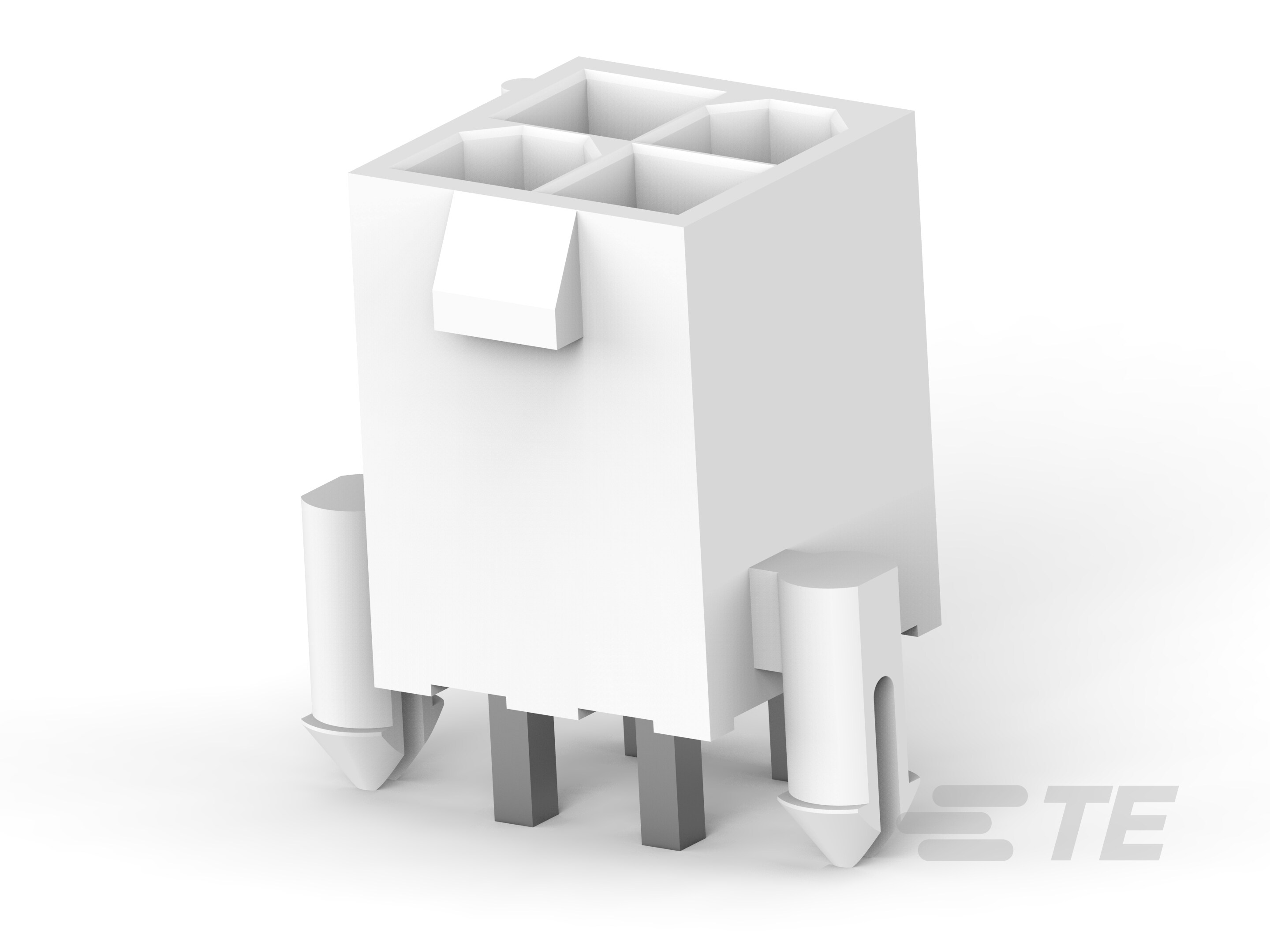

TE Connectivity AMP Connectors 2825261-4	Through Hole	13 A	Shrouded - 4 Wall	All	0.504 in	Copper Alloy	Board Cable/Wire	0.165 in	Male Pin	-40 °C	105 °C	Square	Nylon Polyamide (PA)	0.165 in	0.138 in	Tin	Tin	2	Header	4	Locking Ramp	Board Lock	Solder	600 V	Natural	UL94 V-0	Automotive General Purpose Industrial Lighting Medical
TE Connectivity AMP Connectors 2825261-6	Through Hole	13 A	Shrouded - 4 Wall	All	0.504 in	Copper Alloy	Board Cable/Wire	0.165 in	Male Pin	-40 °C	105 °C	Square	Nylon Polyamide (PA)	0.165 in	0.138 in	Tin	Tin	2	Header	6	Locking Ramp	Board Lock	Solder	600 V	Natural	UL94 V-0	Automotive General Purpose Industrial Lighting Medical
TE Connectivity AMP Connectors 2825261-2	Through Hole	13 A	Shrouded - 4 Wall	All	0.504 in	Copper Alloy	Board Cable/Wire		Male Pin	-40 °C	105 °C	Square	Nylon Polyamide (PA)	0.165 in	0.138 in	Tin	Tin	2	Header	2	Locking Ramp	Board Lock	Solder	600 V	Natural	UL94 V-0	Automotive General Purpose Industrial Lighting Medical
TE Connectivity AMP Connectors 2-2825261-4	Through Hole	13 A	Shrouded - 4 Wall	All	0.504 in	Copper Alloy	Board Cable/Wire	0.165 in	Male Pin	-40 °C	105 °C	Square	Nylon Polyamide (PA)	0.165 in	0.138 in	Tin	Tin	2	Header	24 pos	Locking Ramp	Board Lock	Solder	600 V	Natural	UL94 V-0	Automotive General Purpose Industrial Lighting Medical
TE Connectivity AMP Connectors 2-2825261-0	Through Hole	13 A	Shrouded - 4 Wall	All	0.504 in	Copper Alloy	Board Cable/Wire	0.165 in	Male Pin	-40 °C	105 °C	Square	Nylon Polyamide (PA)	0.165 in	0.138 in	Tin	Tin	2	Header	20	Locking Ramp	Board Lock	Solder	600 V	Natural	UL94 V-0	Automotive General Purpose Industrial Lighting Medical
