Power Diode Discretes-Rectifier TO-268AA
Description
AI
The discrete Standard Diode series comes with a broad variety of packages and breakdown voltages up to 1800V.
Beta
⌘K
Power Diode Discretes-Rectifier TO-268AA
Power Diode Discretes-Rectifier TO-268AA
| Part | Package / Case | Capacitance | Mounting Type | Current - Reverse Leakage | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Voltage - DC Reverse (Vr) (Max) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Package Name | Technology | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) | Diode Pair Count | Diode Configuration | Current - Average Rectified (Io) (per Diode) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

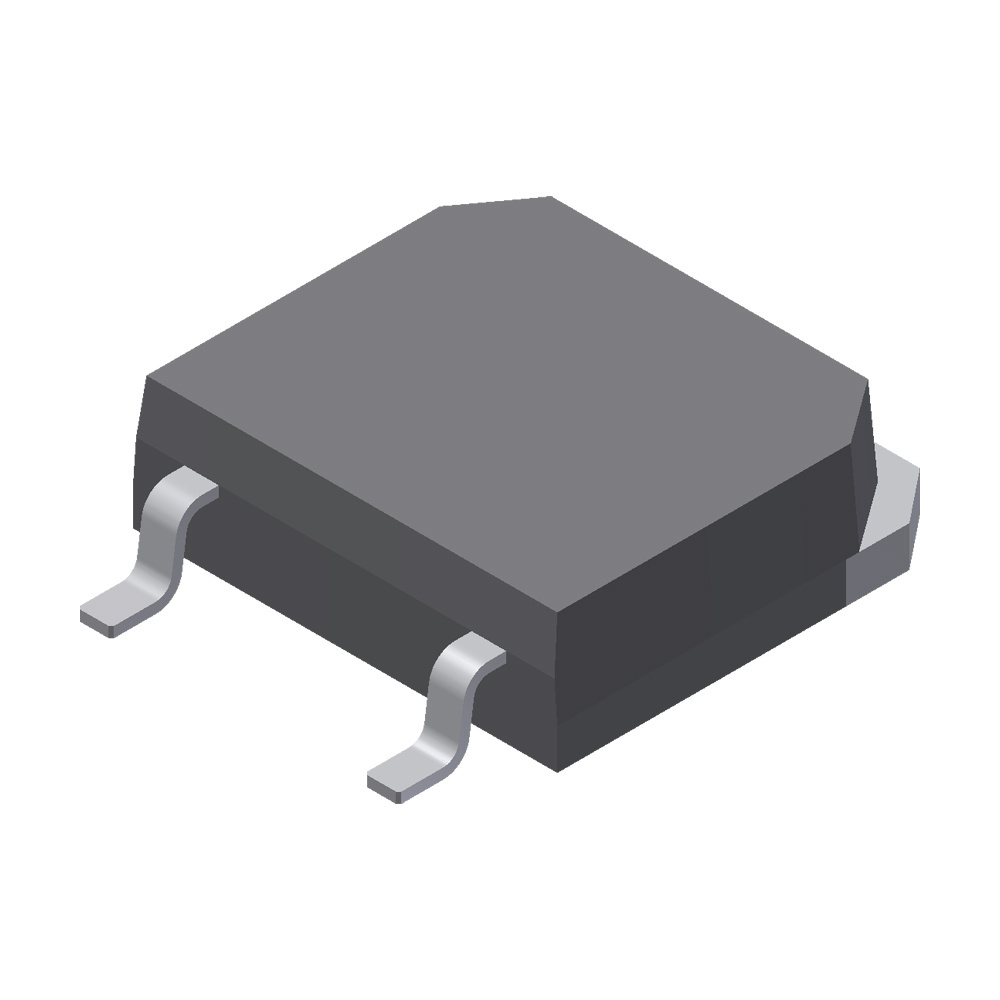

LITTELFUSE | D3PAK (2 Leads + Tab) TO-268-3 TO-268AA | 18 pF | Surface Mount | 40 µA | 175 °C | -40 °C | 1200 V | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | TO-268AA (D3Pak-HV) | Standard | 45 A | 1.26 V | |||
 LITTELFUSE | D3PAK (2 Leads + Tab) TO-268-3 TO-268AA | Surface Mount | 40 µA | 175 °C | -40 °C | 1200 V | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | TO-268AA (D3Pak-HV) | Standard | 1.26 V | 1 pair | Series Connection | 45 A |
