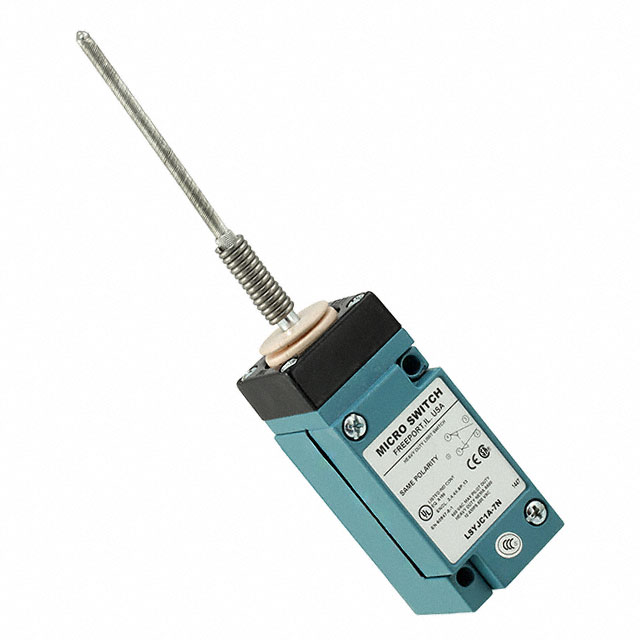

LSYJC Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
LIMIT SWITCH, SPDT, 60A, 120V ROHS COMPLIANT: YES
| Part | Termination Style | Switch Function | Circuit | Mounting Type | Voltage Rating - AC | Actuator Type | Current Rating | Voltage Rating - DC | Pretravel (Length) | Operating Temperature (Min) | Operating Temperature (Max) | Operating Force | Ingress Protection Description | Ingress Protection IP Rating | Cable Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Plug In | On-Mom | SPDT (DB/DM) | Chassis Mount | 120 V | Cable Spring | 10 A 800 mA | 115 V | 1.5 in | -12 °C | 121 °C | 198 gf | |||
 Honeywell Sensing and Productivity Solutions | Cable Leads | On-Mom | SPDT (DB/DM) | Chassis Mount | 120 V | Spring Wire | 10 A 800 mA | 115 V | 4 in | -12 °C | 60 °C | 141 gf | Dust Tight Waterproof | IP67 | |
Honeywell Sensing and Productivity Solutions | Plug In | On-Mom | DPDT (DB/DM) | Chassis Mount | 120 V | Spring Wire | 10 A 800 mA | 115 V | 4 in | -12 °C | 121 °C | 141 gf | |||
Honeywell Sensing and Productivity Solutions | Cable Leads | On-Mom | SPDT (DB/DM) | Chassis Mount | 120 V | Rod Spring | 10 A 800 mA | 115 V | 1 in | -12 °C | 105 °C | 283 gf | Dust Tight Waterproof | IP67 | 12 ' |
