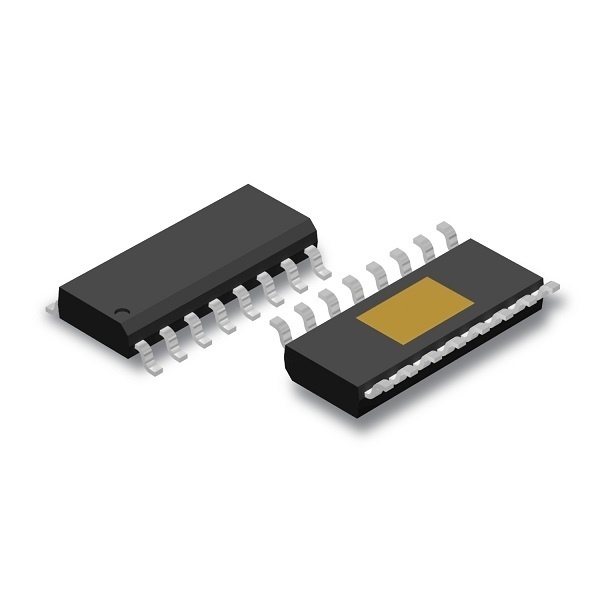

IX4352NE Series

Catalog

9A, SIC MOSFET DRIVER, 16L SOIC, NARROW

Part	Number of Drivers	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 2 Maximum)	Gate Type	Driven Configuration	Package Width	Package Features	Package Name	Package Length	Mounting Type	Logic Voltage - VIH	Logic Voltage - VIL	Operating Temperature (Max)	Operating Temperature (Min)	Channel Type	Current - Peak Output (Sink)	Current - Peak Output (Source)	Rise Time (Typ)	Fall Time (Typ)	Input Type
LITTELFUSE IX4352NE	1	13 V	-3.5 V	-10 V	25 V	IGBT SiC MOSFET	Low-Side	3.9 mm	Exposed Pad	16-SOIC 16-SOIC-EP	0.154 in	Surface Mount	2.2 V	1 V	125 °C	-40 °C	Single	9 A	9 A	10 ns	10 ns	Non-Inverting
LITTELFUSE IX4352NETR	1	13 V	-3.5 V	-10 V	25 V	IGBT SiC MOSFET	Low-Side	3.9 mm	Exposed Pad	16-SOIC 16-SOIC-EP	0.154 in	Surface Mount	2.2 V	1 V	125 °C	-40 °C	Single	9 A	9 A	10 ns	10 ns	Non-Inverting
LITTELFUSE IX4352NE	1	13 V	-3.5 V	-10 V	25 V	IGBT SiC MOSFET	Low-Side	3.9 mm	Exposed Pad	16-SOIC 16-SOIC-EP	0.154 in	Surface Mount	2.2 V	1 V	125 °C	-40 °C	Single	9 A	9 A	10 ns	10 ns	Non-Inverting
LITTELFUSE IX4352NETR	1	13 V	-3.5 V	-10 V	25 V	IGBT SiC MOSFET	Low-Side	3.9 mm	Exposed Pad	16-SOIC 16-SOIC-EP	0.154 in	Surface Mount	2.2 V	1 V	125 °C	-40 °C	Single	9 A	9 A	10 ns	10 ns	Non-Inverting
