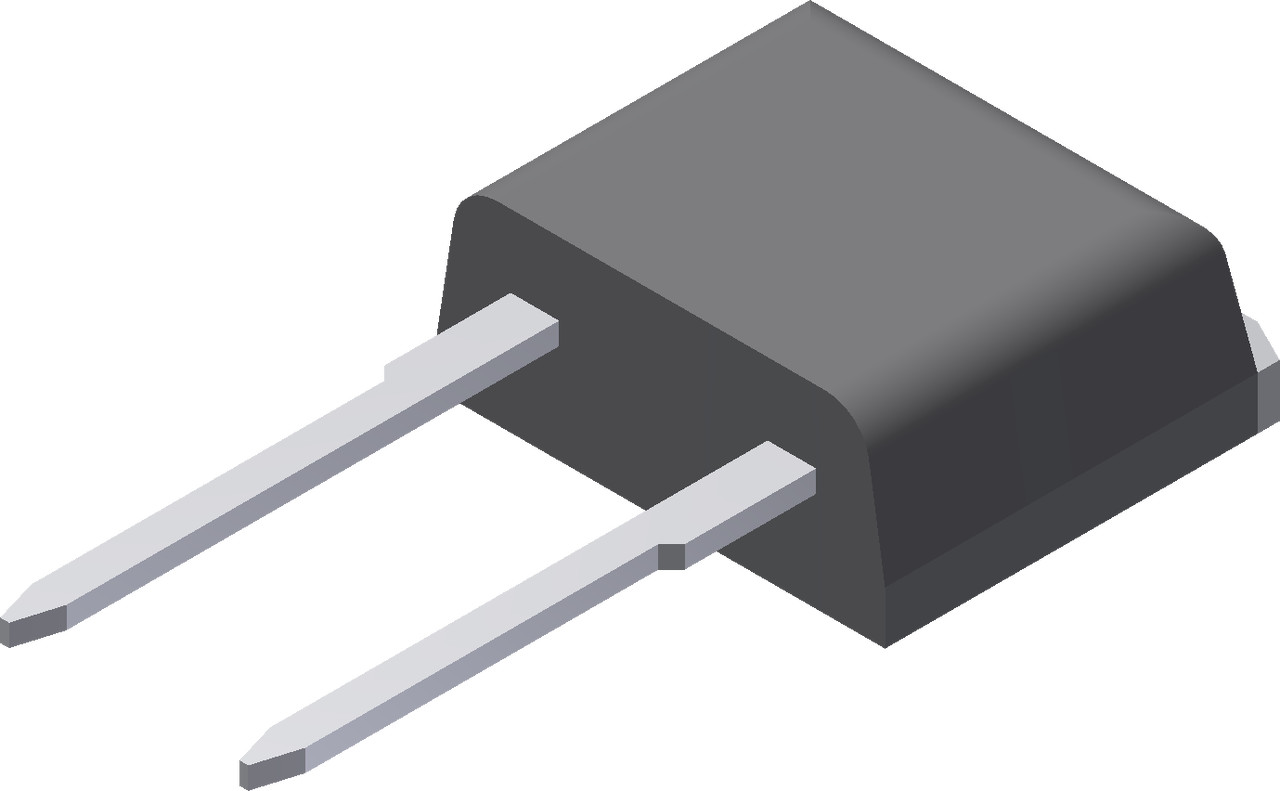

Power Diode Discretes-Rectifier TO262M
Description
AI
The discrete High Voltage Diode series comes with a broad variety of packages and breakdown voltages of 2200V.
Beta
⌘K
Power Diode Discretes-Rectifier TO262M
Power Diode Discretes-Rectifier TO262M
| Part | Capacitance | Mounting Type | Current - Reverse Leakage | Package Name | Package / Case | Current - Average Rectified (Io) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Technology | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time | Voltage - Forward (Vf) (Max) | Voltage - DC Reverse (Vr) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 7 pF | Through Hole | 40 µA | TO-262 (I2PAK) | I2PAK TO-262-2 | 30 A | 175 °C | -55 °C | Standard | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns | 1.26 V | 2200 V |
