640311 Series

Catalog

MINI AMP-IN 22-18 AWG POST TIN PLTD

Part	Contact Material	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Insulation Diameter (Max)	Insulation Diameter (Min)	Length - Overall	Contact Finish	Hole Diameter (Maximum)	Hole Diameter (Minimum)
TE Connectivity AMP Connectors 640311-5	Phosphor Bronze	Locking Through Board	18 AWG	22 AWG	0.11 in	0.06 in	0.26 in	Tin	0.077 in	0.072 in
TE Connectivity AMP Connectors 640311-1	Phosphor Bronze	Locking Through Board	18 AWG	22 AWG	0.11 in	0.06 in	0.26 in	Tin-Lead	0.077 in	0.072 in

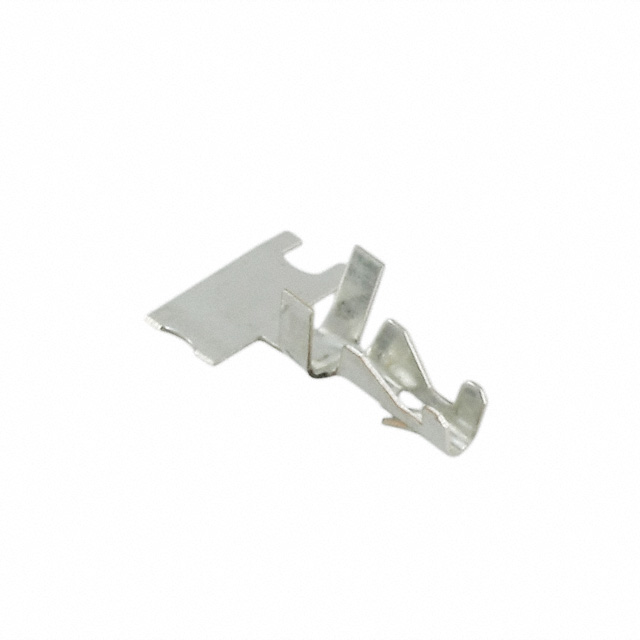

TE Connectivity AMP Connectors 3-640311-1	Phosphor Bronze	Locking Through Board	18 AWG	22 AWG	0.11 in	0.06 in	0.26 in	Tin	0.077 in	0.072 in
