5221221 Series

Catalog

CONN BNC JACK STR 75 OHM CRIMP

Part	Operating Temperature (Max)	Operating Temperature (Min)	Includes Total Count	Includes	Body Finish	Insertion Loss	Center Contact Plating	Dielectric Material	Voltage Rating	Mating Cycles	Body Material	Mounting Feature	Cable Group	Impedance	Housing Color	Center Contact Material	Contact Termination	Number of Ports	Connector Style	Frequency - Max	Connector Type	Fastening Type	Shield Termination	Mounting Type
TE Connectivity AMP Connectors 5221221-1	85 °C	-65 °C	6 pcs	Connector Contact Ferrule Gasket Lockwasher Nut	Nickel	0.15 dB	Gold	Polyethylene (PE)	500 V	500 cycles	Brass	Bulkhead Front Side Nut	Belden 9248	75 Ohm	Silver	Beryllium Copper	Crimp	1	BNC	2 GHz	Female Socket Jack	Bayonet Lock	Crimp	Panel Mount
TE Connectivity AMP Connectors 5221221-7	85 °C	-65 °C	6 pcs	Connector Contact Ferrule Gasket Lockwasher Nut	Nickel	0.15 dB	Gold	Polyethylene (PE)	500 V	500 cycles	Zinc	Bulkhead Front Side Nut	9259 9266 Belden 9240	75 Ohm	Silver	Beryllium Copper	Crimp	1	BNC	2 GHz	Female Socket Jack	Bayonet Lock	Crimp	Panel Mount

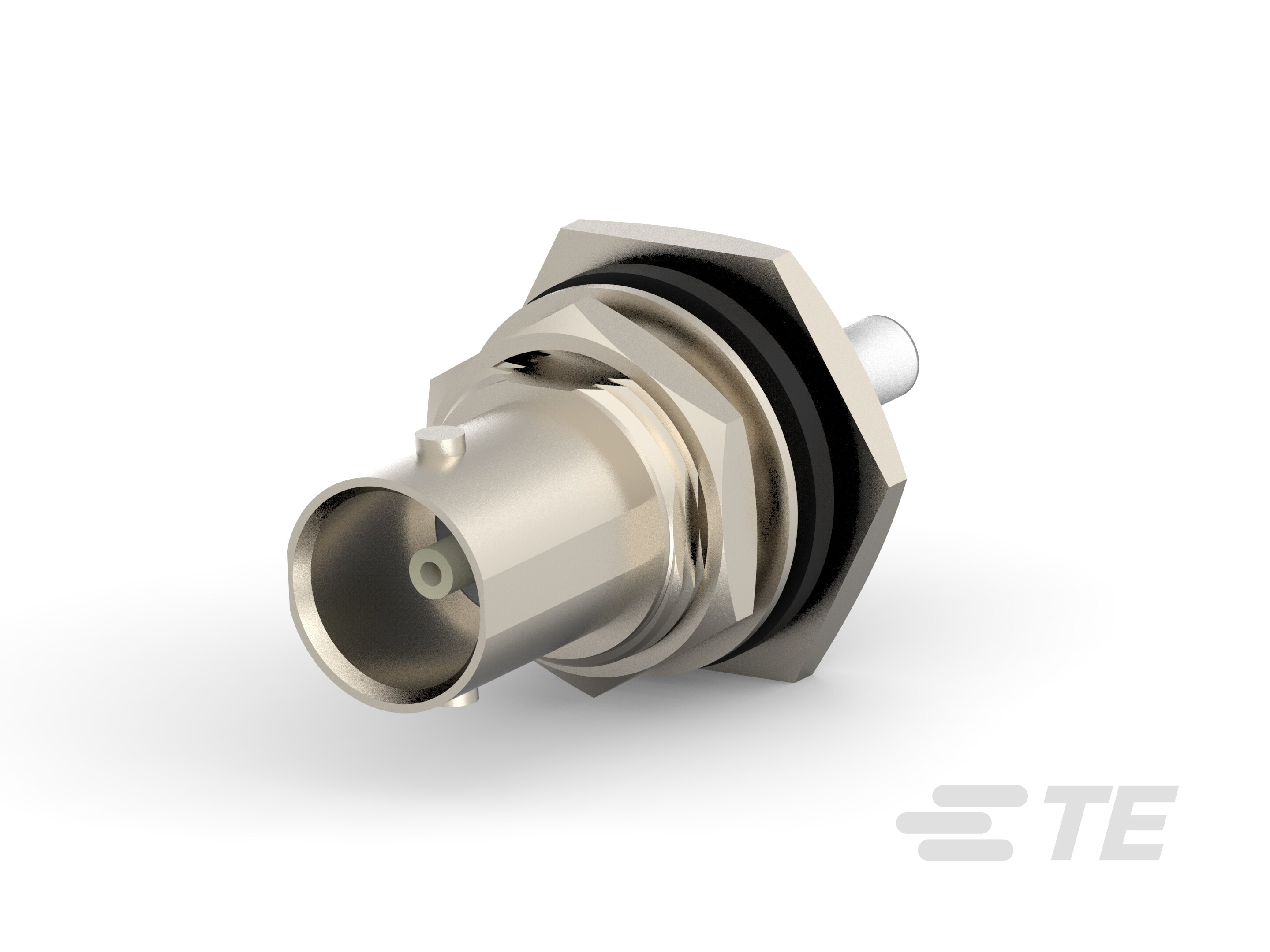

TE Connectivity AMP Connectors 5221221-5	85 °C	-65 °C	7 pcs	Connector Contact Ferrule Gasket Lockwasher Nut Sleeve	Nickel	0.15 dB	Gold	Polyethylene (PE)	500 V	500 cycles	Zinc	Bulkhead Front Side Nut	179A 179B 187 187A RG-179	75 Ohm	Silver	Beryllium Copper	Crimp	1	BNC	2 GHz	Female Socket Jack	Bayonet Lock	Crimp	Panel Mount
