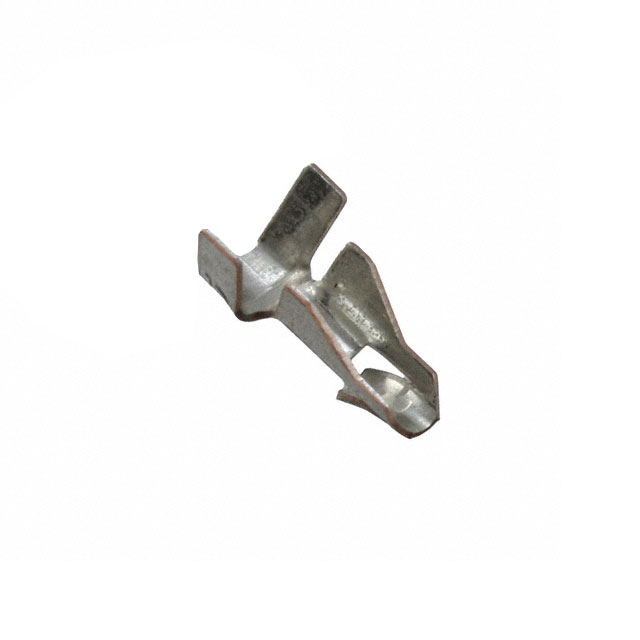

350566 Series

Catalog

MINI AMP-IN 22-18 AWG POST TIN PLTD

Part	Contact Finish	Hole Diameter (Maximum)	Hole Diameter (Minimum)	Length - Overall	Insulation Diameter (Min)	Insulation Diameter (Max)	Terminal Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Material
TE Connectivity AMP Connectors 350566-7	Tin	0.077 in	0.072 in	0.25 in	0.06 in	0.11 in	Locking Through Board	18 AWG	22 AWG	Brass
TE Connectivity AMP Connectors 350566-3	Tin	0.077 in	0.072 in	0.25 in	0.06 in	0.11 in	Locking Through Board	18 AWG	22 AWG	Brass

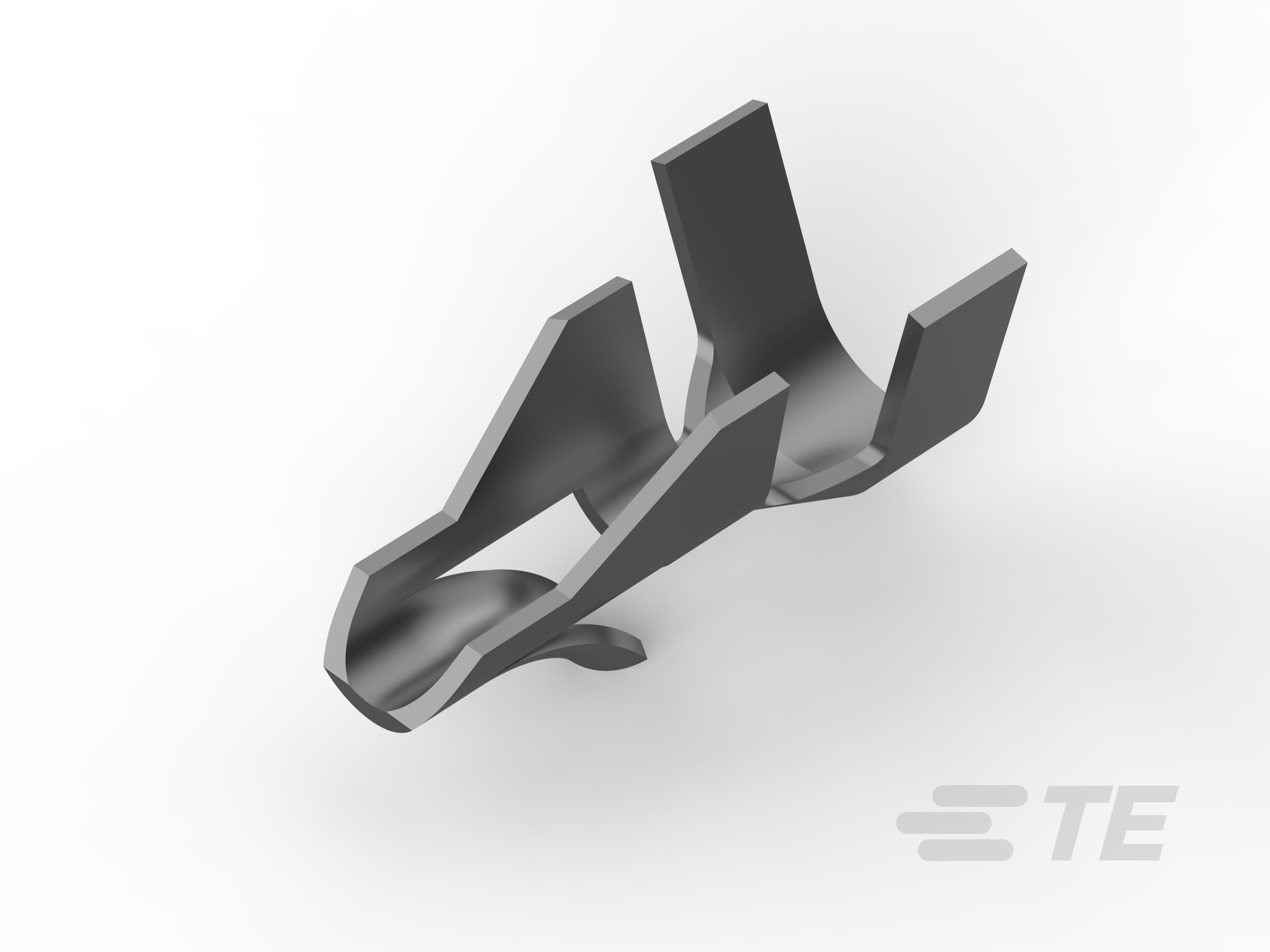

TE Connectivity AMP Connectors 3-350566-1	Tin	0.077 in	0.072 in	0.25 in	0.06 in	0.11 in	Locking Through Board	18 AWG	22 AWG	Phosphor Bronze
TE Connectivity AMP Connectors 350566-5	Tin	0.077 in	0.072 in	0.25 in	0.06 in	0.11 in	Locking Through Board	18 AWG	22 AWG	Brass
TE Connectivity AMP Connectors 350566-1	Tin-Lead	0.077 in	0.072 in	0.25 in	0.06 in	0.11 in	Locking Through Board	18 AWG	22 AWG	Phosphor Bronze
TE Connectivity AMP Connectors 350566-7	Tin	0.077 in	0.072 in	0.25 in	0.06 in	0.11 in	Locking Through Board	18 AWG	22 AWG	Brass
