204532 Series

Manufacturer: Molex

Catalog

MICRO-LOCK PLUS RECEPTACLE HOUSING, 1.25MM PITCH, SINGLE ROW, WITH POSITIVE LOCK, 15 CIRCUITS, LOW-HALOGEN, BLACK

Part	Note	Contact Termination	Fastening Type	Contact Type	Connector Type	Pitch	Number of Positions	Color	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Insulation Material	Mounting Type
Molex 2045321501	Contacts Not Included	Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	15	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
Molex 2045320901		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	9	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)

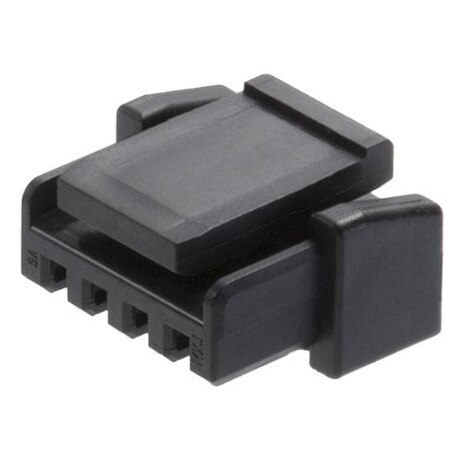

Molex 2045321001		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	10	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)

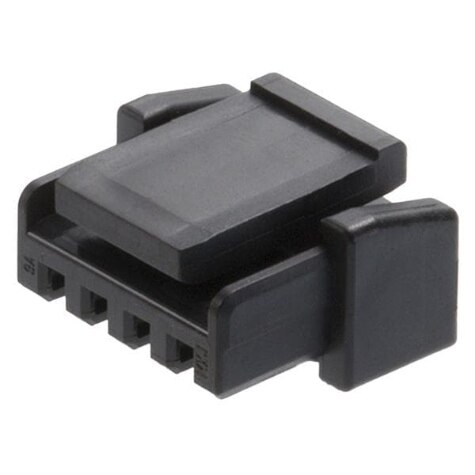

Molex 2045320301		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	3	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
Molex 2045320801		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	8	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
Molex 2045321601		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	16	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
Molex 2045320601		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	6	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
Molex 2045321101	Contacts Not Included	Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	10	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
Molex 2045320201		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	2	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
Molex 2045321301		Crimp	Latch Holder	Female Socket	Receptacle	0.049 in	13	Black	-40 °C	105 °C	1	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)
