1761679 Series

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Mounting Type	Contact Shape	Contact Length - Mating	Pitch - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish - Post	Connector Type	Termination	Number of Positions Loaded	Row Spacing - Mating	Style	Contact Finish - Mating	Number of Rows	Contact Length - Post	Material Flammability Rating	Insulation Material	Insulation Color	Fastening Type	Features	Shrouding	Contact Type	Insulation Height	Contact Material	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 2-1761679-5	Through Hole	Square	0.24 in	0.1 in	14	30 µin	Tin	Header	Solder	All	0.1 in	Board Cable/Wire	Gold	2	0.165 in	UL94 V-0	Polybutylene Terephthalate (PBT)	Blue	Push-Pull	Keying Slot	Shrouded - 4 Wall	Male Pin	0.35 in	Phosphor Bronze	100 Ąin
TE Connectivity AMP Connectors 2-1761679-3	Through Hole	Square	0.24 in	0.1 in	10	30 µin	Tin	Header	Solder	All	0.1 in	Board Cable/Wire	Gold	2	0.165 in	UL94 V-0	Polybutylene Terephthalate (PBT)	Blue	Push-Pull	Keying Slot	Shrouded - 4 Wall	Male Pin	0.35 in	Phosphor Bronze	100 Ąin
TE Connectivity AMP Connectors 2-1761679-7	Through Hole	Square	0.24 in	0.1 in	20	30 µin	Tin	Header	Solder	All	0.1 in	Board Cable/Wire	Gold	2	0.165 in	UL94 V-0	Polybutylene Terephthalate (PBT)	Blue	Push-Pull	Keying Slot	Shrouded - 4 Wall	Male Pin	0.35 in	Phosphor Bronze	100 Ąin

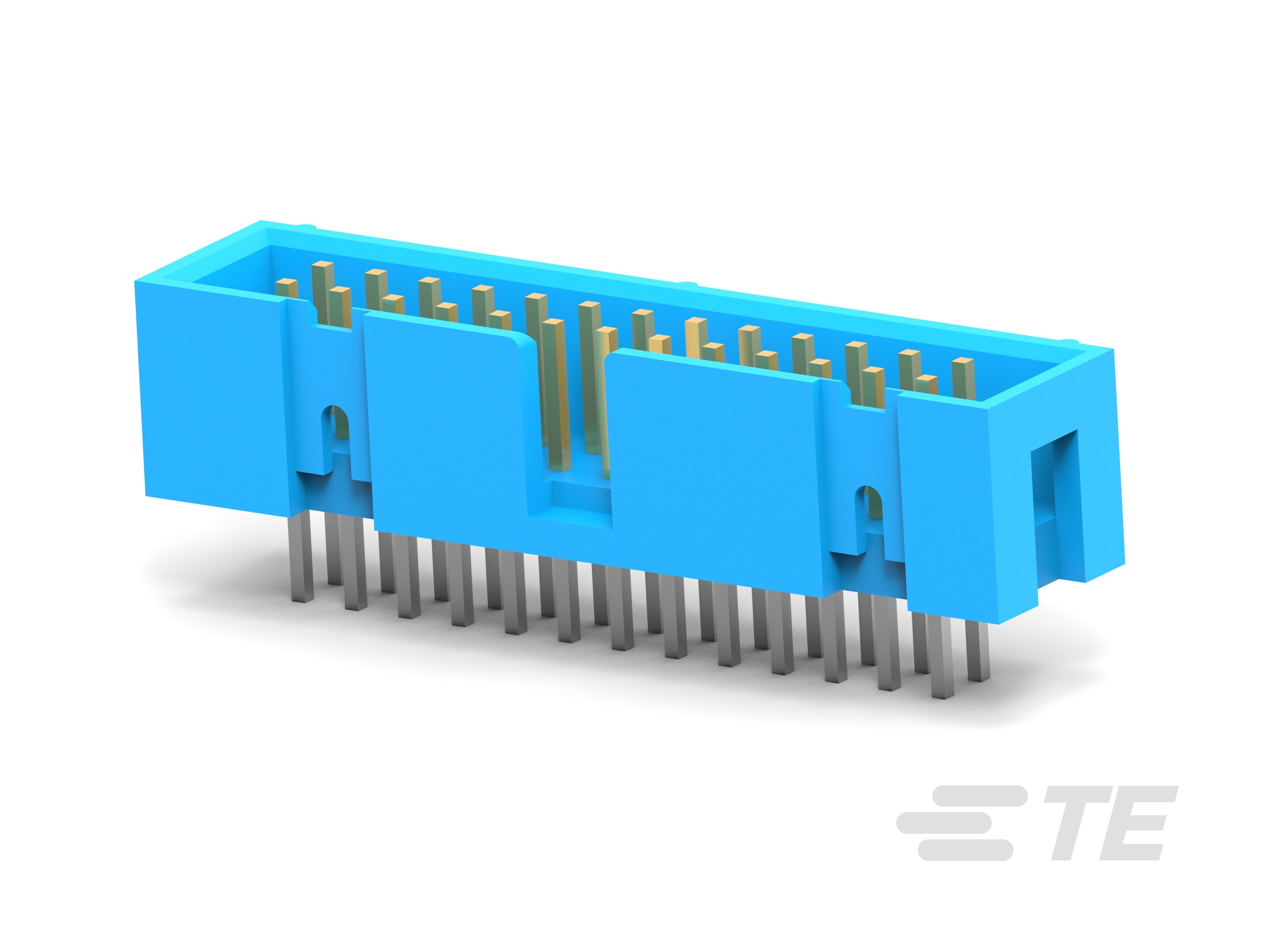

TE Connectivity AMP Connectors 2-1761679-9	Through Hole	Square	0.24 in	0.1 in	26	30 µin	Tin	Header	Solder	All	0.1 in	Board Cable/Wire	Gold	2	0.165 in	UL94 V-0	Polybutylene Terephthalate (PBT)	Blue	Push-Pull	Keying Slot	Shrouded - 4 Wall	Male Pin	0.35 in	Phosphor Bronze	100 Ąin
