3242 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RING TONGUE TERMINAL (6.7/0)AWG COPPER 70.87MM TIN LOOSE
| Part | Features | Width - Outer Edges | Termination | Insulation | Length - Overall | Stud/Tab Size | Stud/Tab Size | Mounting Type | Wire Gauge (MCM) | Contact Material | Contact Finish | Terminal Type | Insulation Diameter (Max) | Insulation Diameter (Min) | Material - Insulation | Color | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Diameter - Barrel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brazed Seam | 1.749 in | Crimp | Non-Insulated | 2.79 in | 0.625 in | 5 Stud 8 Stud | Free Hanging (In-Line) | 400 MCM | Copper | Tin | Circular | |||||||

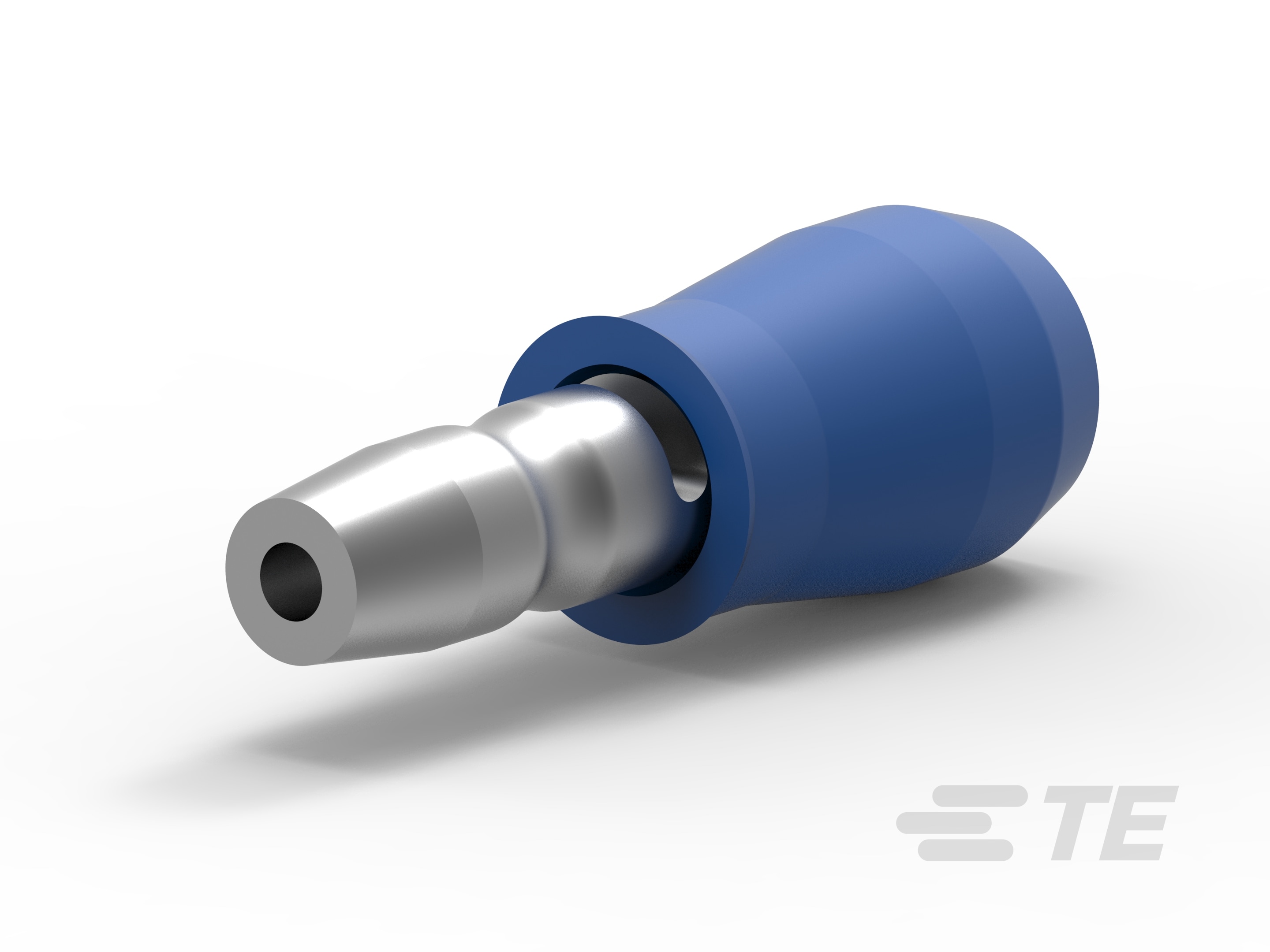

 TE Connectivity AMP Connectors | Crimp | Non-Mating End Insulated | 0.79 in | Copper | Tin | Male Pin (Plug) | 0.17 in | 0.115 in | Nylon PA Polyamide | Blue | 16 AWG | 14 AWG | 0.161 in |
