6450551 Series

Catalog

CONN RCPT MULTI-BEAM 21POS PCB

Part	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Connector Style	Number of Positions	Mounting Type	Signal Contacts (Typical)	Power Contacts (Typical)	Features	Number of Positions Loaded	Connector Type	Color	Termination	Contact Finish Thickness	Contact Finish	Number of Rows	Pitch

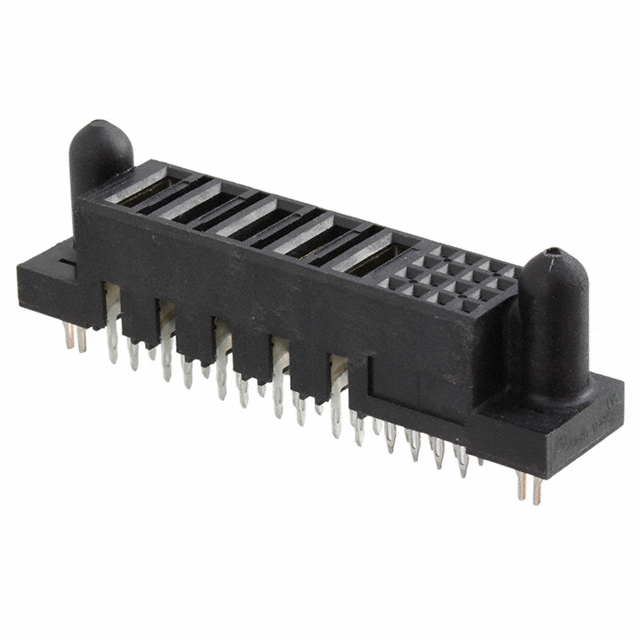

TE Connectivity AMP Connectors 6450551-9	UL94 V-0	-20 °C	105 °C	Multi-Beam	21	Through Hole	16	5	Board Lock Guide Pin	All	Blade Sockets Female Sockets Receptacle	Black	Press-Fit	30 µin	Gold	4
TE Connectivity AMP Connectors 6450551-7	UL94 V-0			Multi-Beam	30	Through Hole	24	6	Board Lock Guide Pin	All	Blade Sockets Female Sockets Receptacle	Black	Press-Fit		Gold	4	0.1 in
TE Connectivity AMP Connectors 6450551-6	UL94 V-0	-20 °C	105 °C	Multi-Beam	34	Through Hole	24	10	Board Lock Guide Pin	All	Blade Sockets Female Sockets Receptacle	Black	Press-Fit	30 µin	Gold	4	0.1 in
TE Connectivity AMP Connectors 6450551-1	UL94 V-0	-20 °C	105 °C	Multi-Beam	30	Through Hole	24	6	Board Lock Guide Pin	All	Blade Sockets Female Sockets Receptacle	Black	Press-Fit	30 µin	Gold	4	0.1 in
TE Connectivity AMP Connectors 6450551-4	UL94 V-0	-20 °C	105 °C	Multi-Beam	36	Through Hole	24	12	Board Lock Guide Pin	All	Blade Sockets Female Sockets Receptacle	Black	Press-Fit	30 µin	Gold	4	0.1 in

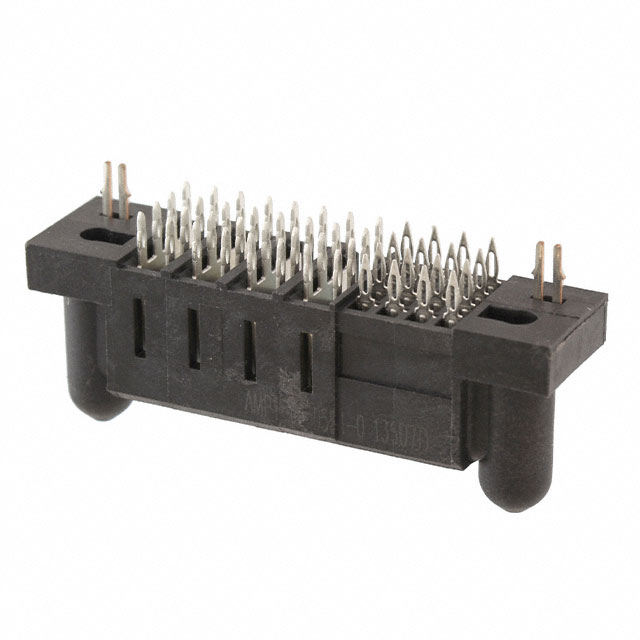

TE Connectivity AMP Connectors 1-6450551-0	UL94 V-0	-20 °C	105 °C	Multi-Beam	20	Through Hole	16	4	Board Lock Guide Pin	All	Blade Sockets Female Sockets Receptacle	Black	Press-Fit	30 µin	Gold	4
