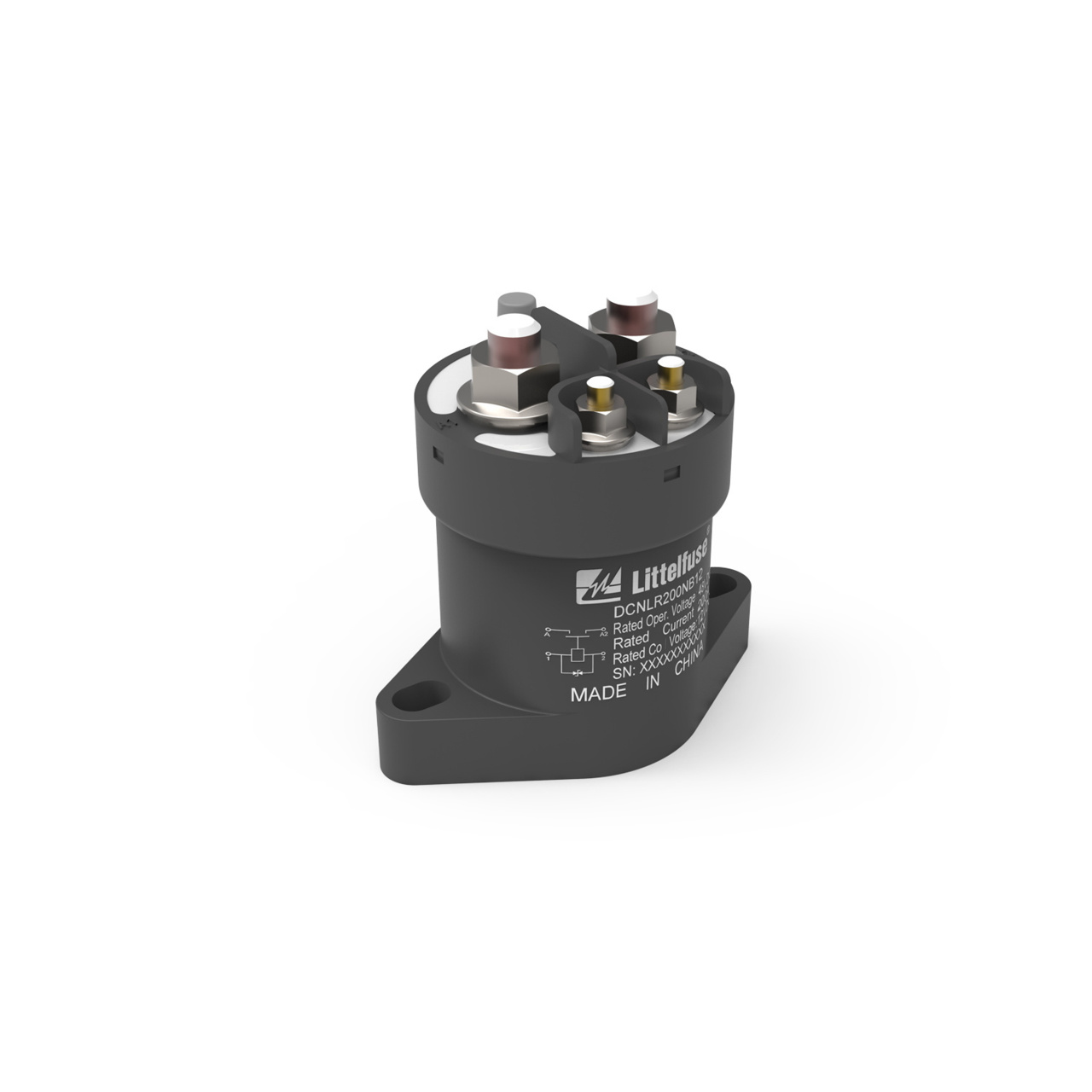

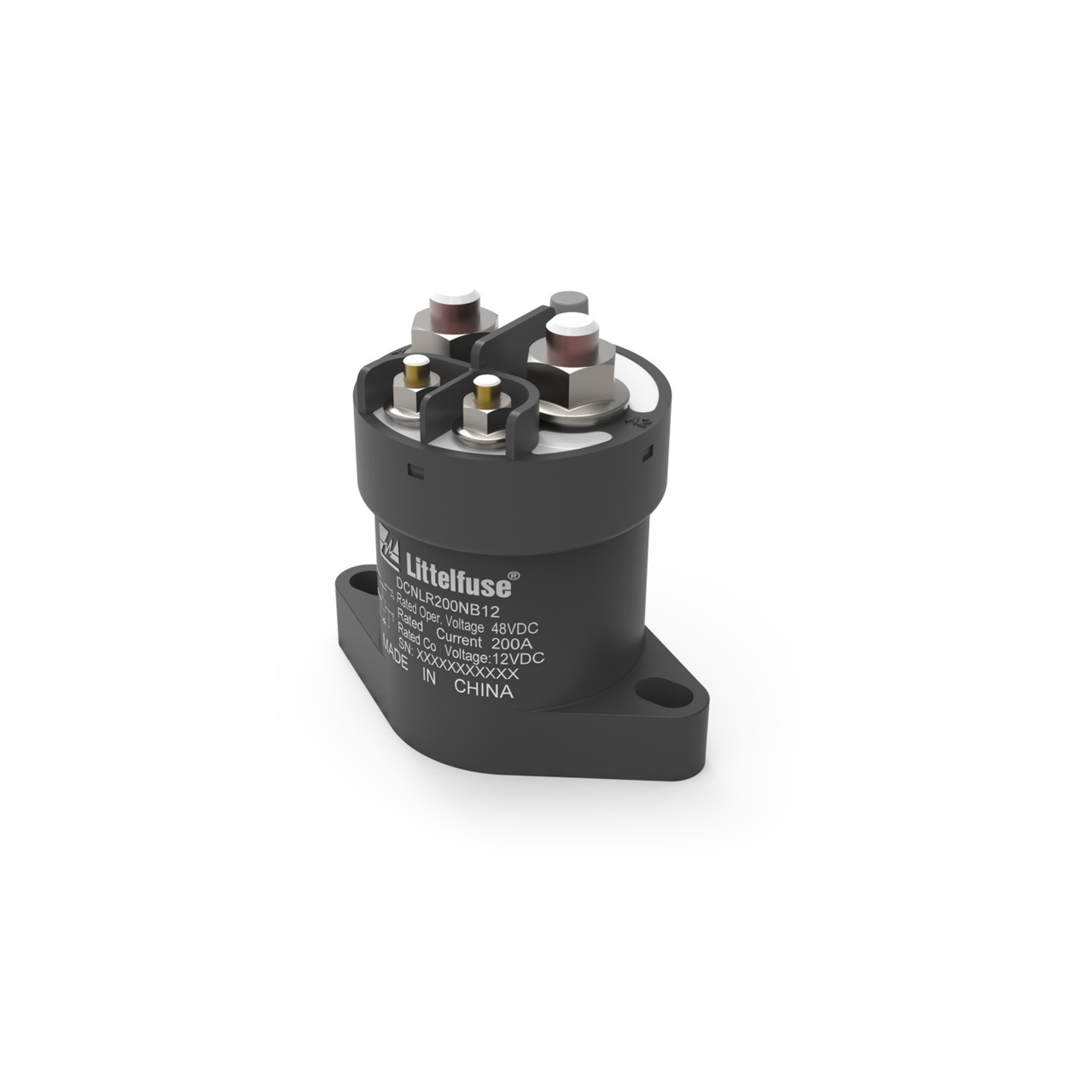

DCNLR200NB12 Series

DCNLR 200A 48V NP 12Vcoil

Catalog

DCNLR 200A 48V NP 12Vcoil

Part	Coil Voltage	Must Release Voltage	Termination Style	Form A Count	Contact Form	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Must Operate Voltage	Contact Rating (Current)	Switching Voltage DC (Max)
LITTELFUSE DCNLR200NB12	12 VAC	1 VDC	Stud	1	SPST-NO	Chassis Mount	-40 °C	85 °C	9 VDC	200 A	60 VDC

Catalog

DCNLR 200A 48V NP 12Vcoil

Description

Ideal for safely disconnecting DC energy sources in applications that require continuous run time, the DCNLR Series 60V DC Max 200A Contactor Relay with a 12V Coil features thermoplastic housing and an IP67 rating for protection against water and dust common in harsh environmental conditions.The remote-operated contactor has a space-saving design and can be easily installed in any orientation, making it simple to incorporate into battery electric vehicles (BEV), hybrid electric vehicles (HEV), material handling equipment, telecom power supplies, battery energy storage systems, construction machinery, heavy-duty trucks, buses, and more.This model of the DCNLR Series contactor (DCNLR200NB12) has a 200A continuous current rating and a 12V coil.
