PIC12F519 Series

Catalog

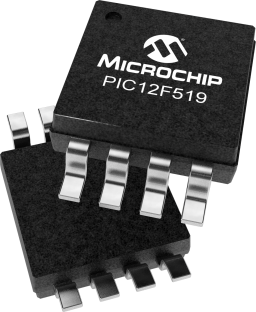

1.5KB FLASH PROGRAM, 64B FLASH DATA, 8MHZ INTERNAL OSCILLATOR 8 MSOP 3X3MM TUBE ROHS COMPLIANT: YES

Part	Program Memory Type	Core Size (Bit Width)	Number of I/O	Core Processor	Operating Temperature (Max)	Operating Temperature (Min)	Oscillator Type	Program Memory Size	Program Memory Width	Program Memory Depth	Package Name	Peripherals	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	RAM Size Width	RAM Size Depth	Mounting Type	Package Width	Package Length	Speed	Package / Case
Microchip Technology PIC12F519-E/MS	FLASH	8 Bit	5	PIC	125 °C	-40 °C	Internal	1.5 KB	12	1 K	8-MSOP 8-TSSOP 8-MSOP	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3 mm	0.118 in	8 MHz
Microchip Technology PIC12F519T-I/MC	FLASH	8 Bit	5	PIC	85 °C	-40 °C	Internal	1.5 KB	12	1 K	8-DFN	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3 mm	2 mm	8 MHz	8-VFDFN Exposed Pad
Microchip Technology PIC12F519-I/SN	FLASH	8 Bit	5	PIC	85 °C	-40 °C	Internal	1.5 KB	12	1 K	8-SOIC	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3.9 mm	0.154 in	8 MHz
Microchip Technology PIC12F519-E/P	FLASH	8 Bit	5	PIC	125 °C	-40 °C	Internal	1.5 KB	12	1 K	8-DIP 8-PDIP	POR WDT	5.5 V	2 V	8 bit	41	Through Hole	7.62 mm	0.3 in	8 MHz
Microchip Technology PIC12F519-I/P	FLASH	8 Bit	5	PIC	85 °C	-40 °C	Internal	1.5 KB	12	1 K	8-DIP 8-PDIP	POR WDT	5.5 V	2 V	8 bit	41	Through Hole	7.62 mm	0.3 in	8 MHz
Microchip Technology PIC12F519T-I/MS	FLASH	8 Bit	5	PIC	85 °C	-40 °C	Internal	1.5 KB	12	1 K	8-MSOP 8-TSSOP 8-MSOP	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3 mm	0.118 in	8 MHz
Microchip Technology PIC12F519-I/MC	FLASH	8 Bit	5	PIC	85 °C	-40 °C	Internal	1.5 KB	12	1 K	8-DFN	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3 mm	2 mm	8 MHz	8-VFDFN Exposed Pad
Microchip Technology PIC12F519-I/MS	FLASH	8 Bit	5	PIC	85 °C	-40 °C	Internal	1.5 KB	12	1 K	8-MSOP 8-TSSOP 8-MSOP	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3 mm	0.118 in	8 MHz
Microchip Technology PIC12F519-E/MC	FLASH	8 Bit	5	PIC	125 °C	-40 °C	Internal	1.5 KB	12	1 K	8-DFN	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3 mm	2 mm	8 MHz	8-VFDFN Exposed Pad
Microchip Technology PIC12F519-E/SN	FLASH	8 Bit	5	PIC	125 °C	-40 °C	Internal	1.5 KB	12	1 K	8-SOIC	POR WDT	5.5 V	2 V	8 bit	41	Surface Mount	3.9 mm	0.154 in	8 MHz
