74HC132 Series

Catalog

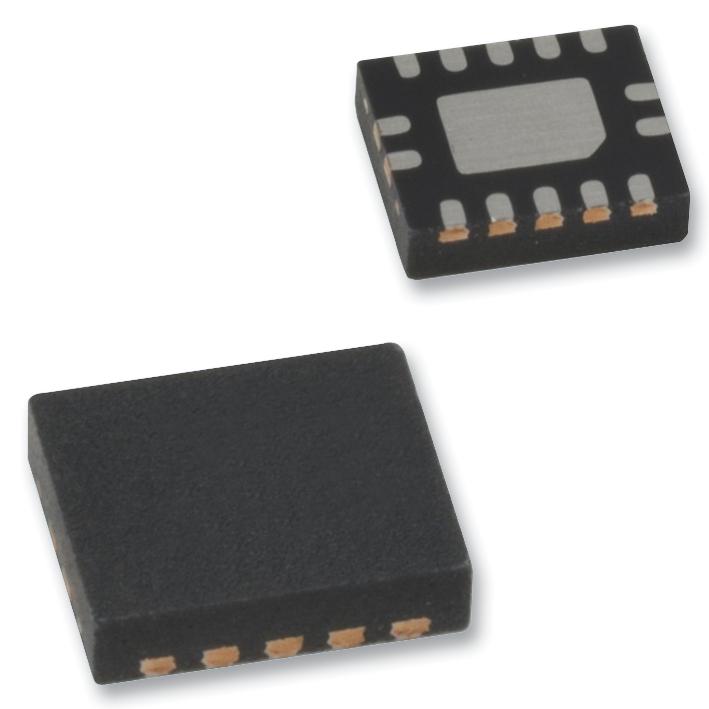

NAND SCHMITT TRIGGER, QUAD, 2 INPUT, 14 PINS, DHVQFN, 74HC132

Part	Number of Circuits	Max CL	Max Propagation Delay	Number of Inputs	Features	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Input Logic Level - Low (Max)	Input Logic Level - Low (Min)	Input Logic Level - High (Max)	Input Logic Level - High (Min)	Package Length	Package Name	Package Width	Logic Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Current - Quiescent (Max)	Mounting Type	Current - Output High	Current - Output Low	Qualification	Grade
Nexperia USA Inc. 74HC132BQX	4	50 pF	21 ns	2	Schmitt Trigger	14-VFQFN Exposed Pad	125 °C	-40 °C	3 V	1 V	4.2 V	1.5 V	2.5 mm	14-DHVQFN	3 mm	NAND Gate	2 V	6 V	2 µA	Surface Mount	5.2 mA	5.2 mA
Nexperia USA Inc. 74HC132D-Q100,118	4	50 pF	21 ns	2	Schmitt Trigger		125 °C	-40 °C	1.2 V	0.3 V	4.2 V	1.5 V	0.154 in	14-SO 14-SOIC	3.9 mm	NAND Gate	2 V	6 V	2 µA	Surface Mount	5.2 mA	5.2 mA	AEC-Q100	Automotive
Nexperia USA Inc. 74HC132BQ-Q100X	4	50 pF	21 ns	2	Schmitt Trigger	14-VFQFN Exposed Pad	125 °C	-40 °C	0.26 V	0.1 V	5.81 V	2 V	2.5 mm	14-DHVQFN	3 mm	NAND Gate	2 V	6 V	2 µA	Surface Mount	5.2 mA	5.2 mA	AEC-Q100	Automotive
