MIC2782 Series

Dual-Input Push Button Reset IC

Catalog

Dual-Input Push Button Reset IC

Part	Operating Temperature (Max)	Operating Temperature (Min)	Reset	Voltage - Threshold	Output	Reset Timeout (Typical)	Mounting Type	Package Name	Package Width	Package Length	Number of Voltages Monitored	Type	Package / Case

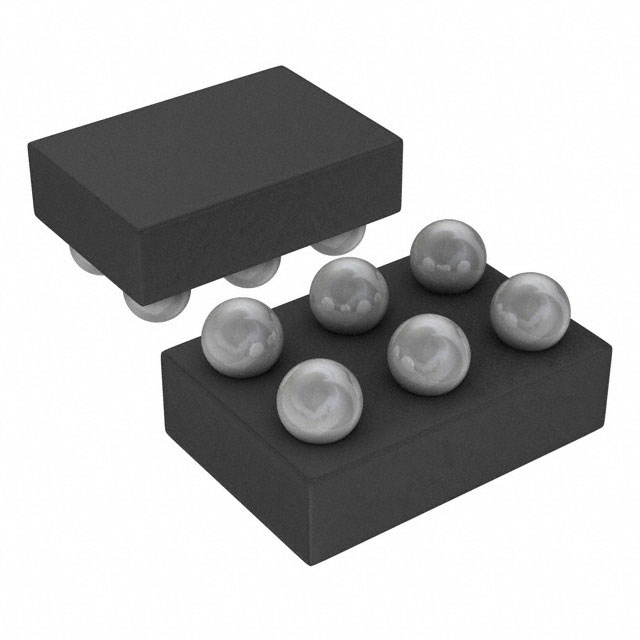

Microchip Technology MIC2782FLYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	500 ms	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP
Microchip Technology MIC2782DRYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	2 s	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP
Microchip Technology MIC2782FRYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	2 s	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP
Microchip Technology MIC2782CRYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	2 s	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP
Microchip Technology MIC2782ELYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	500 ms	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP
Microchip Technology MIC2782CLYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	500 ms	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP
Microchip Technology MIC2782EMYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	1 s	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP
Microchip Technology MIC2782DLYCS-TR	85 °C	-40 °C	Active Low	Adjustable Selectable	Open Collector Open Drain	500 ms	Surface Mount	6-WLCSP	1.2 mm	0.8 mm	2 count	Multi-Voltage Supervisor	6-UFBGA WLCSP

Catalog

Dual-Input Push Button Reset IC

Description

The MIC2782 is a two input, two output push button reset IC. It will generate a reset pulse for a factory programmed reset timeout period after both manual reset inputs have been held to a logic-low for the factory programmed setup period. The MIC2782 also has an ANDOUT logic output which will activate if both inputs are held low for longer than a debounce time (1.5ms), and deactivate if one or both inputs are released for longer than a debounce time (1.5ms). The RESET and ANDOUT outputs are active-low, open-drain NMOS outputs. The MIC2782 operates over the 1.5V to 5.5V supply voltage range, consuming 2.2µA of supply current at 3.3V. The device features 65kΩinternal pull-up resistors on both of the inputs (/MR1 and /MR2). The device offers factory programmed setup periods of 6s, 8s, 10s, or 12s and reset timeout periods of 0.5s, 1s or 2s. It is available in a space saving, 6-bump, 0.4mm pitch, 0.8mm x 1.2mm Wafer Level Chip Scale Package.
