320560 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

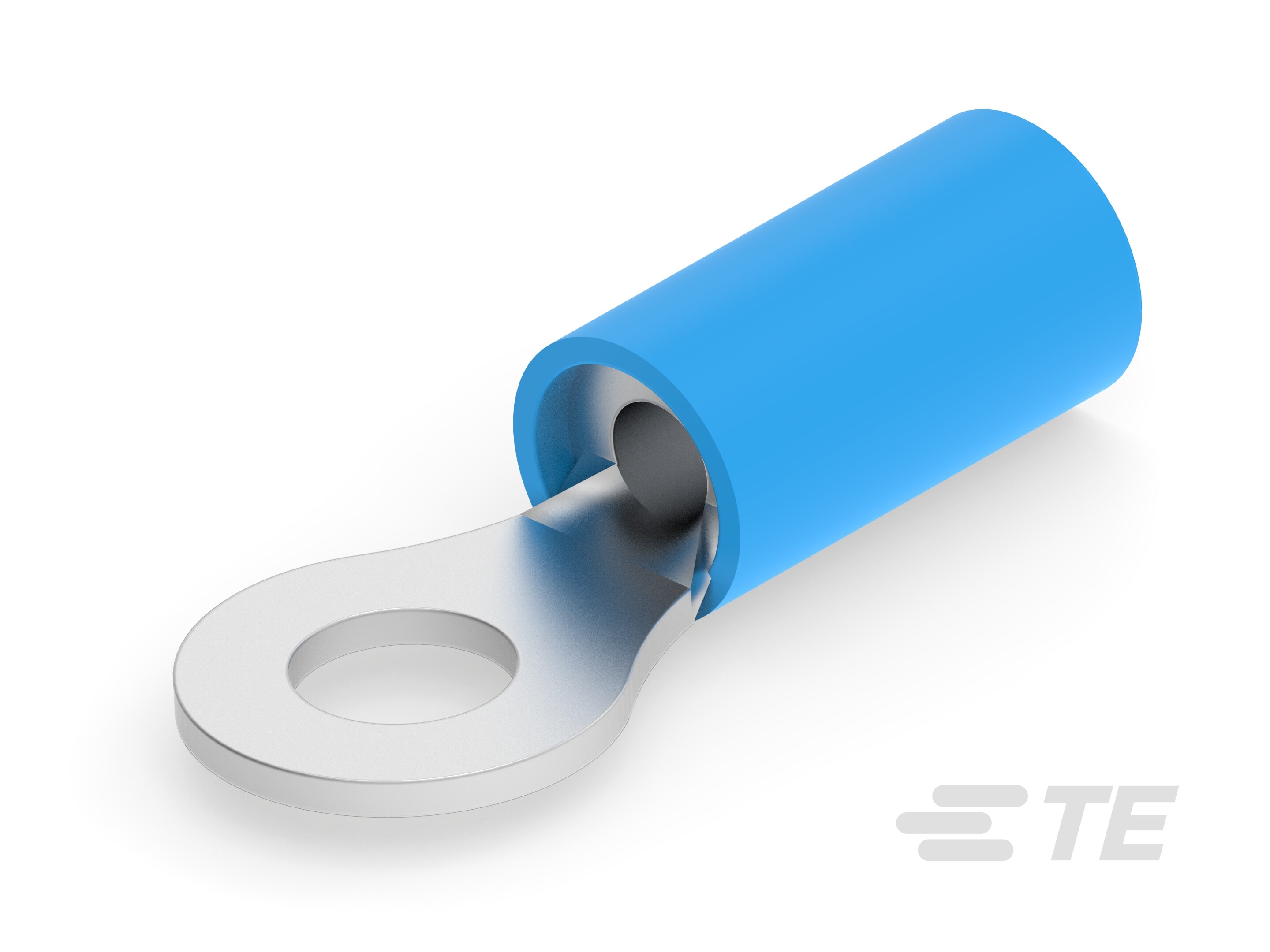

RING TONGUE TERMINAL, M4, #8, 14 AWG, 2 MM², PIDG SERIES, BLUE
| Part | Thickness | Terminal Type | Features | Length - Overall | Width - Outer Edges | Insulation | Termination | Contact Material | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Mounting Type | Contact Finish | Color | Stud/Tab Size | Material - Insulation | Insulation Diameter (Min) | Insulation Diameter (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.031 in | Circular | Serrated Termination | 0.859 in | 0.343 in | Insulated | Crimp | Copper | 16 AWG | 14 AWG | Free Hanging (In-Line) | Tin | Blue | 8 Stud | Nylon PA Polyamide | 0.105 in | 0.15 in |
