5145154 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

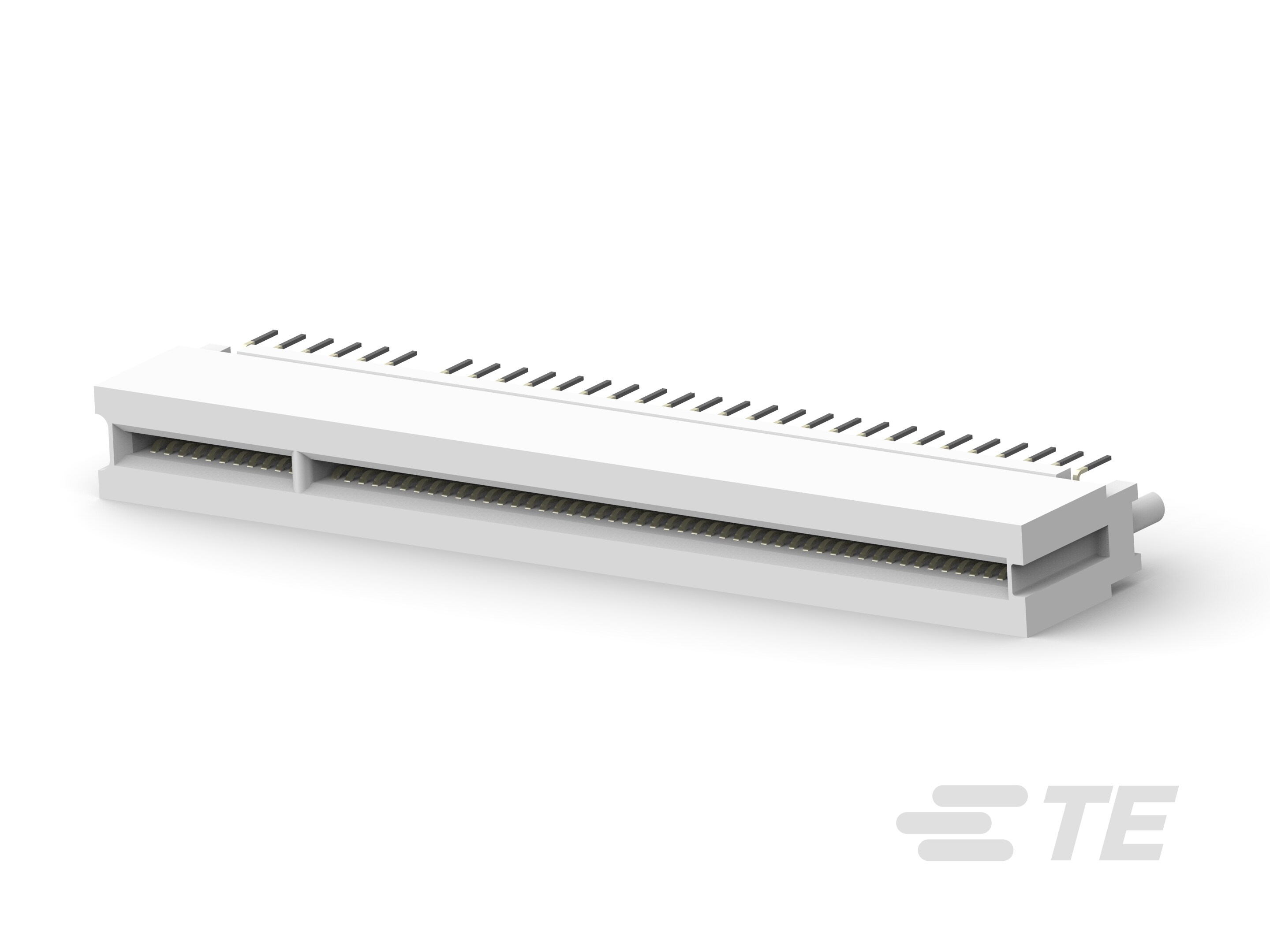

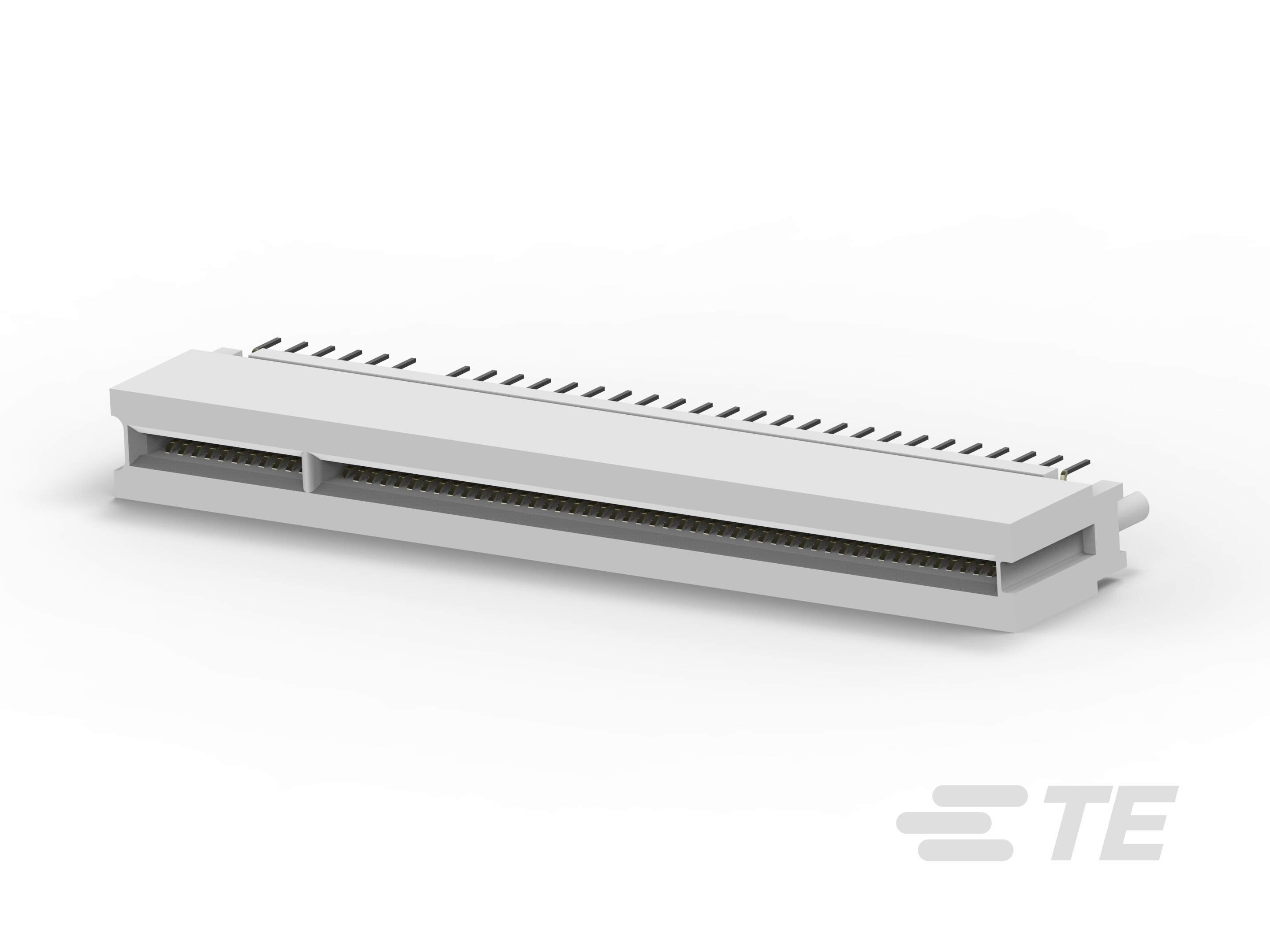

CONN PCI CARDEDGE FML 120P 0.050
| Part | Termination | Color | Features | Contact Finish | Mounting Type | Contact Material | Read Out | Card Thickness | Contact Finish Thickness | Number of Bay | Number of Positions | Gender | Pitch | Number of Rows | Card Type | Material - Insulation | Contact Finish Thickness (string set options) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Solder Staggered | Natural | Board Guide | Gold | Through Hole | Phosphor Bronze | Dual | 0.062 in | 30 µin | 49 | 11 120 | Female | 0.05 in | 2 | PCI™ | Thermoplastic | ||
 TE Connectivity AMP Connectors | Solder Staggered | Natural | Board Guide | Gold | Through Hole | Phosphor Bronze | Dual | 0.062 in | 30 µin | 49 | 11 120 | Female | 0.05 in | 2 | PCI™ | Thermoplastic | ||
 TE Connectivity AMP Connectors | Solder Staggered | Natural | Board Guide | Gold | Through Hole | Phosphor Bronze | Dual | 0.062 in | 30 µin | 49 | 11 120 | Female | 0.05 in | 2 | PCI™ | Thermoplastic | ||
 TE Connectivity AMP Connectors | Solder Staggered | Natural | Board Guide | Gold | Through Hole | Phosphor Bronze | Dual | 0.062 in | 0 | 49 | 11 120 | Female | 0.05 in | 2 | PCI™ | Thermoplastic | Flash | Flash |
