2301994 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

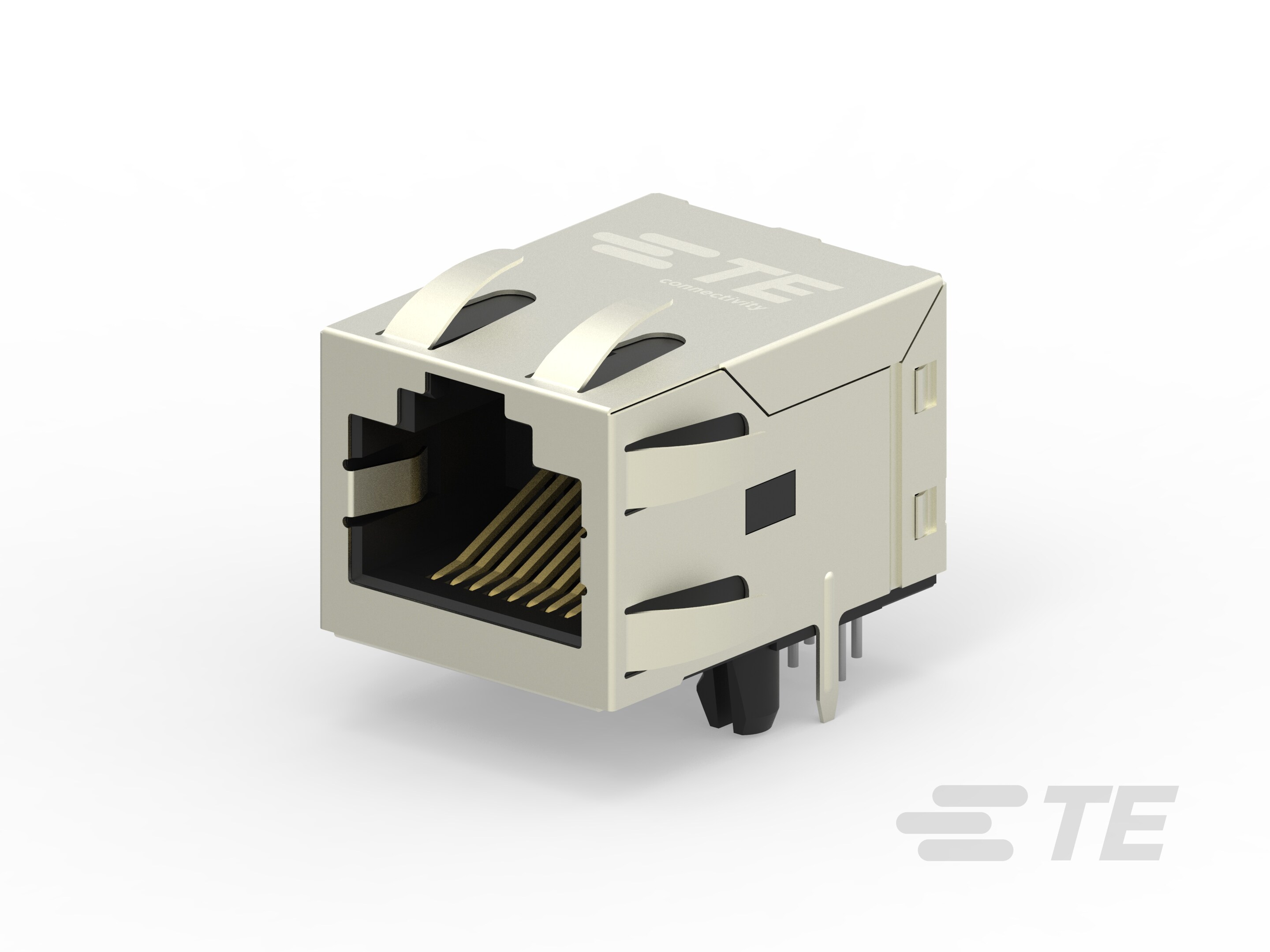

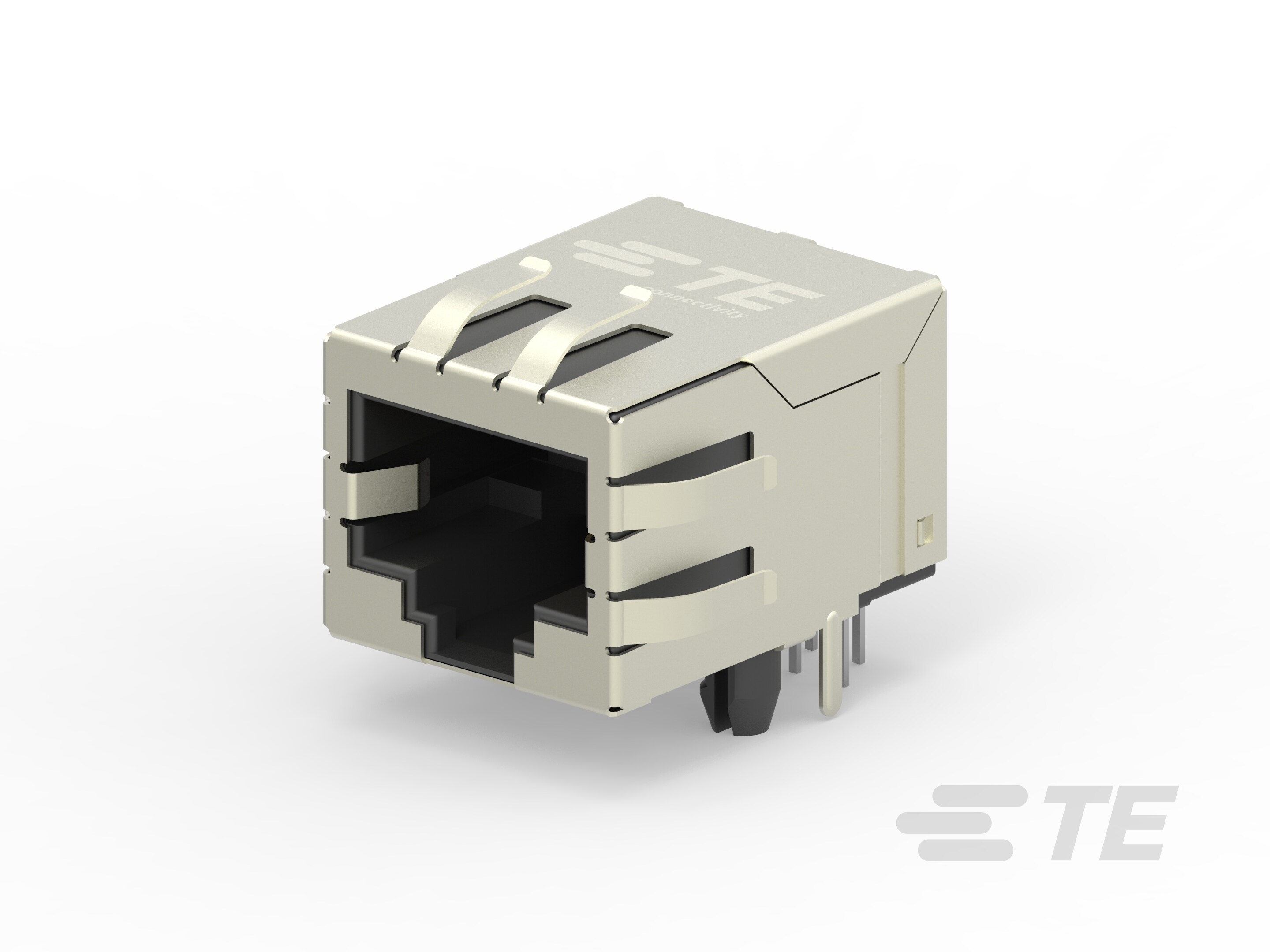

RJ45 JACK INT.MAG. 10/100 LED 1X1 INV.
| Part | Height Above Board | Orientation Angle | Orientation Direction | Number of Ports | Operating Temperature (Min) | Operating Temperature (Max) | Connector Type | LED Color | Number of Rows | Features | Shielding | Tab Direction | Number of Cores per Jack | Mounting Type | Contact Material | Termination | Contact Finish | Applications | Housing Material | Contact Finish Thickness | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.544 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Green - Yellow | 1 | Board Lock | EMI Finger Shielded | Up | 4 | Through Hole | Copper Alloy | Solder | Gold | 10/100 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
 TE Connectivity AMP Connectors | 0.543 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Green - Yellow | 1 | Board Guide | EMI Finger Shielded | Up | 8 | Through Hole | Copper Alloy | Solder | Gold | 1G Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
TE Connectivity AMP Connectors | 0.537 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Green - Yellow | 1 | Board Guide | EMI Finger Shielded | Down | 8 | Through Hole | Copper Alloy | Solder | Gold | 1G Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
 TE Connectivity AMP Connectors | 0.531 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Does Not Contain LED | 1 | Board Lock | EMI Finger Shielded | Down | 4 | Through Hole | Copper Alloy | Solder | Gold | 10/100 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
 TE Connectivity AMP Connectors | 0.445 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Green Orange - Yellow | 1 | Board Lock | EMI Finger Shielded | Up | 8 | Through Hole | Copper Alloy | Solder | Gold | 10/100/1000 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
 TE Connectivity AMP Connectors | 0.537 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Green - Yellow | 1 | Board Lock | EMI Finger Shielded | Down | 8 | Through Hole | Copper Alloy | Solder | Gold | 10/100/1000 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
 TE Connectivity AMP Connectors | 0.537 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Does Not Contain LED | 1 | Board Lock | EMI Finger Shielded | Down | 8 | Through Hole | Copper Alloy | Solder | Gold | 10/100/1000 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
 TE Connectivity AMP Connectors | 0.543 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Does Not Contain LED | 1 | Board Lock | EMI Finger Shielded | Up | 8 | Through Hole | Copper Alloy | Solder | Gold | 10/100 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
TE Connectivity AMP Connectors | 0.537 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Green Yellow Yellow - Green | 1 | Board Lock | Shielded | Down | 4 | Through Hole | Copper Alloy | Solder | Gold | 10/100 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
 TE Connectivity AMP Connectors | 0.537 in | 90 ° | Right | 1 | -40 °C | 85 °C | RJ45 | Green Yellow Yellow - Green | 1 | Board Lock | EMI Finger Shielded | Down | 8 | Panel Mount Through Hole | Copper Alloy | Solder | Gold | 10/100/1000 Base-T AutoMDIX | LCP Liquid Crystal Polymer | 30 µin | Brass |
