644178 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

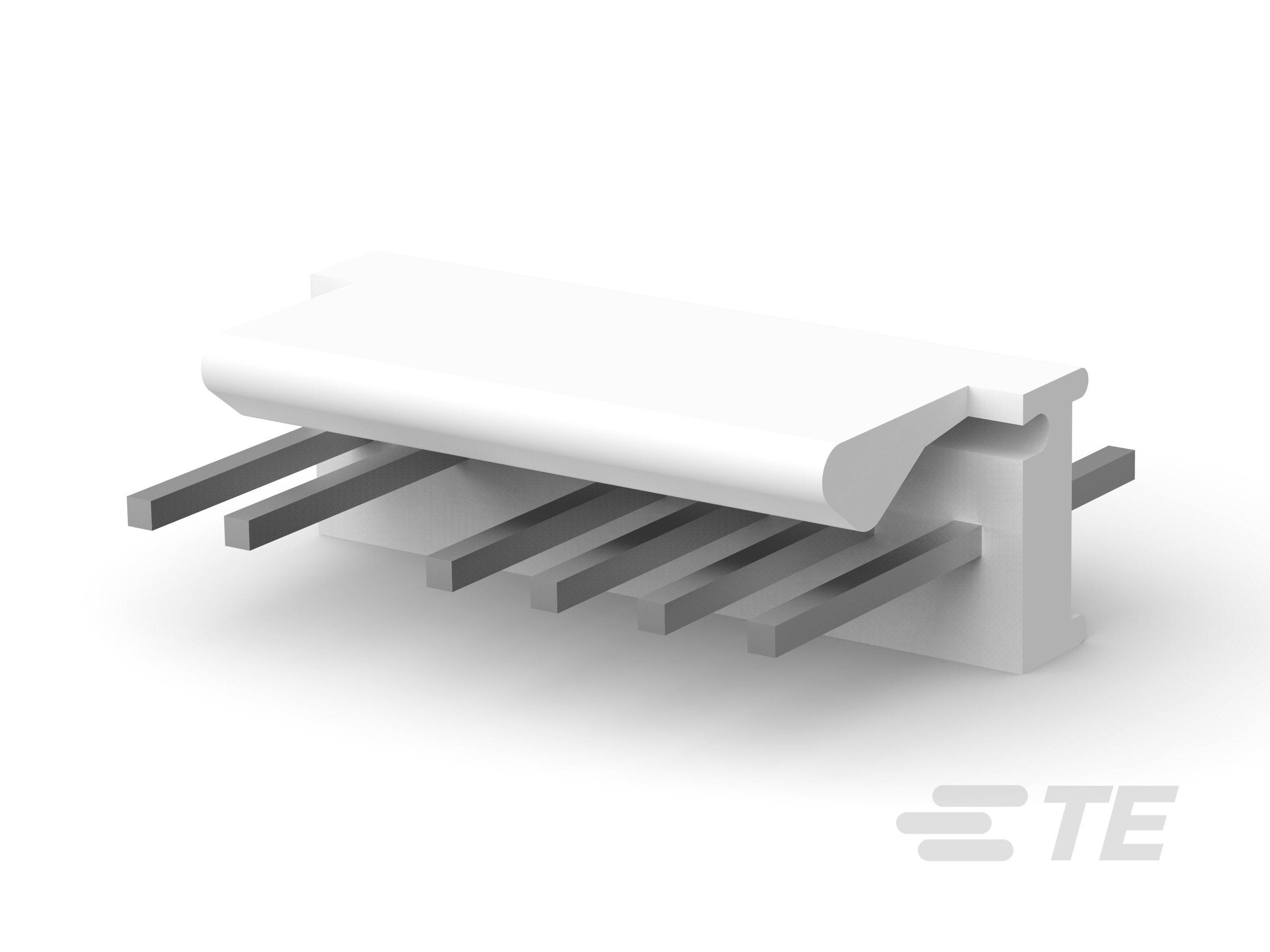

CONN HEADER VERT 7POS 2.54MM
| Part | Number of Positions | Connector Type | Shrouding | Contact Type | Insulation Color | Mounting Type | Contact Length - Post | Contact Finish - Mating | Material Flammability Rating | Style | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Height | Insulation Material | Number of Rows | Pitch - Mating | Voltage Rating | Contact Shape | Contact Length - Mating | Current Rating | Current Rating | Contact Finish - Post | Termination | Contact Material | Overall Contact Length | Fastening Type | Number of Positions Loaded | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7 | Header | Shrouded - 1 Wall | Male Pin | Natural | Through Hole | 0.14 in | Tin | UL94 V-0 | Board Cable/Wire | -55 °C | 105 °C | 0.305 in | Thermoplastic | 1 | 0.1 in | 250 V | Square | 0.295 in | 0 A | Varies by Wire Gauge | Tin | Solder | Copper Alloy | 0.535 in | Friction Lock | 6 | General Purpose |
