EEG-A1 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 4100UF 20% 50V SCREW CH

Part	Operating Temperature (Min)	Operating Temperature (Max)	Capacitance	Polarization	ESR (Equivalent Series Resistance)	Lead Spacing	Height - Seated (Max)	Ripple Current	Size / Dimension Diameter	Package / Case	Tolerance	Mounting Type	Lifetime	Voltage - Rated	Applications
Panasonic Electronic Components EEG-A1H412CGE	-40 °C	85 °C	4100 µF	Polar	107 mOhm	0.5 in	3.125 in	5.4 A	1.375 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	50 V	General Purpose

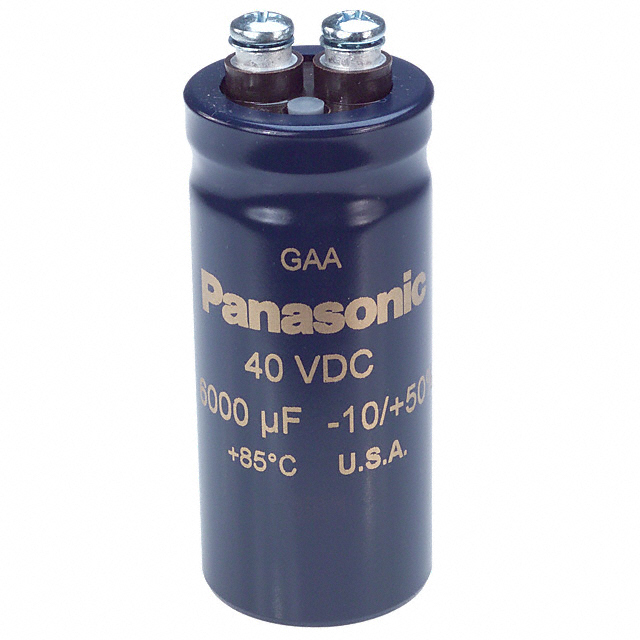

Panasonic Electronic Components EEG-A1G602CGE	-40 °C	85 °C	6000 µF	Polar	73 mOhm	0.5 in	3.125 in	6.06 A	1.375 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	40 V	General Purpose
Panasonic Electronic Components EEG-A1E123CCE	-40 °C	85 °C	12000 µF	Polar	42 mOhm	0.5 in	2.125 in	5.13 A	1.375 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	25 VAC	General Purpose

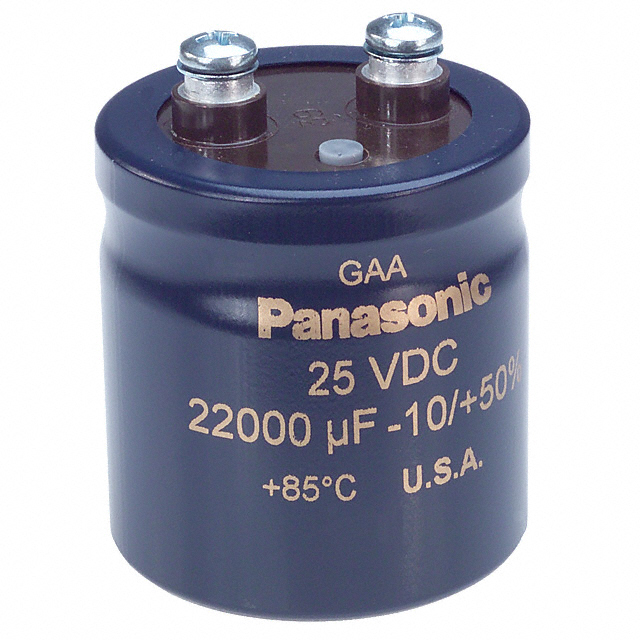

Panasonic Electronic Components EEG-A1E223FCE	-40 °C	85 °C	22000 µF	Polar	23 mOhm	0.874 in	2.125 in	6.05 A	2 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	25 VAC	General Purpose

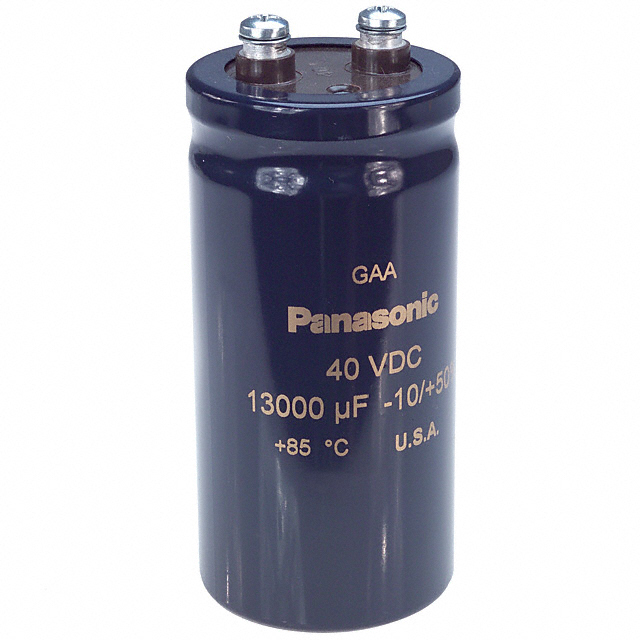

Panasonic Electronic Components EEG-A1G133FKE	-40 °C	85 °C	13000 µF	Polar	34 mOhm	0.874 in	4.125 in	11.76 A	2 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	40 V	General Purpose
Panasonic Electronic Components EEG-A1E473FGE	-40 °C	85 °C	47000 µF	Polar	10 mOhm	0.874 in	3.125 in	12.72 A	2 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	25 VAC	General Purpose
Panasonic Electronic Components EEG-A1E683FHE	-40 °C	85 °C	68 mF	Polar	9 mOhm	0.874 in	3.625 in	17.14 A	2 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	25 VAC	General Purpose
Panasonic Electronic Components EEG-A1H103CKE	-40 °C	85 °C	10000 µF	Polar	44 mOhm	0.5 in	4.125 in	8.79 A	1.375 in	Can - Screw Terminals Radial	20 %	Chassis Mount	3000 Hrs	50 V	General Purpose
