2367196 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

1.0MM WTB RIGHT ANGLE TYPE WITH LATCH

Part	Shrouding	Current Rating	Number of Positions	Pitch - Mating	Contact Length - Mating	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Connector Type	Material Flammability Rating	Contact Finish - Mating	Contact Material	Contact Shape	Style	Insulation Material	Mounting Type	Number of Rows	Contact Finish Thickness - Mating	Voltage Rating	Termination	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Features	Insulation Height	Contact Finish Thickness - Post	Current Rating (Per Contact)	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)

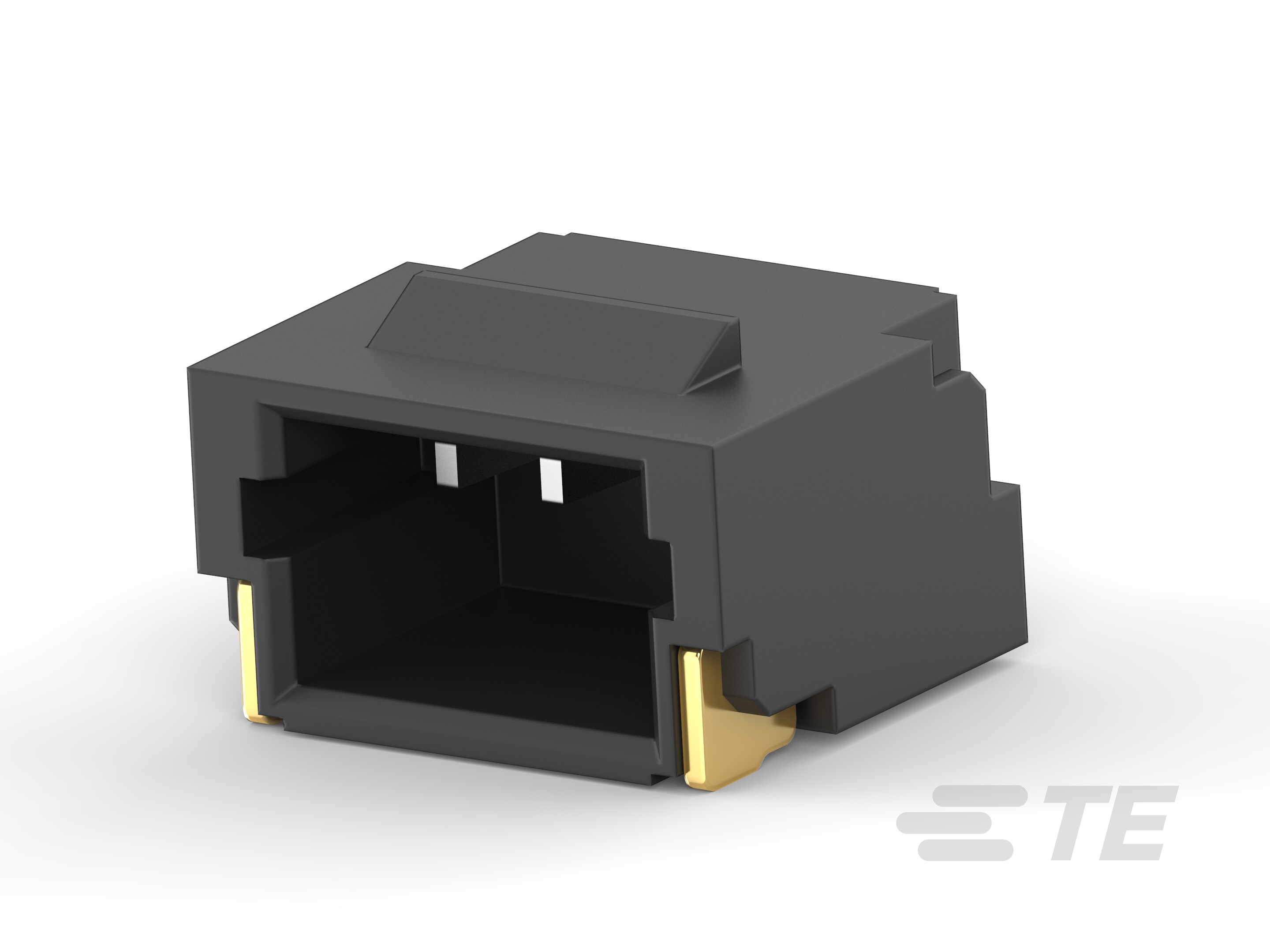

TE Connectivity AMP Connectors 2367196-3	Shrouded - 4 Wall	2 A	3	0.039 in	0.087 in	Black	-40 °C	85 °C	Male Pin	Header	UL94 V-0	Tin	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Thermoplastic	Right Angle Surface Mount	1	5 µin	50 V	Solder	Locking Ramp	All	Tin	Pick and Place Solder Retention	0.114 in	50 µin
TE Connectivity AMP Connectors 2-2367196-6	Shrouded - 4 Wall		6	0.039 in		Black	-40 °C	105 °C	Male Pin	Header	UL94 V-0	Gold	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Plastic	Right Angle Surface Mount	1		50 V	Solder	Locking Ramp	All	Gold	Pick and Place Solder Retention	0.114 in		1 A	Flash	Flash	Flash

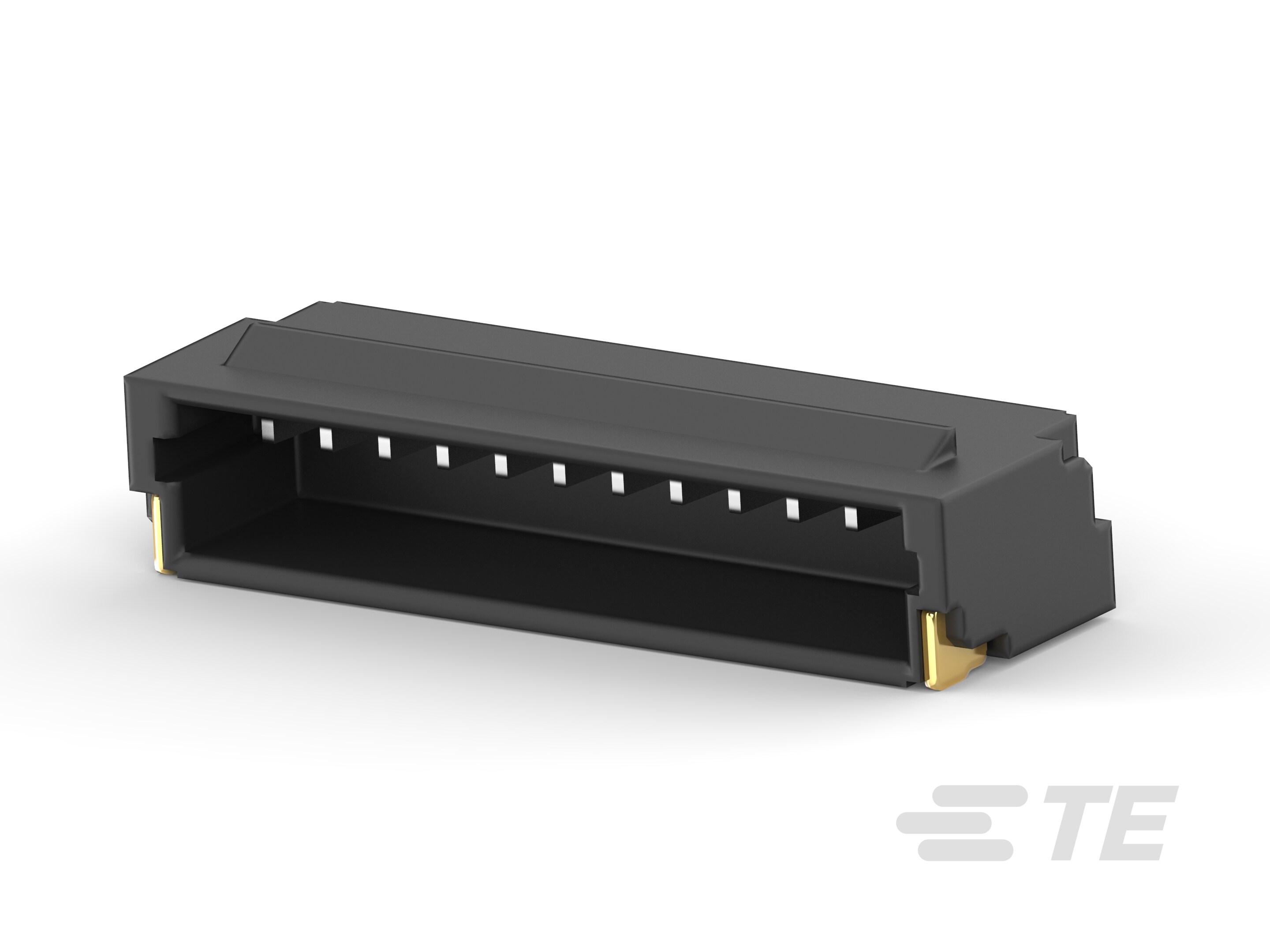

TE Connectivity AMP Connectors 1-2367196-2	Shrouded - 4 Wall	2 A	12	0.039 in	0.087 in	Black	-40 °C	85 °C	Male Pin	Header	UL94 V-0	Tin	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Thermoplastic	Right Angle Surface Mount	1	5 µin	50 V	Solder	Locking Ramp	All	Tin	Pick and Place Solder Retention	0.114 in	50 µin

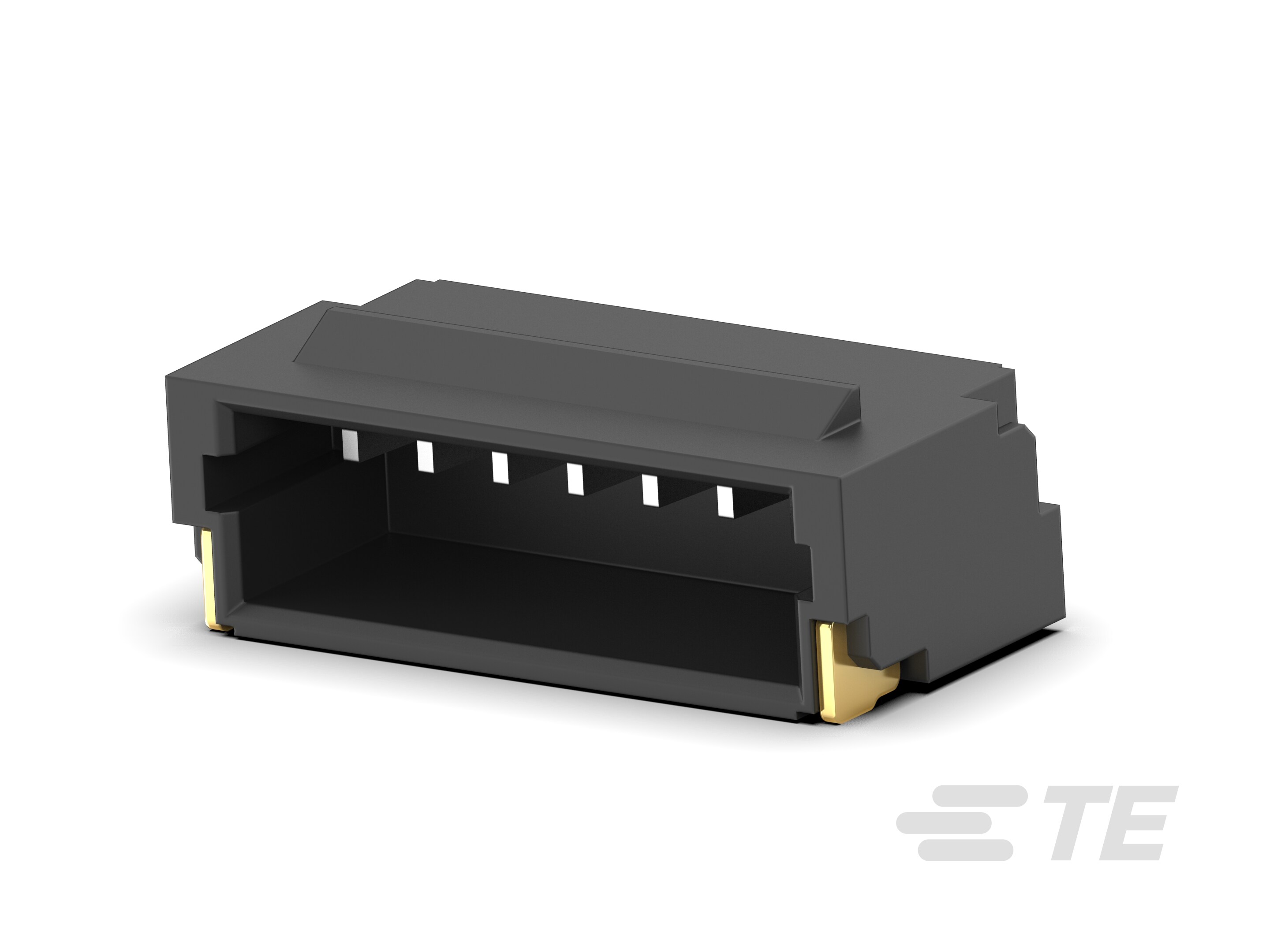

TE Connectivity AMP Connectors 2367196-7	Shrouded - 4 Wall	2 A	7	0.039 in	0.087 in	Black	-40 °C	85 °C	Male Pin	Header	UL94 V-0	Tin	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Thermoplastic	Right Angle Surface Mount	1	5 µin	50 V	Solder	Locking Ramp	All	Tin	Pick and Place Solder Retention	0.114 in	50 µin
TE Connectivity AMP Connectors 5-2367196-5	Shrouded - 4 Wall		15	0.039 in		Black	-40 °C	105 °C	Male Pin	Header	UL94 V-0	Gold	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Plastic	Right Angle Surface Mount	1	3 µin	50 V	Solder	Locking Ramp	All	Gold	Pick and Place Solder Retention	0.114 in		1 A		Flash	Flash
TE Connectivity AMP Connectors 2-2367196-3	Shrouded - 4 Wall		3	0.039 in		Black	-40 °C	105 °C	Male Pin	Header	UL94 V-0	Gold	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Plastic	Right Angle Surface Mount	1		50 V	Solder	Locking Ramp	All	Gold	Pick and Place Solder Retention	0.114 in		1 A	Flash	Flash	Flash
TE Connectivity AMP Connectors 1-2367196-3	Shrouded - 4 Wall	2 A	13	0.039 in	0.087 in	Black	-40 °C	85 °C	Male Pin	Header	UL94 V-0	Tin	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Thermoplastic	Right Angle Surface Mount	1	5 µin	50 V	Solder	Locking Ramp	All	Tin	Pick and Place Solder Retention	0.114 in	50 µin
TE Connectivity AMP Connectors 2-2367196-5	Shrouded - 4 Wall		5	0.039 in		Black	-40 °C	105 °C	Male Pin	Header	UL94 V-0	Gold	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Plastic	Right Angle Surface Mount	1		50 V	Solder	Locking Ramp	All	Gold	Pick and Place Solder Retention	0.114 in		1 A	Flash	Flash	Flash
TE Connectivity AMP Connectors 5-2367196-1	Shrouded - 4 Wall		11	0.039 in		Black	-40 °C	105 °C	Male Pin	Header	UL94 V-0	Gold	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Plastic	Right Angle Surface Mount	1	3 µin	50 V	Solder	Locking Ramp	All	Gold	Pick and Place Solder Retention	0.114 in		1 A		Flash	Flash
TE Connectivity AMP Connectors 3-2367196-0	Shrouded - 4 Wall		10	0.039 in		Black	-40 °C	105 °C	Male Pin	Header	UL94 V-0	Gold	Copper Alloy	Rectangular	Board Cable/Wire	Halogen Free Plastic	Right Angle Surface Mount	1		50 V	Solder	Locking Ramp	All	Gold	Pick and Place Solder Retention	0.114 in		1 A	Flash	Flash	Flash
