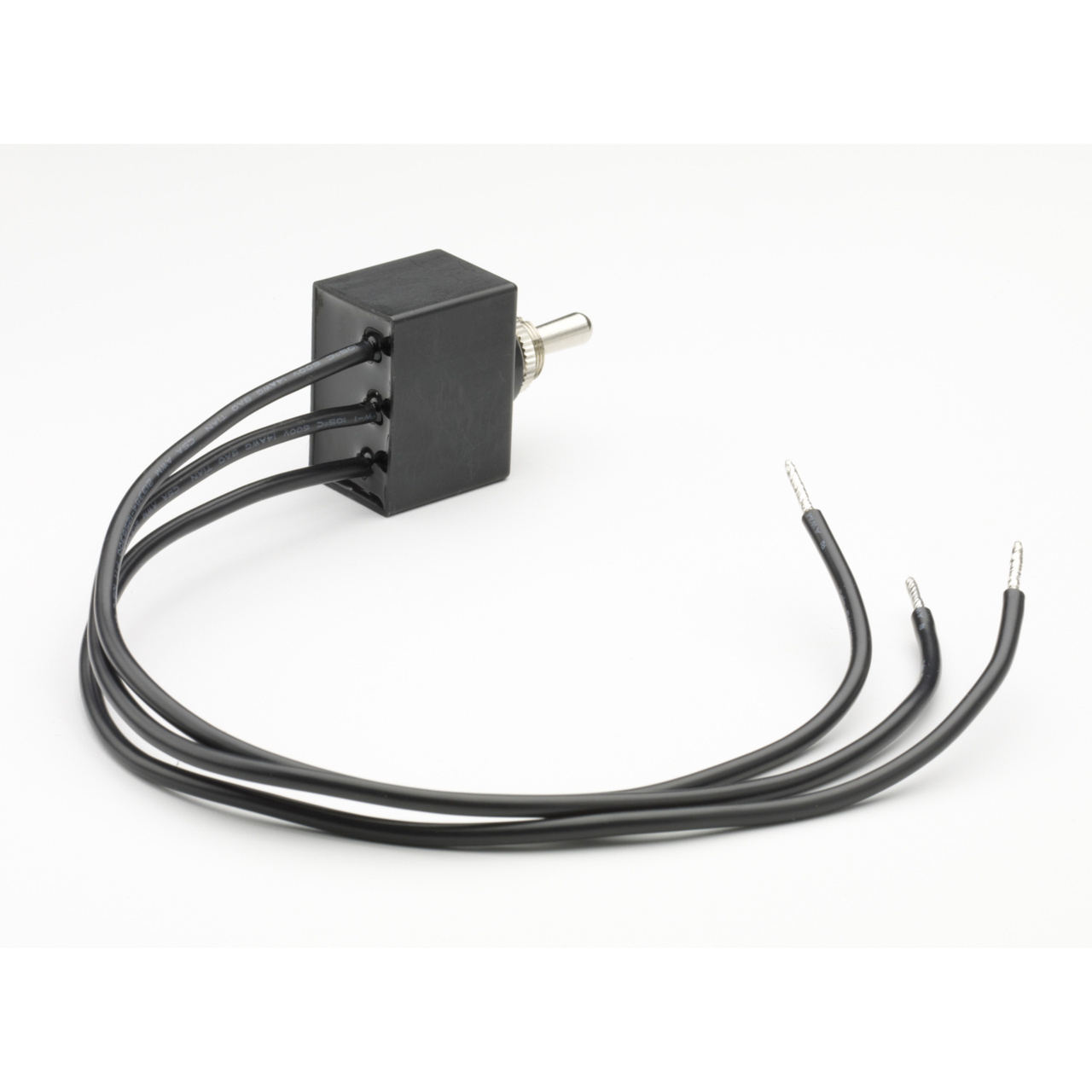

55025 Series

SW, TOGGLE, SPST, ON-OFF, SEALED

Catalog

SW, TOGGLE, SPST, ON-OFF, SEALED

Part	Actuator Material	Termination Style	Mounting Type	Switch Function	Current Rating	Bushing Thread	Voltage Rating - DC	Illumination	Panel Cutout Diameter	Panel Cutout Shape	Actuator Length	Actuator Type	Circuit
LITTELFUSE 55025-03	Brass Nickel Plated	Wire Leads	Panel Mount	On-On	15 A	15/32-32	24 V	Non-Illuminated	11.9 mm	Circular	15.3 mm	Standard Round	SPDT
LITTELFUSE 55025		Wire Leads	Panel Mount	On-Off	15 A	15/32-32	24 V	Non-Illuminated	11.9 mm	Circular	15.24 mm	Standard Round	SPST
LITTELFUSE 55025-04	Brass Nickel Plated	Wire Leads	Panel Mount	Mom-Off-Mom	15 A	15/32-32	24 V	Non-Illuminated	11.9 mm	Circular	15.3 mm	Standard Round	SPDT

Catalog

SW, TOGGLE, SPST, ON-OFF, SEALED

Description

Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The 55025 series is our most popular sealed toggle switch product, meant to be mounted in virtually any environment and for any application.
