076290 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT IMPACT 216POS EDGE MNT
| Part | Material Flammability Rating | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Connector Style | Number of Columns | Number of Positions | Mounting Type | Number of Positions Loaded | Termination | Differential Pairs (Typical) | Number of Rows | Contact Finish | Connector Type | Contact Finish Thickness | Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

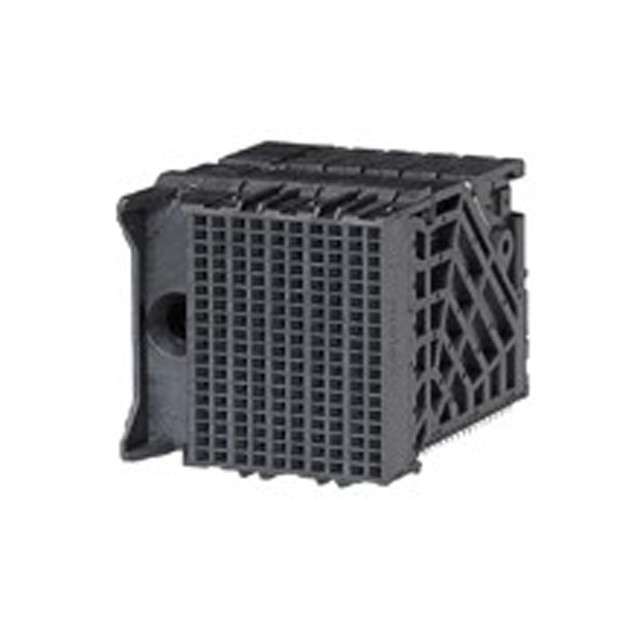

 Molex | UL94 V-0 | -55 °C | 85 °C | 30 V | Guide Left Impact | 12 | 216 | Board Edge Right Angle Through Hole | All | Press-Fit | 72 | 18 | Gold | Female Sockets Receptacle | 30 µin | Black | |

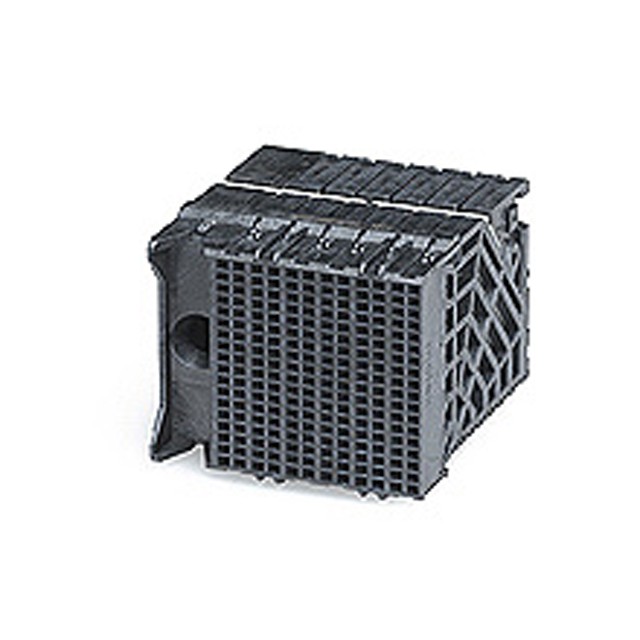

 Molex | UL94 V-0 | -55 °C | 85 °C | 30 V | Guide Left Impact | 10 | 180 | Board Edge Right Angle Through Hole | All | Press-Fit | 60 | 18 | Gold | Female Sockets Receptacle | 30 µin | Black | |
Molex | UL94 V-0 | -55 °C | 85 °C | 30 V | Guide Right Impact | 10 | 180 | Board Edge Right Angle Through Hole | All | Press-Fit | 60 | 18 | Gold | Female Sockets Receptacle | 30 µin | Black | Board Guide |
