60793 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

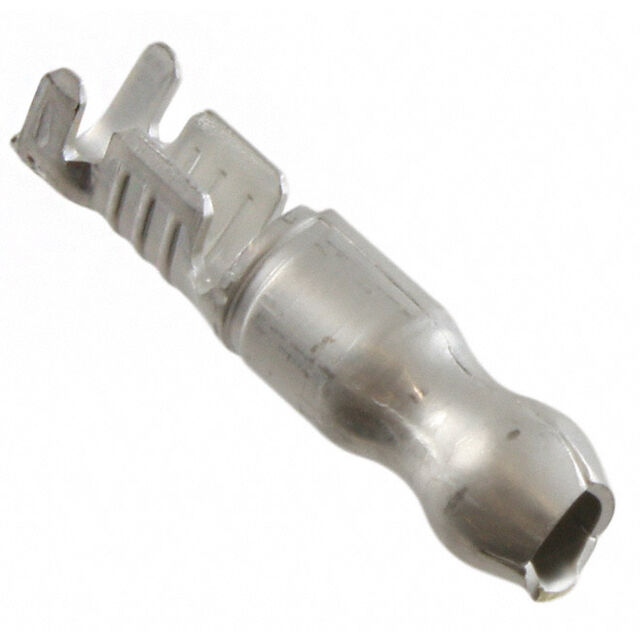

SHUR PLUG .180 18-14 AWG TPBR
| Part | Insulation Diameter (Max) | Insulation Diameter (Min) | Insulation | Contact Finish | Terminal Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Termination | Length - Overall | Contact Material | Diameter - Barrel | Length - Barrel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 0.09 in | Non-Insulated | Tin | Male Pin (Plug) | 18 AWG | 14 AWG | Crimp | 0.745 in | Brass | 0.18 in | 0.447 in |
