52420 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

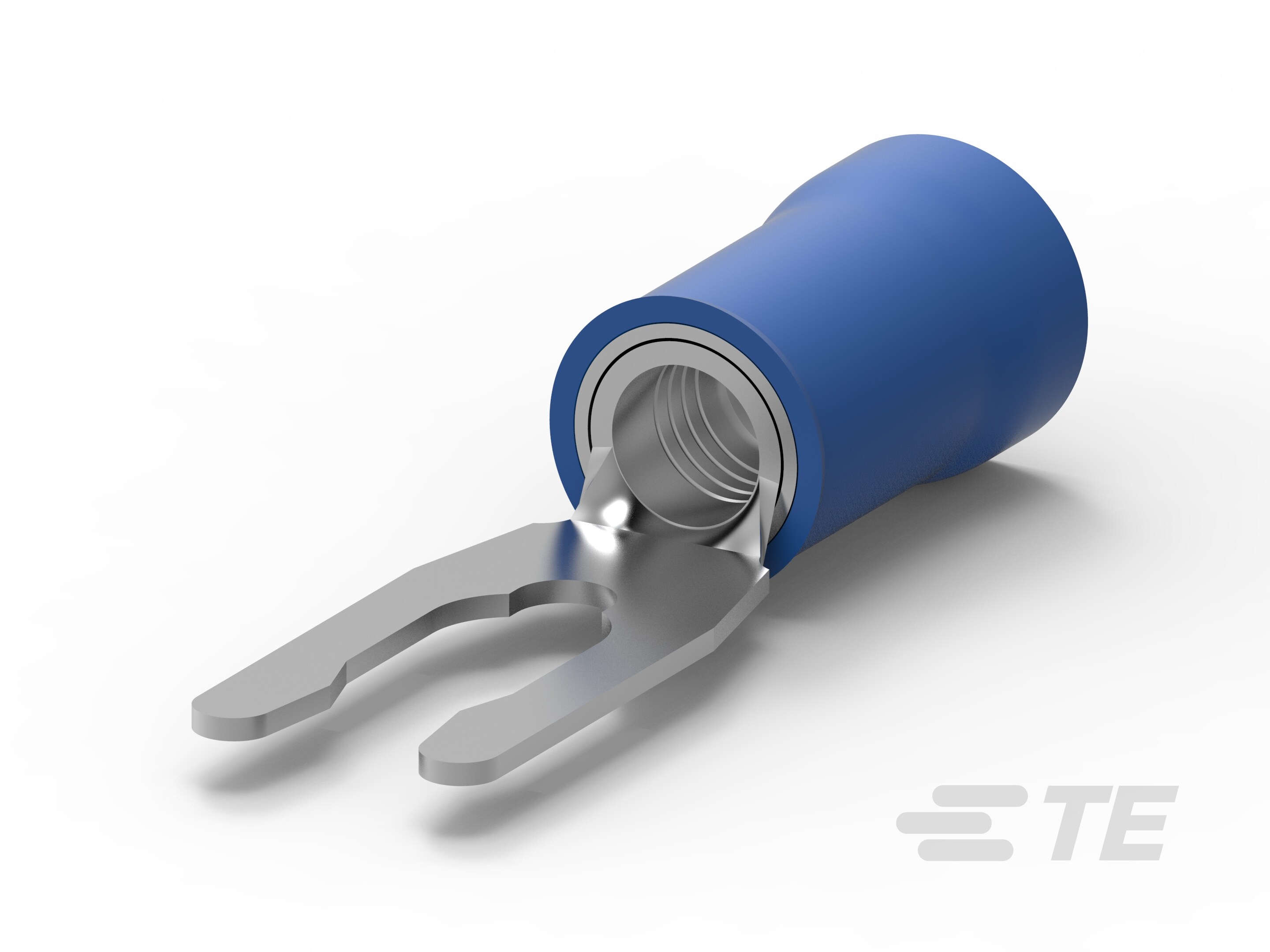

CONN SPADE TERM 14-16AWG #6 BLU
| Part | Contact Finish | Stud/Tab Size | Width - Outer Edges | Insulation | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Contact Material | Mounting Type | Color | Length - Overall | Terminal Type | Features | Termination | Length - Ring Center to Termination | Material - Insulation | Length - Termination | Insulation Diameter (Max) | Insulation Diameter (Min) | Tongue Inside Opening |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | 6 Stud | 0.25 in | Insulated | 16 AWG | 14 AWG | Phosphor Bronze | Free Hanging (In-Line) | Blue | 0.933 in | Snap Spring | Serrated Termination | Crimp | 0.238 in | Nylon PA Polyamide | 0.414 in | 0.17 in | 0.115 in | 0.14 in |
