643820 Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 3.96 MM, 1 ROW, 3 CONTACTS, CABLE MOUNT

Part	Pitch	Cable Termination	Wire Type	Mounting Type	Number of Rows	Contact Type	Number of Positions	Wire Gauge	Features	Connector Type	Fastening Type	Color	Contact Finish	Contact Finish Thickness

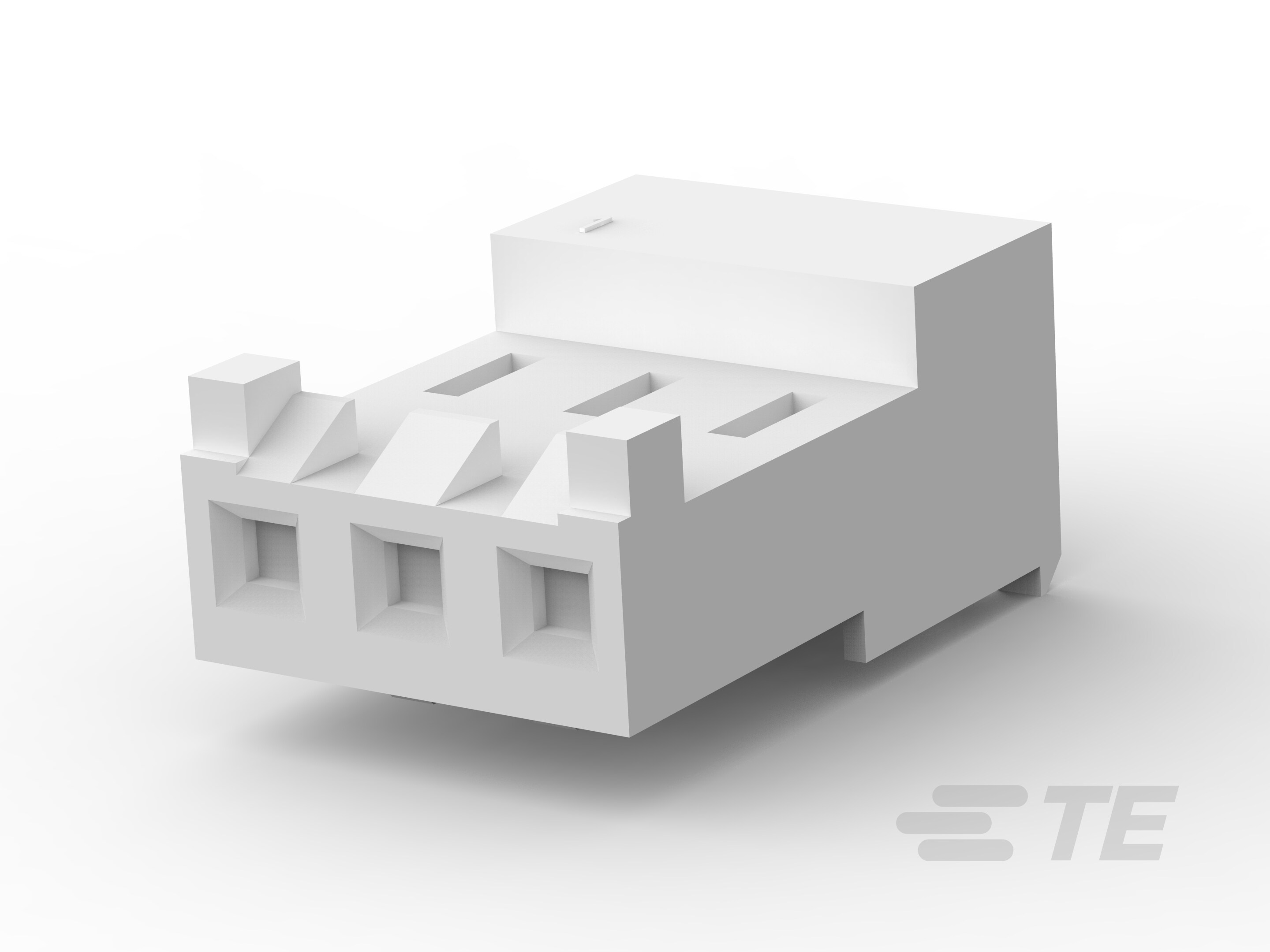

TE Connectivity AMP Connectors 3-643820-3	0.156 in	IDC	Discrete Ribbon Cable	Free Hanging (In-Line)	1	Female Socket	3	24 AWG	Closed End Polarizing Key	Receptacle	Locking Ramp	White	Tin	80 µin

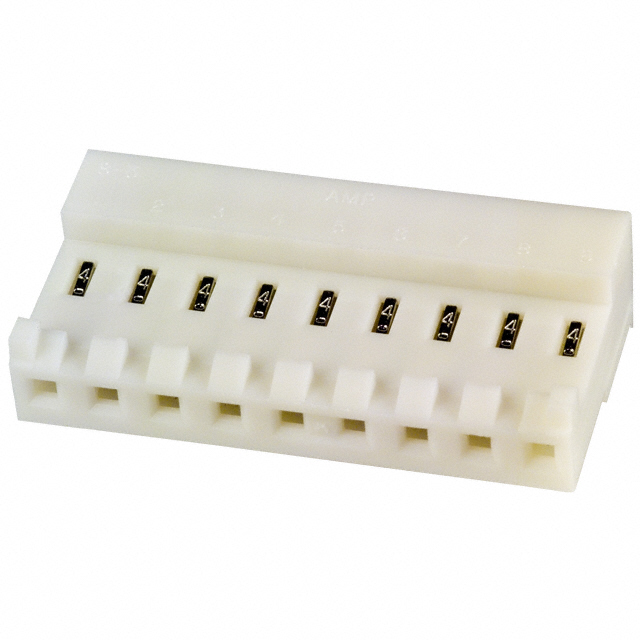

TE Connectivity AMP Connectors 3-643820-9	0.156 in	IDC	Discrete Ribbon Cable	Free Hanging (In-Line)	1	Female Socket	9	24 AWG	Closed End Polarizing Key	Receptacle	Locking Ramp	White	Tin	80 µin

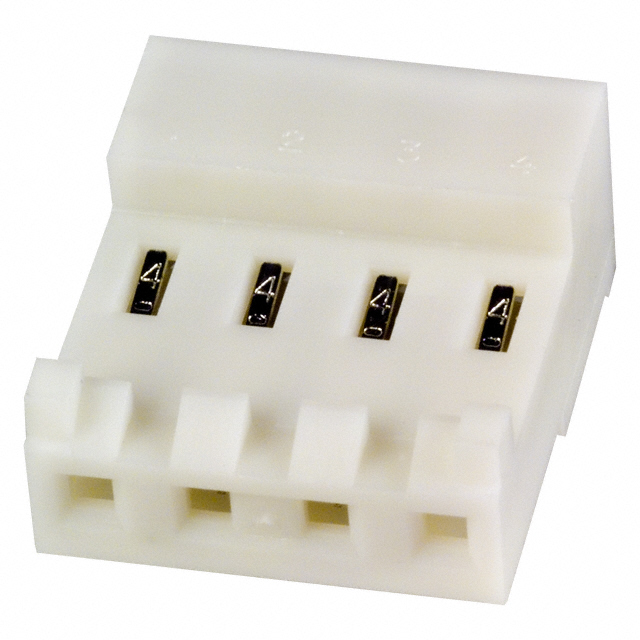

TE Connectivity AMP Connectors 643820-4	0.156 in	IDC	Discrete Ribbon Cable	Free Hanging (In-Line)	1	Female Socket	4	24 AWG	Closed End Polarizing Key	Receptacle	Locking Ramp	White	Tin-Lead	80 µin

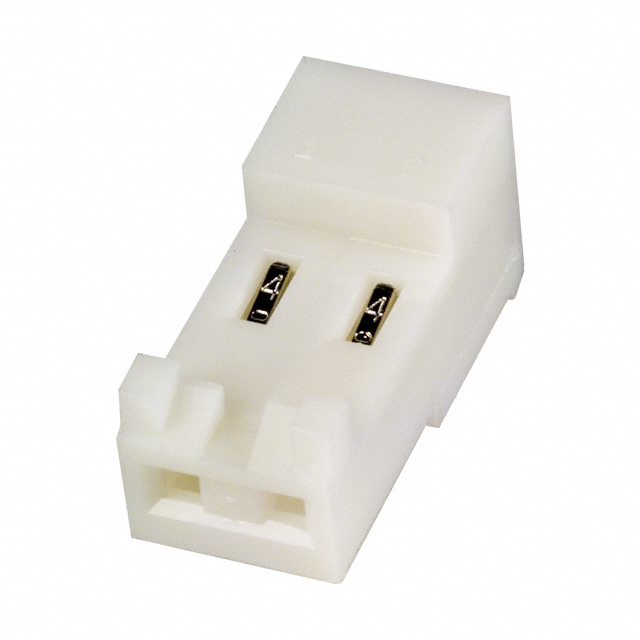

TE Connectivity AMP Connectors 643820-2	0.156 in	IDC	Discrete Ribbon Cable	Free Hanging (In-Line)	1	Female Socket	2	24 AWG	Closed End Polarizing Key	Receptacle	Locking Ramp	White	Tin-Lead	80 µin
TE Connectivity AMP Connectors 643820-3	0.156 in	IDC	Discrete Ribbon Cable	Free Hanging (In-Line)	1	Female Socket	3	24 AWG	Closed End Polarizing Key	Receptacle	Locking Ramp	White	Tin-Lead	80 µin
TE Connectivity AMP Connectors 643820-9	0.156 in	IDC	Discrete Ribbon Cable	Free Hanging (In-Line)	1	Female Socket	9	24 AWG	Closed End Polarizing Key	Receptacle	Locking Ramp	White	Tin-Lead	80 µin
TE Connectivity AMP Connectors 4-643820-1	0.156 in	IDC	Discrete Ribbon Cable	Free Hanging (In-Line)	1	Female Socket	11	24 AWG	Closed End Polarizing Key	Receptacle	Locking Ramp	White	Tin	80 µin
