42692 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

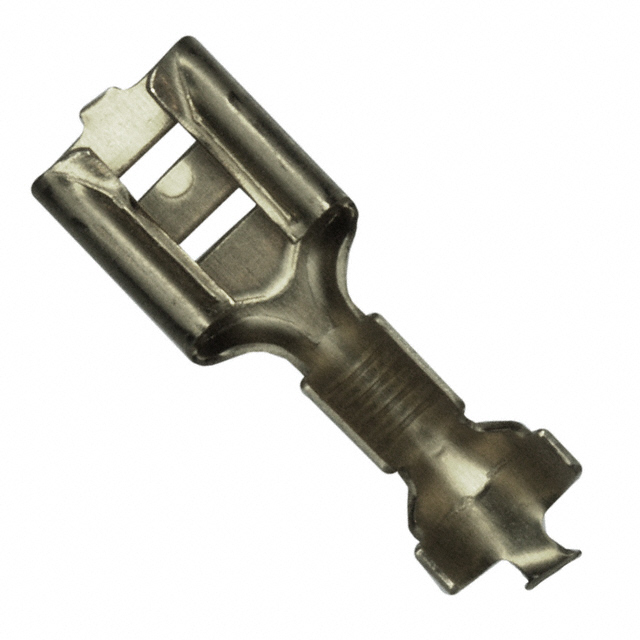

CONN QC RCPT 14-18AWG 0.250
| Part | Insulation Diameter (Max) | Insulation Diameter (Min) | Terminal Type | Termination | Contact Material | Length - Overall | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Tab Width | Insulation | Gender | Mounting Type | Tab Length | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.21 in | 0.15 in | Standard | Crimp | Brass | 0.78 in | 18 AWG | 14 AWG | 0.25 in | Non-Insulated | Female | Free Hanging (In-Line) | 0.305 in | 0.032 in |
