641191 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 4POS IDC 24AWG GOLD

Part	Wire Gauge	Number of Rows	Contact Finish Thickness	Features	Pitch	Cable Termination	Fastening Type	Color	Wire Type	Contact Finish	Mounting Type	Number of Positions	Contact Type	Connector Type

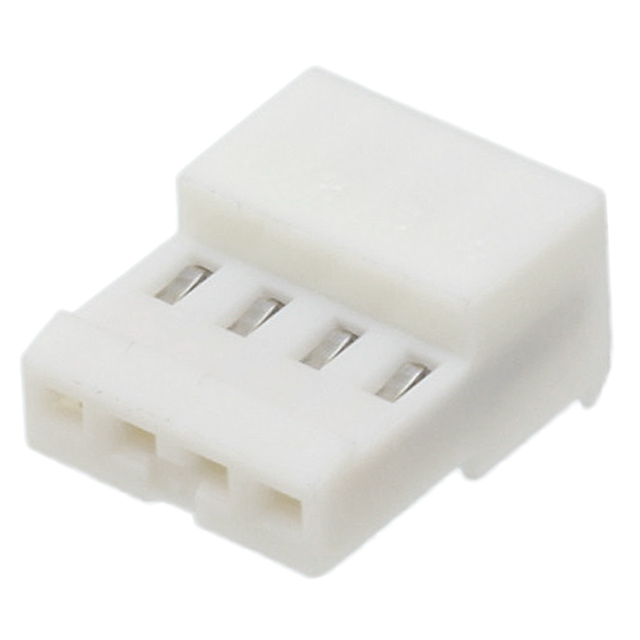

TE Connectivity AMP Connectors 641191-4	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	4	Female Socket	Receptacle

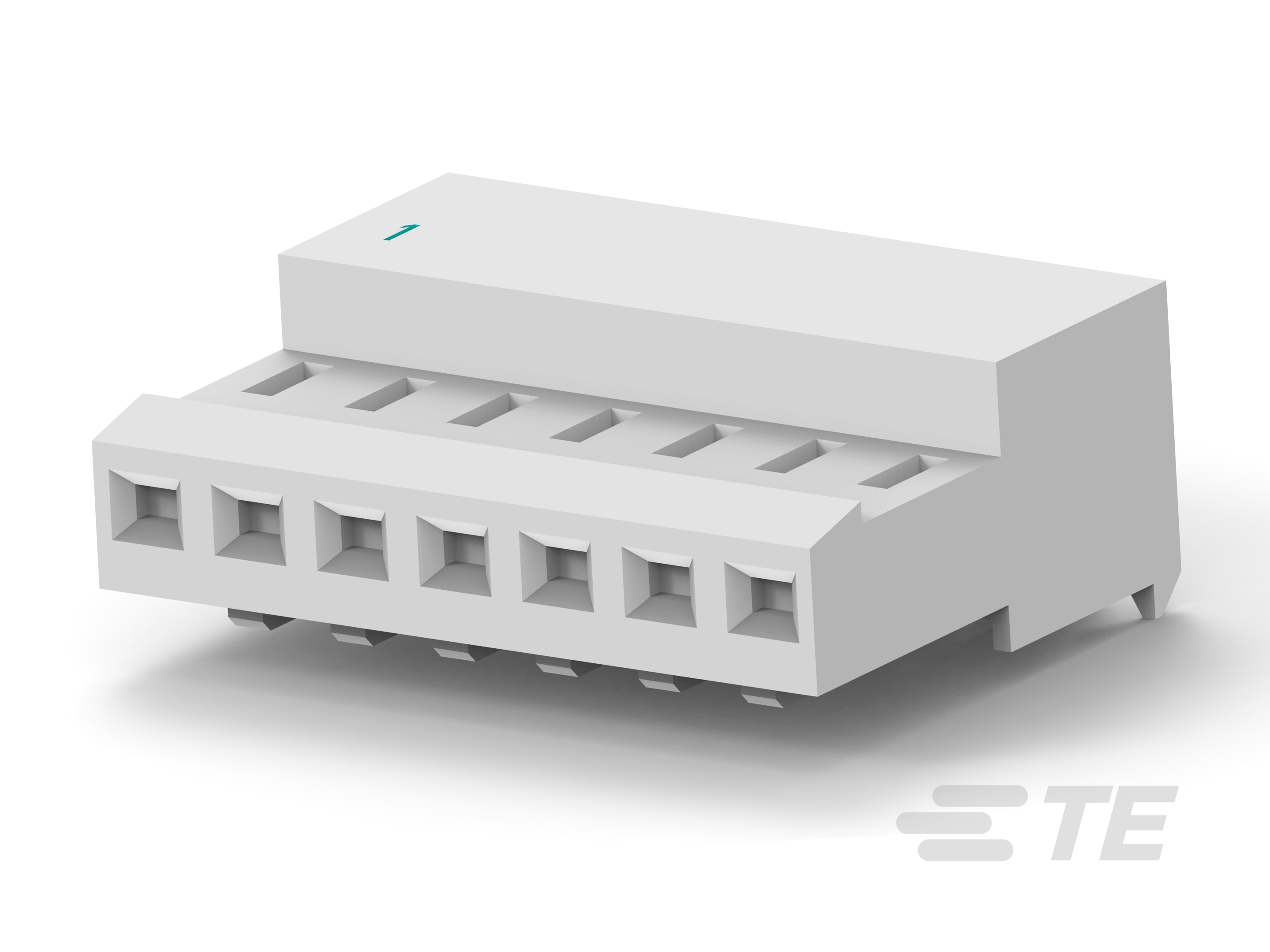

TE Connectivity AMP Connectors 3-641191-7	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	7	Female Socket	Receptacle
TE Connectivity AMP Connectors 641191-2	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	2	Female Socket	Receptacle

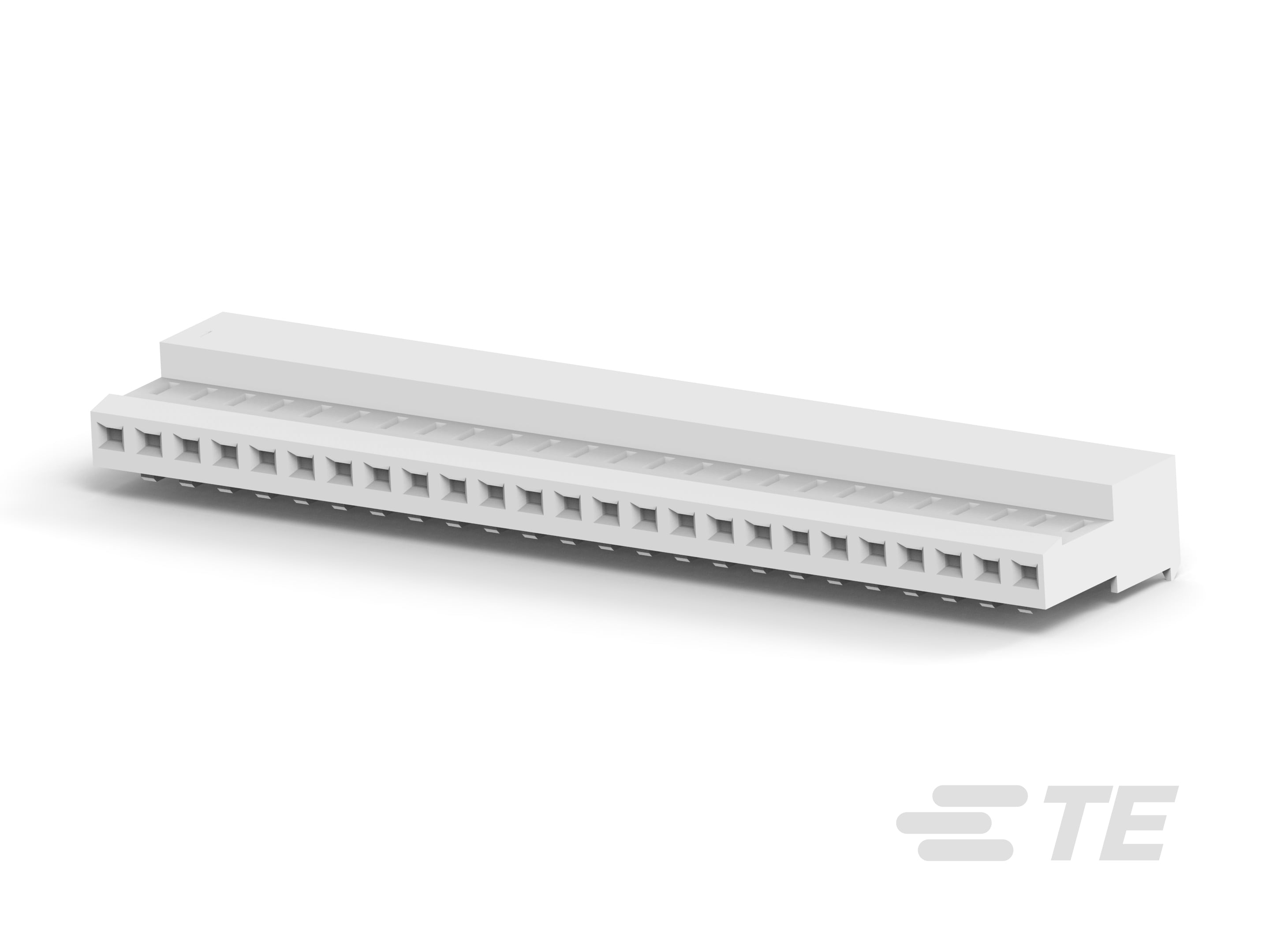

TE Connectivity AMP Connectors 5-641191-5	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	25	Female Socket	Receptacle

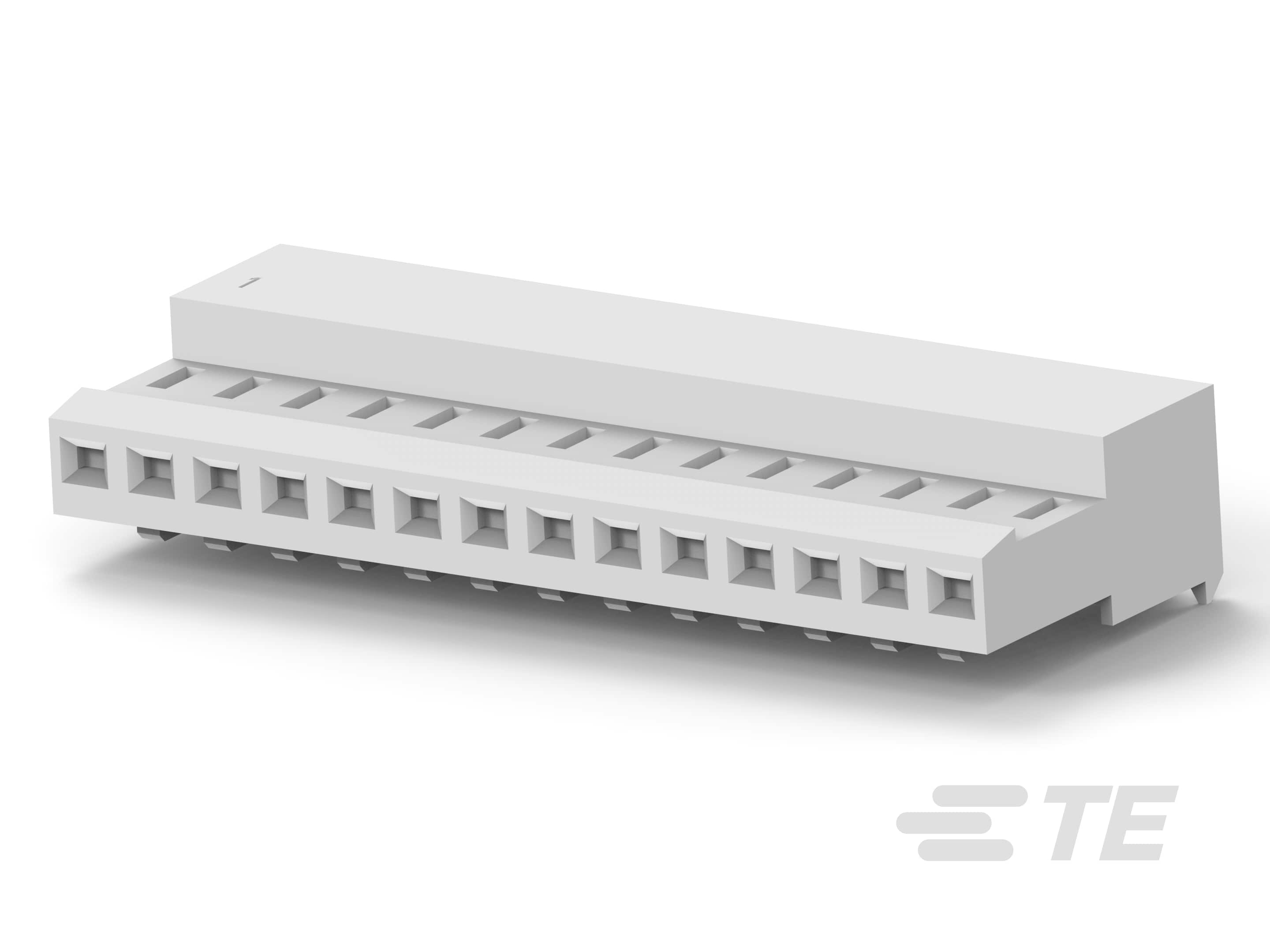

TE Connectivity AMP Connectors 4-641191-4	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	14	Female Socket	Receptacle

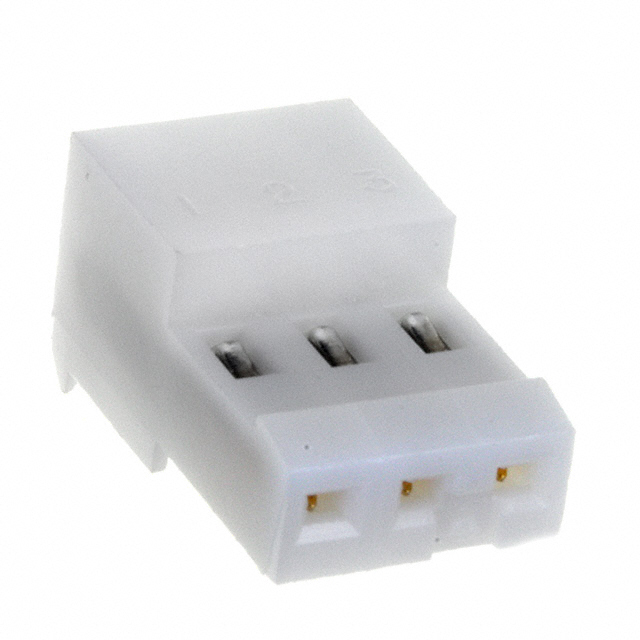

TE Connectivity AMP Connectors 641191-3	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	3	Female Socket	Receptacle
TE Connectivity AMP Connectors 641191-8	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	8	Female Socket	Receptacle

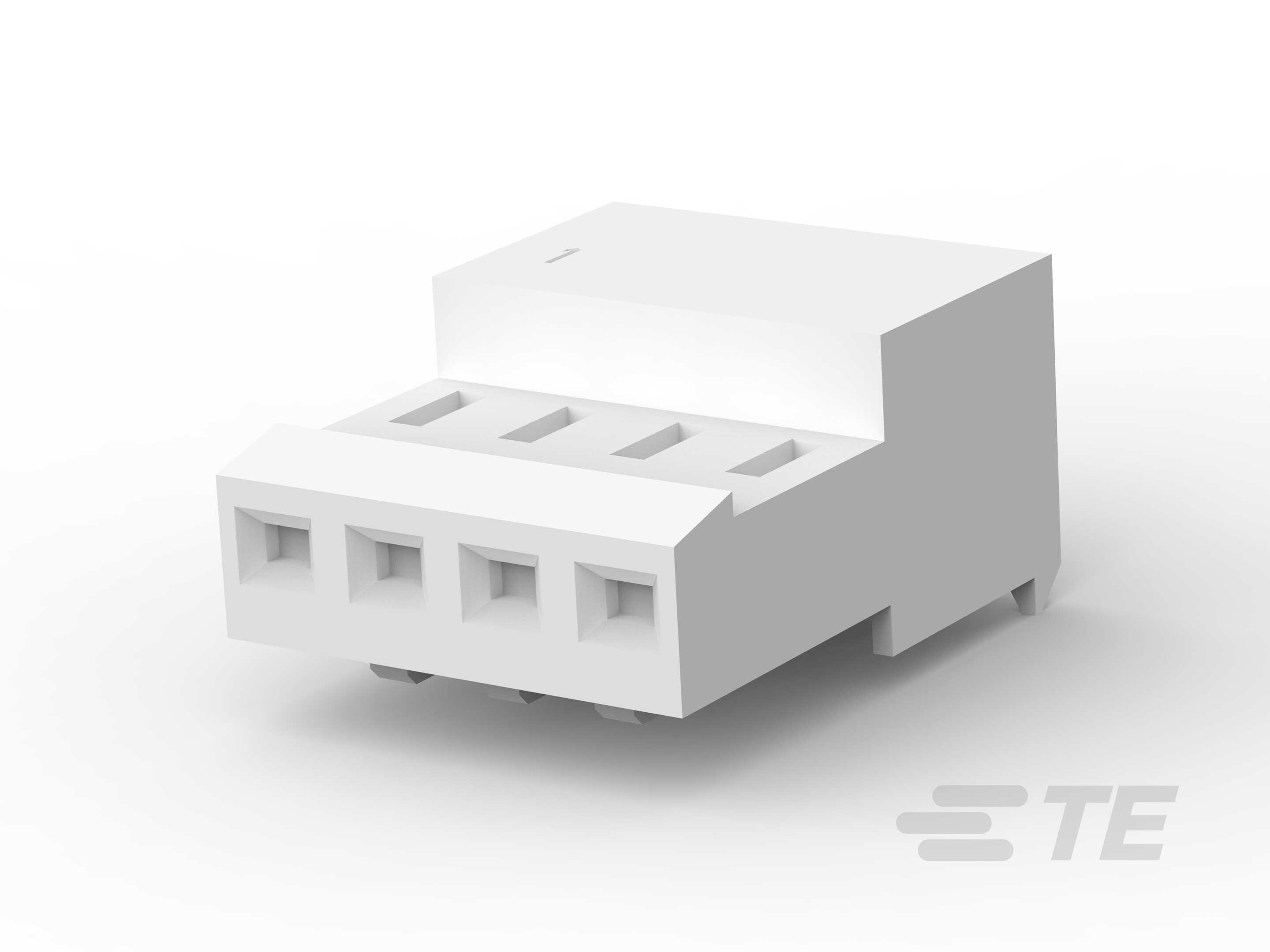

TE Connectivity AMP Connectors 3-641191-4	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	4	Female Socket	Receptacle
TE Connectivity AMP Connectors 641191-5	24 AWG	1	15 µin	Closed End	0.1 in	IDC	Locking Ramp	White	Discrete Ribbon Cable	Gold	Free Hanging (In-Line) Right Angle	5	Female Socket	Receptacle
