043680 Series
Manufacturer: Molex
Beta
⌘K
CONN HOUSING M 2 POS 7.49MM CRIMP ST CABLE MOUNT BLACK SABRE™ BAG
| Part | Color | Contact Type | Stacking Direction | Number of Rows | Pitch | Connector Type | Mounting Type | Contact Termination | Number of Positions | Fastening Type | Note | Operating Temperature (Max) | Operating Temperature (Min) | Material - Insulation | Current Rating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | Male Blade | Side to Side | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 2 | Locking Ramp | Contacts Not Included | 75 °C | -40 °C | Nylon PA Polyamide | 18 A | |

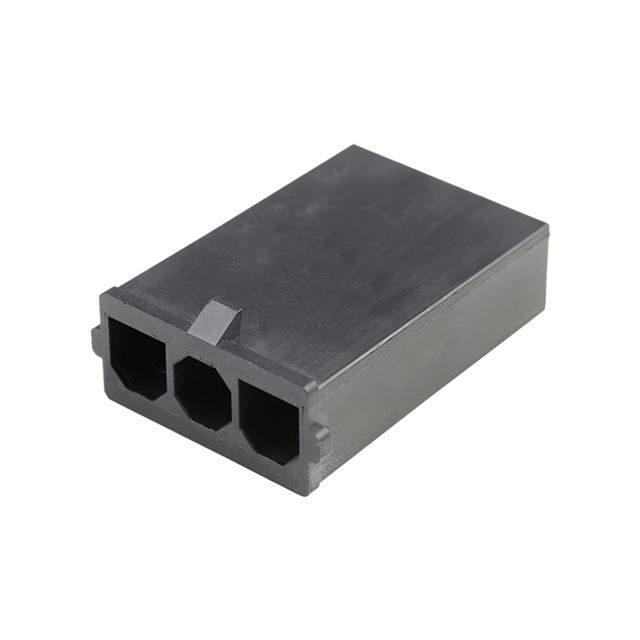

 Molex | Black | Male Blade | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 3 | Locking Ramp | Contacts Not Included | 75 °C | -45 °C | Nylon PA Polyamide | 12 A | 600 V | |
 Molex | Natural | Male Blade | Side to Side | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 3 | Locking Ramp | Contacts Not Included | 75 °C | -40 °C | Nylon PA Polyamide | 18 A | |
 Molex | Natural | Male Blade | Side to Side | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 2 | Locking Ramp | Contacts Not Included | 75 °C | -40 °C | Nylon PA Polyamide | 18 A | |
 Molex | Black | Male Blade | Side to Side | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 6 | Locking Ramp | Contacts Not Included | 75 °C | -40 °C | Nylon PA Polyamide | 18 A | |
 Molex | Natural | Male Blade | Side to Side | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 4 | Locking Ramp | Contacts Not Included | 75 °C | -40 °C | Nylon PA Polyamide | 18 A | |

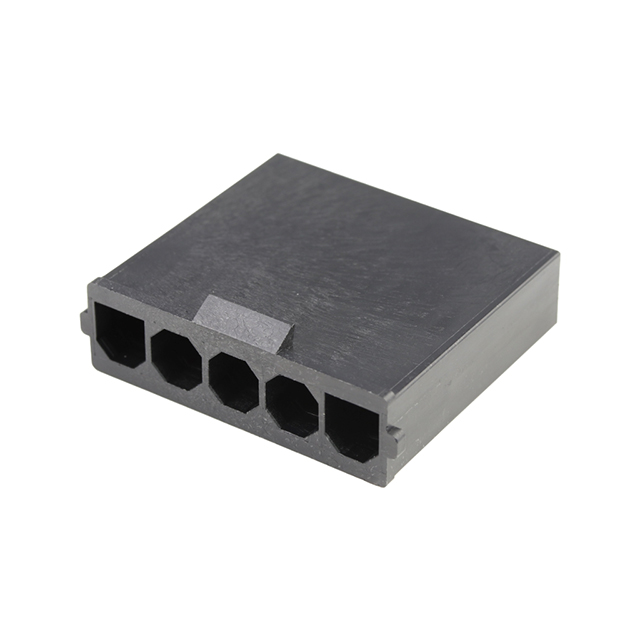

 Molex | Black | Male Blade | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 5 | Locking Ramp | Contacts Not Included | 75 °C | -45 °C | Nylon PA Polyamide | 12 A | 600 V | |
 Molex | Natural | Male Blade | Side to Side | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 6 | Locking Ramp | Contacts Not Included | 75 °C | -40 °C | Nylon PA Polyamide | 18 A | |
 Molex | Black | Male Blade | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 2 | Locking Ramp | Contacts Not Included | 75 °C | -45 °C | Nylon PA Polyamide | 12 A | 600 V | |
 Molex | Black | Male Blade | Side to Side | 1 | 0.295 in | Plug | Free Hanging (In-Line) | Crimp | 4 | Locking Ramp | Contacts Not Included | 75 °C | -40 °C | Nylon PA Polyamide | 18 A |
