8080 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

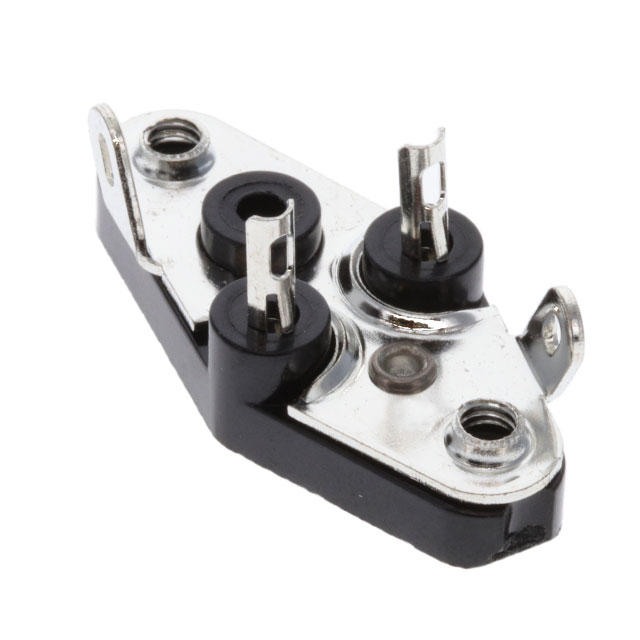

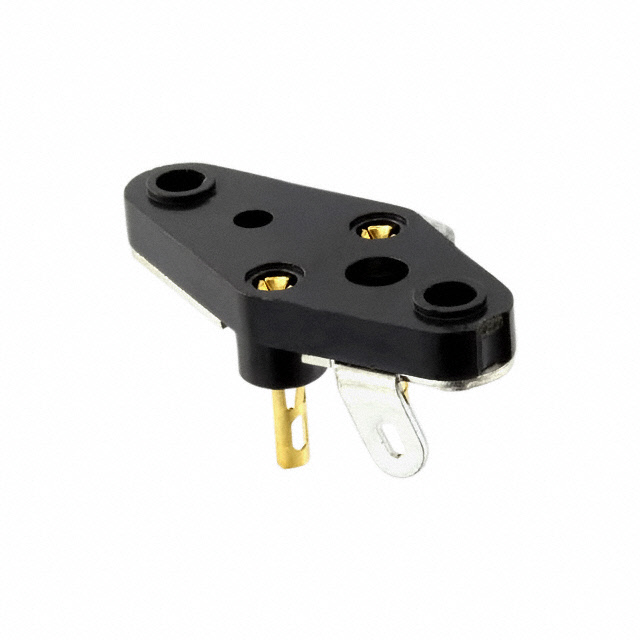

CONN TRANSIST TO-3 3POS TIN
| Part | Type | Contact Material - Post | Operating Temperature [Min] | Operating Temperature [Max] | Features | Housing Material | Contact Material - Mating | Mounting Type | Number of Positions or Pins (Grid) | Termination | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Material Flammability Rating | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Chassis Mount | 3 | Solder | Tin | 5.08 µm | 200 µin | 200 µin | 5.08 µm | |||
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Phenolic | Beryllium Copper | Through Hole | 3 | Solder | Tin-Lead | 5.08 µm | 200 µin | Tin-Lead | UL94 V-0 | |||
 TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Fluoropolymer (FP) | Beryllium Copper | Through Hole | 4 | Solder | Gold | Gold | ||||||
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Chassis Mount | 3 | Solder | Tin | |||||||
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Diallyl Phthalate | Beryllium Copper | Chassis Mount | 3 | Solder | Tin-Lead | 5.08 µm | 200 µin | 20 µin | 0.51 µm | Tin-Lead | UL94 V-0 | 25 mOhm |
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Diallyl Phthalate | Beryllium Copper | Chassis Mount | 3 | Solder | Silver | 12.7 µm | 500 µin | 500 µin | 12.7 µm | Silver | UL94 V-0 | |
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Chassis Mount | 3 | Solder | Tin | |||||||
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Chassis Mount | 3 | Solder | Silver | Silver | ||||||
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Chassis Mount | 3 | Solder | Gold | Gold | ||||||
TE Connectivity Raychem Cable Protection | Transistor TO-3 | Beryllium Copper | -55 °C | 125 °C | Closed Frame | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Chassis Mount | 3 | Solder | Gold | Gold |
