Power Thyristor Discretes-SCR TO-3P (3)
Description
AI
The Standard SCR series offers thyristors in various packages and breakdown voltages up to 1800V.
Beta
⌘K
Power Thyristor Discretes-SCR TO-3P (3)
Power Thyristor Discretes-SCR TO-3P (3)
| Part | Mounting Type | Voltage - Gate Trigger (Vgt) (Max) | SCR Type | Package / Case | Current - On State (Max) | Current - On State (It (RMS)) (Max) | Voltage - On State (Vtm) (Max) | Package Name | Operating Temperature (Min) | Operating Temperature (Max) | Current - Non Rep. Surge Type | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge (Itsm) | Current - Gate Trigger (Igt) (Max) | Current - Hold (Ih) (Max) | Voltage - Off State |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

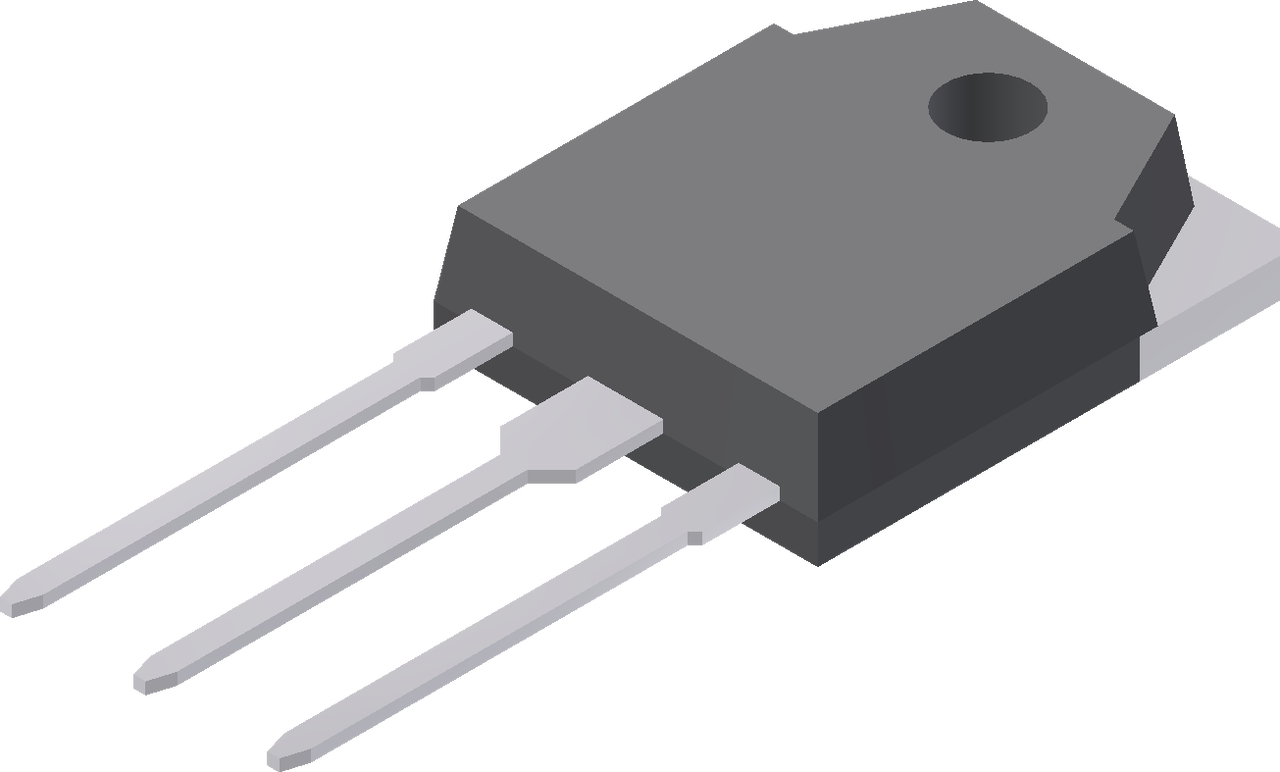

 LITTELFUSE | Through Hole | 1.5 V | Standard Recovery | SC-65-3 TO-3P-3 | 50 A | 79 A | 1.3 V | TO-3P | -40 °C | 150 °C | Itsm | 50Hz 60Hz | 550 A 595 A | 50 mA | 100 mA | 1.6 kV |
