1969605 Series

Catalog

POWER TO THE BOARD 4P PM PLUG VAL-U-LOK PM GW

Part	Note	Fastening Type	Row Spacing	Contact Type	Connector Type	Number of Positions	Number of Rows	Insulation Material	Color	Contact Termination	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type
TE Connectivity AMP Connectors 1969605-4	Contacts Not Included	Locking Ramp	0.165 in	Male Pin	Plug	4	2	Nylon Polyamide (PA)	Natural	Crimp	0.165 in	-40 °C	105 °C	Panel Mount Snap-In
TE Connectivity AMP Connectors 1-1969605-8	Contacts Not Included	Locking Ramp	0.165 in	Male Pin	Plug	18	2	Nylon Polyamide (PA)	Natural	Crimp	0.165 in	-40 °C	105 °C	Panel Mount Snap-In
TE Connectivity AMP Connectors 1-1969605-0	Contacts Not Included	Locking Ramp	0.165 in	Male Pin	Plug	10	2	Nylon Polyamide (PA)	Natural	Crimp	0.165 in	-40 °C	105 °C	Panel Mount Snap-In

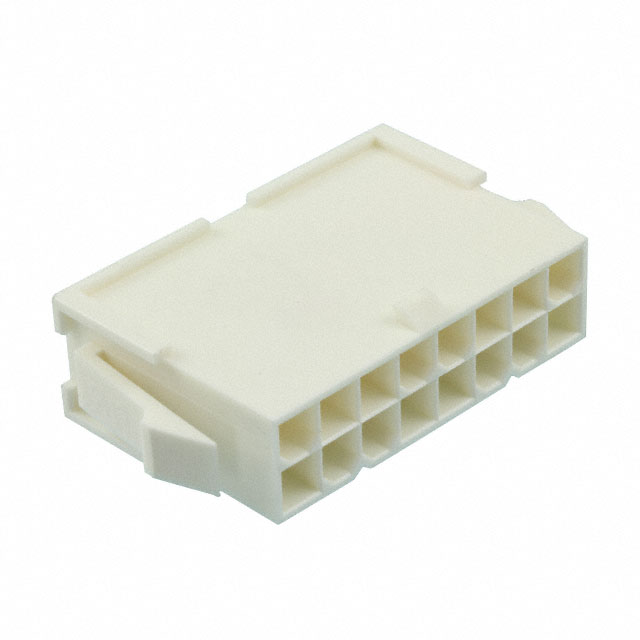

TE Connectivity AMP Connectors 1-1969605-6	Contacts Not Included	Locking Ramp	0.165 in	Male Pin	Plug	16	2	Nylon Polyamide (PA)	Natural	Crimp	0.165 in	-40 °C	105 °C	Panel Mount Snap-In

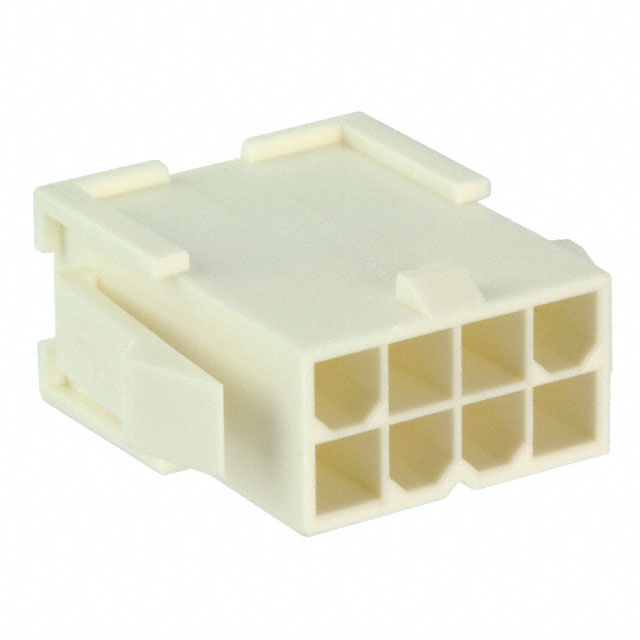

TE Connectivity AMP Connectors 1969605-8	Contacts Not Included	Locking Ramp	0.165 in	Male Pin	Plug	8	2	Nylon Polyamide (PA)	Natural	Crimp	0.165 in	-40 °C	105 °C	Panel Mount Snap-In
TE Connectivity AMP Connectors 1969605-6	Contacts Not Included	Locking Ramp	0.165 in	Male Pin	Plug	6	2	Nylon Polyamide (PA)	Natural	Crimp	0.165 in	-40 °C	105 °C	Panel Mount Snap-In
