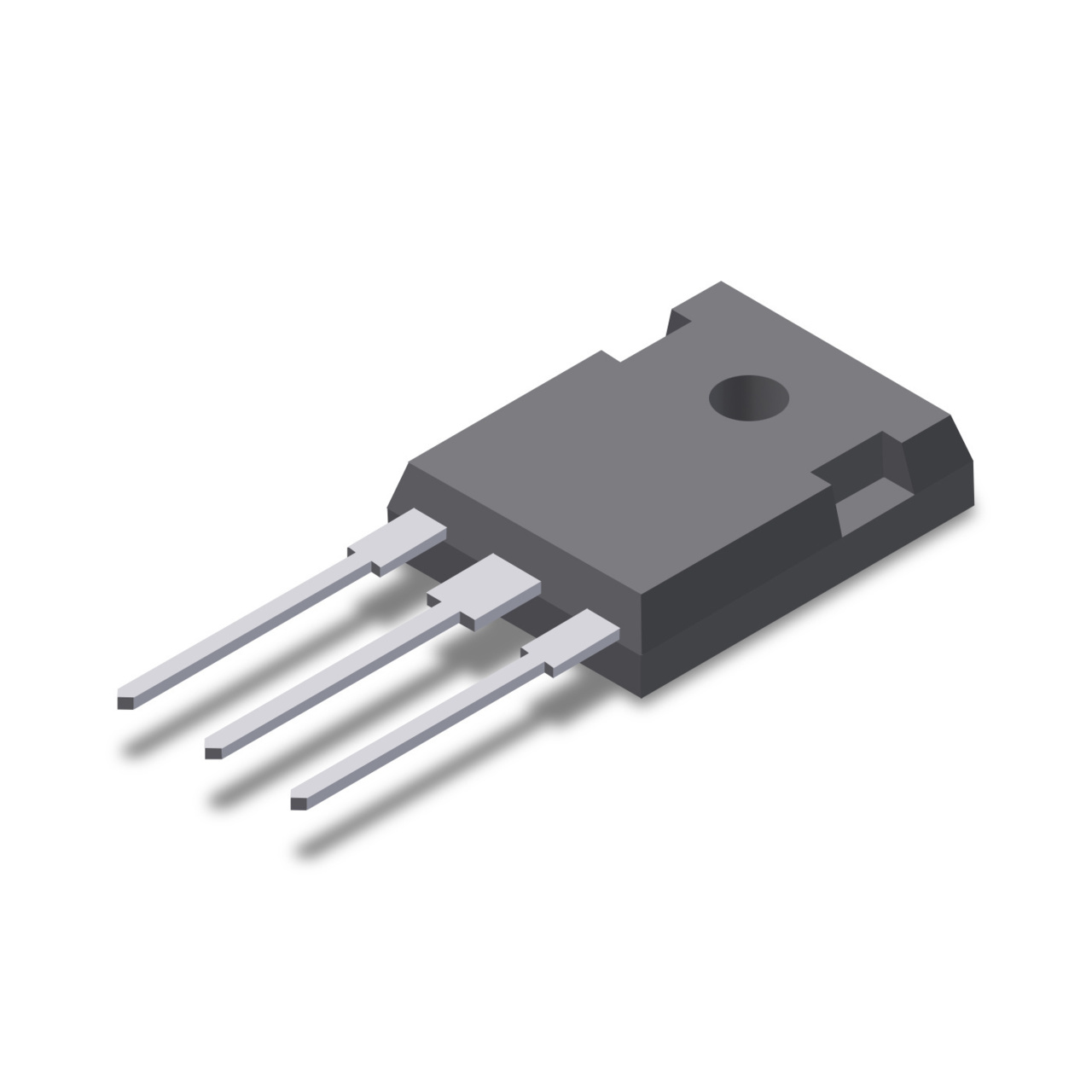

IXTH300N04 Series
Manufacturer: LITTELFUSE
Beta
⌘K
DISCMSFT NCHTRENCHGATE-GEN2 TO-247AD/ TUBE
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) | Drive Voltage (Max Rds On, Min Rds On) | Vgs (Max) | Power Dissipation (Max) | Mounting Type | Vgs(th) (Max) | Technology | FET Type | Rds On (Max) | Current - Continuous Drain (Id) (Tc) | Gate Charge (Max) | Package Name |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | -55 °C | 175 °C | TO-247-3 | 40 V | 10700 pF | 10 V | 20 V | 480 W | Through Hole | 4 V | MOSFET (Metal Oxide) | N-Channel | 2.5 mOhm | 300 A | 145 nC | TO-247 (IXTH) |
