PX2AF1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

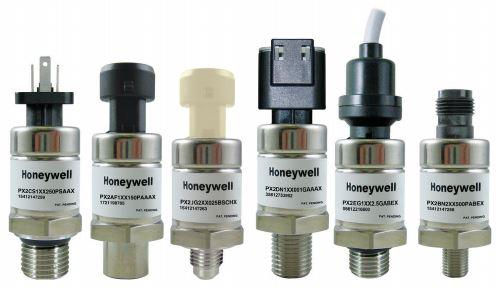

INDUSTRIAL PRESSURE SENSOR 0PSI TO 200PSI SEALED GAGE 3-PIN

Part	Termination Style	Maximum Pressure	Package / Case	Output Voltage (Min)	Output Voltage (Max)	Port Style	Accuracy	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Port Diameter	Port Feature	Port Gender	Applications	Operating Pressure	Features	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Pressure Type	Output Current (Max)	Output Current (Min)
Honeywell Sensing and Productivity Solutions PX2AF1XX200PSAAX	Connector	750 PSI	Cylinder	0.5 V	4.5 V	Threaded	0.25 %	5.25 V	4.75 V	0.4375 in	Schrader UNF	Female	Industrial Automation	200 PSI	Temperature Compensated	Analog Voltage	125 °C	-40 °C	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2AF1XX667PSAAM	Connector	1000 PSI	Cylinder	0.5 V	4.5 V	Threaded	0.25 %	30 VDC	8 V	0.4375 in	Schrader UNF	Female	Industrial Automation	667 PSI	Temperature Compensated	Analog Voltage	125 °C	-40 °C	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2AF1XX050PAAAX	Connector	250 PSI	Cylinder	0.5 V	4.5 V	Threaded	0.25 %	5.25 V	4.75 V	0.4375 in	Schrader UNF	Female	Industrial Automation	50 PSI	Temperature Compensated	Analog Voltage	125 °C	-40 °C	Absolute
Honeywell Sensing and Productivity Solutions PX2AF1XX300PSCHX	Connector	1000 PSI	Cylinder			Threaded	0.25 %	30 VDC	8 V	0.4375 in	Schrader UNF	Female	Industrial Automation	300 PSI	Temperature Compensated	Analog Current	125 °C	-40 °C	Sealed Gauge	20 mA	4 mA
Honeywell Sensing and Productivity Solutions PX2AF1XX500PGAAX	Connector	1000 PSI	Cylinder	0.5 V	4.5 V	Threaded	0.25 %	5.25 V	4.75 V	0.4375 in	Schrader UNF	Female	Industrial Automation	500 PSI	Temperature Compensated	Analog Voltage	125 °C	-40 °C	Vented Gauge
Honeywell Sensing and Productivity Solutions PX2AF1XX250PSAAX	Connector	750 PSI	Cylinder	0.5 V	4.5 V	Threaded	0.25 %	5.25 V	4.75 V	0.4375 in	Schrader UNF	Female	Industrial Automation	250 PSI	Temperature Compensated	Analog Voltage	125 °C	-40 °C	Sealed Gauge
Honeywell Sensing and Productivity Solutions PX2AF1XX667PSCHX	Connector	1000 PSI	Cylinder			Threaded	0.25 %	30 VDC	8 V	0.4375 in	Schrader UNF	Female	Industrial Automation	667 PSI	Temperature Compensated	Analog Current	125 °C	-40 °C	Sealed Gauge	20 mA	4 mA
Honeywell Sensing and Productivity Solutions PX2AF1XX500PSCHX	Connector	1000 PSI	Cylinder			Threaded	0.25 %	30 VDC	8 V	0.4375 in	Schrader UNF	Female	Industrial Automation	500 PSI	Temperature Compensated	Analog Current	125 °C	-40 °C	Sealed Gauge	20 mA	4 mA
Honeywell Sensing and Productivity Solutions PX2AF1XX300PAAAX	Connector	1000 PSI	Cylinder	0.5 V	4.5 V	Threaded	0.25 %	5.25 V	4.75 V	0.4375 in	Schrader UNF	Female	Industrial Automation	300 PSI	Temperature Compensated	Analog Voltage	125 °C	-40 °C	Absolute
Honeywell Sensing and Productivity Solutions PX2AF1XX500PSBEX	Connector	1000 PSI	Cylinder	0.5 V	4.5 V	Threaded	0.25 %	30 VDC	8 V	0.4375 in	Schrader UNF	Female	Industrial Automation	500 PSI	Temperature Compensated	Analog Voltage	125 °C	-40 °C	Sealed Gauge
