ISL9307 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

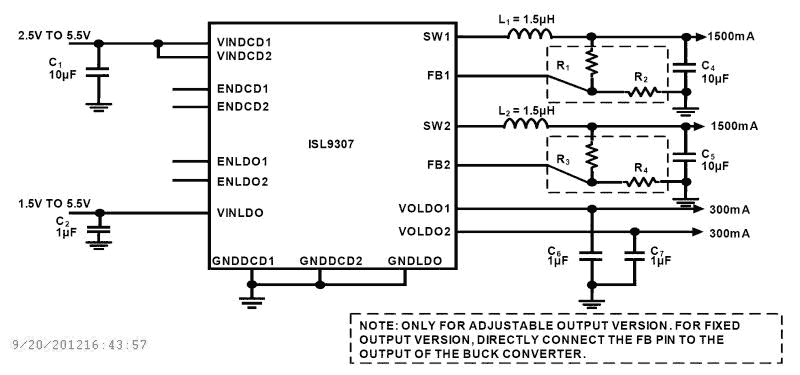

3MHZ DUAL 1500MA STEP-DOWN CONVERTERS AND DUAL LOW-INPUT LDOS
| Part | Voltage (Output 3) | Current (Output 3) | w/Supervisor | Number of Outputs | Frequency - Switching | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Package Length | Package Name | Package Width | Topology | w/LED Driver | Current - Output 1 | Voltage - Output 1 (Max) | Voltage - Output 1 (Min) | Voltage - Output 2 (Maximum) | Voltage - Output 2 (Minimum) | Current - Output 2 | w/Sequencer | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Voltage - Output 2 | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | 2.8 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
 Renesas Electronics Corporation | 2.8 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
 Renesas Electronics Corporation | 3.3 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
Renesas Electronics Corporation | 3.3 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
Renesas Electronics Corporation | 3.3 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
Renesas Electronics Corporation | 3.3 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
Renesas Electronics Corporation | 1.2 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 1.5 A | No | 5.5 V | 1.5 V | 1.8 V | 1.2 V | ||||
Renesas Electronics Corporation | 3.3 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
Renesas Electronics Corporation | 2.8 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V | ||
Renesas Electronics Corporation | 2.8 V | 300 mA | No | 4 | 3 MHz | 16-WQFN Exposed Pad | -40 °C | 85 °C | Surface Mount | 4 mm | 16-TQFN | 4 mm | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | No | 1.5 A | 5.5 V | 800 mV | 5.5 V | 0.8 V | 1.5 A | No | 5.5 V | 1.5 V |
