DCNLM400NB48 Series

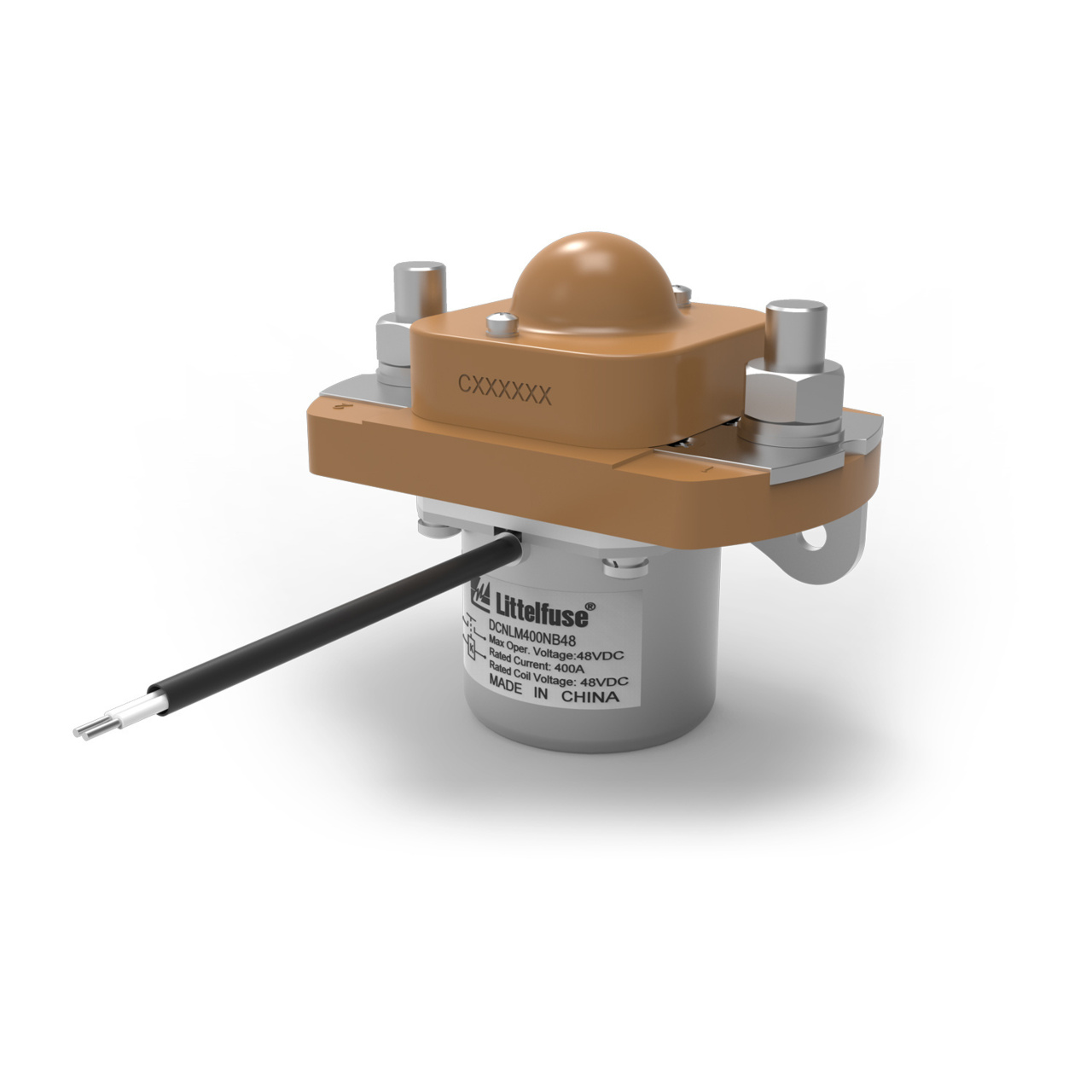

DCNL 400A 48V NP NO 48V Coil Contactor

Catalog

DCNL 400A 48V NP NO 48V Coil Contactor

Part	Operating Temperature (Min)	Operating Temperature (Max)	Must Operate Voltage	Must Release Voltage	Coil Voltage	Termination Style	Mounting Type	Switching Voltage DC (Max)	Contact Rating (Current)	Form A Count	Contact Form
LITTELFUSE DCNLM400NB48	-40 °C	70 °C	33.6 VAC	4 VDC	48 V	Stud	Chassis Mount	60 VDC	400 A	1	SPST-NO

Catalog

DCNL 400A 48V NP NO 48V Coil Contactor

Description

The DCNLM Series 48V High-Current DC Contactor Relay features 400A contact switching capability with a 48V coil rating, which is suitable for a wide variety of applications, including use in electrical control systems, communication power supplies, engineering machines, and uninterruptible power supplies (UPS). This configuration of the DCNLM normally open, high-current DC contactor (DCNLM400NB48) features 48V non-polarized main contacts and a single-coil design.
