AMP LATTICE Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

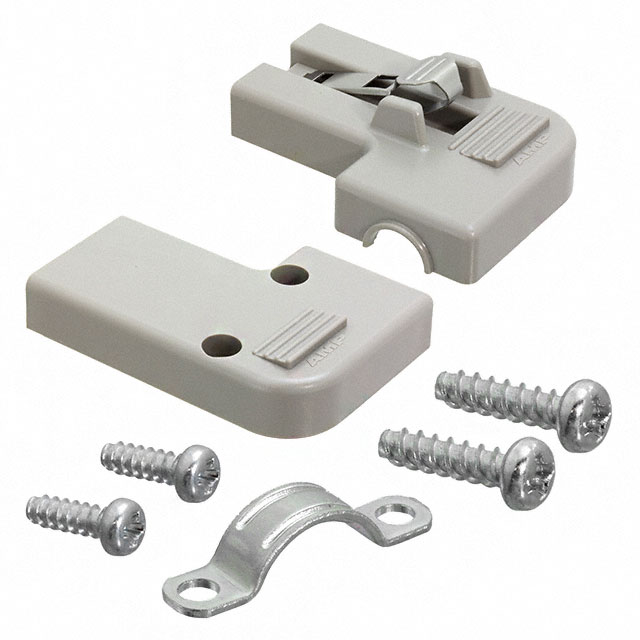

HEADERS & WIRE HOUSINGS AMP LATTICE CONN 12P COVER KIT
| Part | Number of Positions | Accessory Type | Note | Mounting Type | Contact Termination | Insulation Material | Operating Temperature (Min) | Operating Temperature (Max) | Connector Type | Pitch | Row Spacing | Number of Rows | Color | Contact Type | Contact Finish | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Pin or Socket |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 12 | Cable Clamp | ||||||||||||||||
 TE Connectivity AMP Connectors | 28 | Cable Clamp | ||||||||||||||||
TE Connectivity AMP Connectors | 12 | Cap (Cover) Dust | ||||||||||||||||

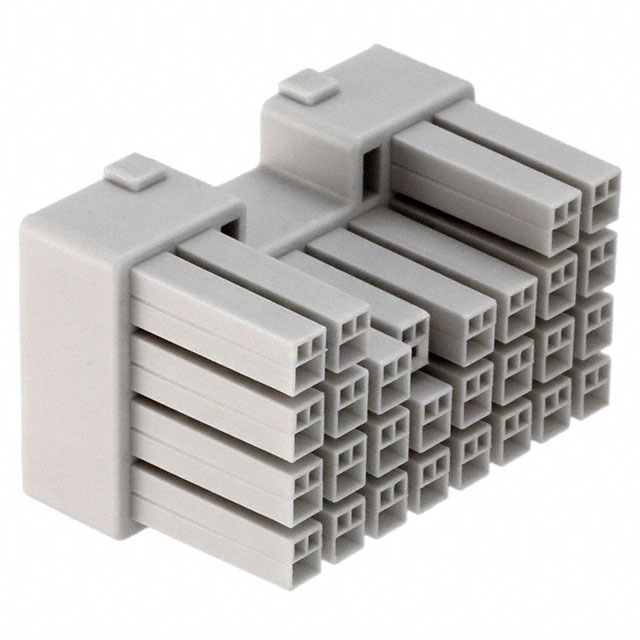

 TE Connectivity AMP Connectors | 28 | Contacts Not Included | Free Hanging (In-Line) | Crimp | Nylon 6/6 Polyamide (PA66) | -20 °C | 105 °C | Plug | 0.156 in | 0.181 in | 4 | Gray | Female Socket | |||||
 TE Connectivity AMP Connectors | Crimp | Tin | 20.5 AWG | 16 AWG | Socket | |||||||||||||
 TE Connectivity AMP Connectors | Crimp | Tin | 26 AWG | 22 AWG | Socket | |||||||||||||
 TE Connectivity AMP Connectors | 12 | Cable Clamp | ||||||||||||||||
TE Connectivity AMP Connectors | 12 | Cable Clamp | ||||||||||||||||
 TE Connectivity AMP Connectors | Crimp | Tin | 26 AWG | 22 AWG | Socket | |||||||||||||
 TE Connectivity AMP Connectors | Crimp | Tin | 20.5 AWG | 16 AWG | Socket |
