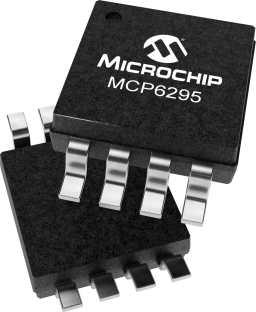

MCP6295 Series

Catalog

IC,OPERATIONAL AMPLIFIER,DUAL,CMOS,TSSOP,8PIN,PLASTIC ROHS COMPLIANT: YES

Part	Current - Output / Channel	Current - Supply	Mounting Type	Gain Bandwidth Product	Package Width	Package Name	Package Length	Slew Rate	Amplifier Type	Voltage - Supply Span (Min)	Voltage - Supply Span (Max)	Current - Input Bias	Operating Temperature (Max)	Operating Temperature (Min)	Output Type	Voltage - Input Offset	Number of Circuits
Microchip Technology MCP6295T-E/MS	25 mA	1 mA	Surface Mount	10 MHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	7 V/µs	General Purpose	2.4 V	6 V	1 pA	125 °C	-40 °C	Rail-to-Rail	3 mV	2
Microchip Technology MCP6295T-E/SN	25 mA	1 mA	Surface Mount	10 MHz	3.9 mm	8-SOIC	0.154 in	7 V/µs	General Purpose	2.4 V	6 V	1 pA	125 °C	-40 °C	Rail-to-Rail	3 mV	2
Microchip Technology MCP6295-E/P	25 mA	1 mA	Through Hole	10 MHz	7.62 mm	8-DIP 8-PDIP	0.3 in	7 V/µs	General Purpose	2.4 V	6 V	1 pA	125 °C	-40 °C	Rail-to-Rail	3 mV	2
Microchip Technology MCP6295-E/SN	25 mA	1 mA	Surface Mount	10 MHz	3.9 mm	8-SOIC	0.154 in	7 V/µs	General Purpose	2.4 V	6 V	1 pA	125 °C	-40 °C	Rail-to-Rail	3 mV	2
Microchip Technology MCP6295-E/MS	25 mA	1 mA	Surface Mount	10 MHz	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in	7 V/µs	General Purpose	2.4 V	6 V	1 pA	125 °C	-40 °C	Rail-to-Rail	3 mV	2
