750678 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

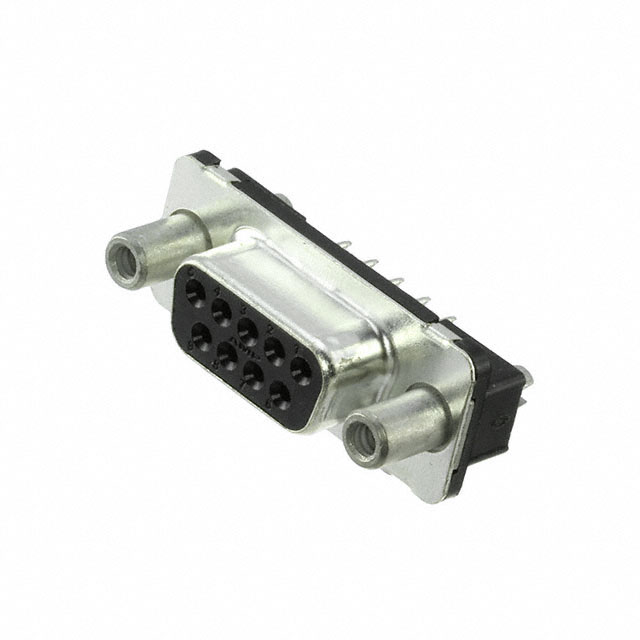

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Number of Rows | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Voltage Rating | Color | Current Rating (Amps) | Connector Style | Contact Material | Flange Feature | Termination | Connector Type | Dielectric Material | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 2 | Signal | DE E | 1 | 125 VDC | Black | 6 A | D-Sub | Phosphor Bronze | Female Screwlock (4-40) Mating Side | Solder | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) | Through Hole | Gold | 0.76 Ám | 30 Áin | 9 | 105 ░C | -55 °C | UL94 V-0 |
