320561 Series

Catalog

RING TONGUE TERMINAL 14-16AWG COPPER BLUE 17.856MM TIN LOOSE

Part	Contact Material	Terminal Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Insulation	Termination	Length - Overall	Width - Outer Edges	Color	Thickness	Stud/Tab Size	Mounting Type	Features	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Wire Gauge
TE Connectivity AMP Connectors 8-320561-1	Copper	Circular	16 AWG	14 AWG	Tin	Insulated	Crimp	0.703 in	0.25 in	Blue	0.031 in	6 Stud	Free Hanging (In-Line)	Serrated Termination	Nylon PA Polyamide	0.105 in	0.15 in

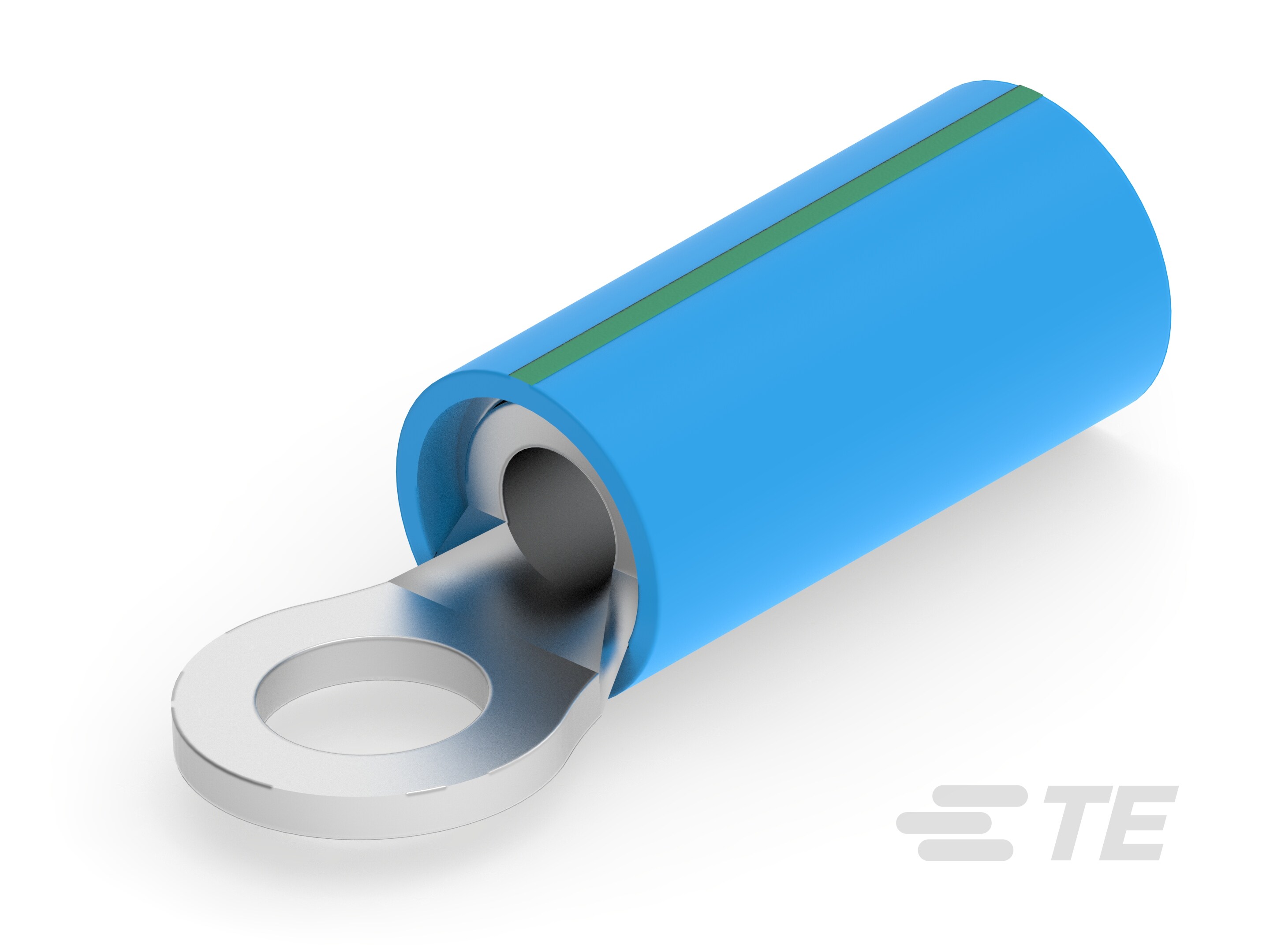

TE Connectivity AMP Connectors 2-320561-4	Copper	Circular			Tin	Insulated	Crimp	0.765 in	0.25 in	Blue Green Stripe	0.031 in	6 Stud	Free Hanging (In-Line)	Insulation Restriction	Nylon PA Polyamide	0.078 in	0.13 in	14 AWG
