ATTINY3217 Series

Catalog

125C, GREEN, 16MHZ, QFN24 WETTAB

Part	RAM Size Depth	RAM Size Width	Number of I/O	D/A Resolution (bits)	A/D Channels	D/A Channels	A/D Resolution (bits)	Connectivity	Package / Case	Program Memory Size	Program Memory Width	Program Memory Depth	Peripherals	Speed	Program Memory Type	Operating Temperature (Max)	Operating Temperature (Min)	Core Processor	Qualification	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Core Size (Bit Width)	Package Length	Package Name	Package Width	Oscillator Type	Mounting Type	Grade	EEPROM Size (Width)	EEPROM Size (Depth)	Board Type	Suggested Programming Environment	Interconnect System	Contents	Type	Platform	Utilized IC / Part
Microchip Technology ATTINY3217-MZ-VAO	2 K	8 bit	22	8 bit	24 count	3 count	10 bit	I2C IrDA LINbus SPI UART USART	24-VFQFN Exposed Pad	32 KB	8 bit	32 K	Brown-out Detect POR PWM Reset WDT	16 MHz	FLASH	125 °C	-40 °C	AVR	AEC-Q100	2.7 V	5.5 V	8 Bit	4 mm	24-VQFN	4 mm	Internal	Surface Mount	Automotive	8 bit	256
Microchip Technology ATTINY3217-XPRO																		AVR									Fixed				Evaluation Platform	Atmel Studio MPLAB X	Xplanned Pro	Board	MCU 8-Bit	ATtiny3217 Xplained Pro	ATtiny3217
Microchip Technology ATTINY3217-MB-VAO	2 K	8 bit	22	8 bit	24 count	3 count	10 bit	I2C IrDA LINbus SPI UART USART	24-VFQFN Exposed Pad	32 KB	8 bit	32 K	Brown-out Detect POR PWM Reset WDT	16 MHz	FLASH	105 °C	-40 °C	AVR	AEC-Q100	2.7 V	5.5 V	8 Bit	4 mm	24-VQFN	4 mm	Internal	Surface Mount	Automotive	8 bit	256
Microchip Technology ATTINY3217-MN	2 K	8 bit	22	8 bit	24 count	3 count	10 bit	I2C IrDA LINbus SPI UART USART	24-VFQFN Exposed Pad	32 KB	8 bit	32 K	Brown-out Detect POR PWM Reset WDT	20 MHz	FLASH	105 °C	-40 °C	AVR		1.8 V	5.5 V	8 Bit	4 mm	24-VQFN	4 mm	Internal	Surface Mount		8 bit	256

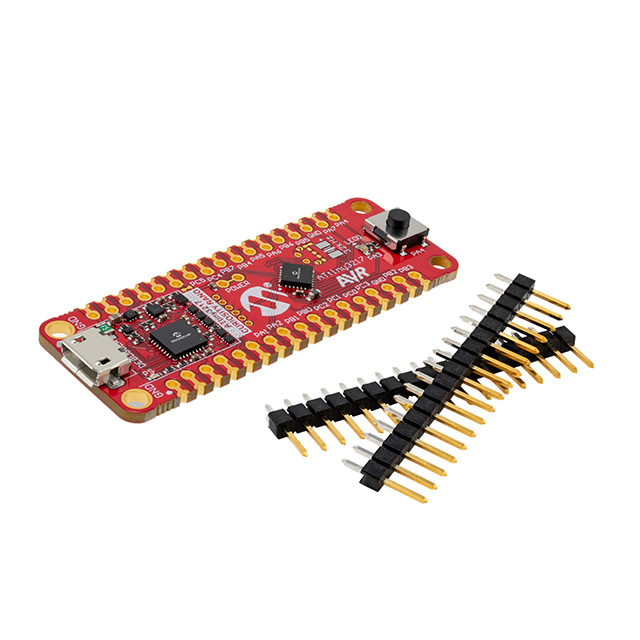

Microchip Technology EV50J96A																		AVR									Fixed				Evaluation Platform	Atmel Studio MPLAB X		Accessories Board	MCU 8-Bit	Curiosity Nano	ATtiny3217
Microchip Technology ATTINY3217-MFR	2 K	8 bit	22	8 bit	24 count	3 count	10 bit	I2C IrDA LINbus SPI UART USART	24-VFQFN Exposed Pad	32 KB	8 bit	32 K	Brown-out Detect POR PWM Reset WDT	16 MHz	FLASH	125 °C	-40 °C	AVR		2.7 V	5.5 V	8 Bit	4 mm	24-VQFN	4 mm	Internal	Surface Mount		8 bit	256
Microchip Technology ATTINY3217-MF	2 K	8 bit	22	8 bit	24 count	3 count	10 bit	I2C IrDA LINbus SPI UART USART	24-VFQFN Exposed Pad	32 KB	8 bit	32 K	Brown-out Detect POR PWM Reset WDT	16 MHz	FLASH	125 °C	-40 °C	AVR		2.7 V	5.5 V	8 Bit	4 mm	24-VQFN	4 mm	Internal	Surface Mount		8 bit	256
Microchip Technology ATTINY3217-MNR	2 K	8 bit	22	8 bit	24 count	3 count	10 bit	I2C IrDA LINbus SPI UART USART	24-VFQFN Exposed Pad	32 KB	8 bit	32 K	Brown-out Detect POR PWM Reset WDT	20 MHz	FLASH	105 °C	-40 °C	AVR		1.8 V	5.5 V	8 Bit	4 mm	24-VQFN	4 mm	Internal	Surface Mount		8 bit	256

Catalog

Description

The ATtiny3217 series of microcontroller features the 8-bit AVR® processor with hardware multiplier, running at up to 20 MHz and with up to 32 KB Flash, 2 KB SRAM and 256B of EEPROM in a 24-pin package. The series uses the latest Core Independent Peripherals with low-power features. It also includes an Event System, intelligent analog and advanced peripherals. Capacitive touch interfaces with proximity sensing and driven shield are supported by the integrated QTouch® Peripheral Touch Controller (PTC). **Functional Safety**: This product is recommended for [safety-critical applications](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/functional-safety), targeting industrial and automotive products (IEC 61508 and ISO 26262). Necessary documentation, such as the FMEDA report and Safety Manual, can be provided on request. The MPLAB X IDE and the [MPLAB XC8 compiler](https://www.microchip.com/en-us/development-tool/sw006021-fs) is available as a safety certified version. Contact your local Microchip sales office or your distributor for more information.
