74ALVCH162374 Series

3.3V CMOS 16-Bit Edge- Triggered D-Type Flip-Flop with 3-State Outputs, Bus-Hold

Manufacturer: Renesas Electronics Corporation

Catalog

3.3V CMOS 16-Bit Edge- Triggered D-Type Flip-Flop with 3-State Outputs, Bus-Hold

Part	Number of Elements	Current - Quiescent (Iq)	Clock Frequency	Operating Temperature (Max)	Operating Temperature (Min)	Max Propagation Delay	Max CL	Mounting Type	Type	Function	Package Name	Input Capacitance	Package Length	Package Width	Trigger Type	Number of Bits per Element	Current - Output High	Current - Output Low	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Type
Renesas Electronics Corporation 74ALVCH162374PAG8	2	40 µA	150 MHz	85 °C	-40 °C	4.6 ns	50 pF	Surface Mount	D-Type	Standard	48-TFSOP 48-TSSOP	5 pF	0.24 in	6.1 mm	Positive Edge	8 bits	12 mA	12 mA	3.6 V	2.7 V	Non-Inverted Tri-State
Renesas Electronics Corporation 74ALVCH162374PAG	2	40 µA	150 MHz	85 °C	-40 °C	4.6 ns	50 pF	Surface Mount	D-Type	Standard	48-TFSOP 48-TSSOP	5 pF	0.24 in	6.1 mm	Positive Edge	8 bits	12 mA	12 mA	3.6 V	2.7 V	Non-Inverted Tri-State

Catalog

3.3V CMOS 16-Bit Edge- Triggered D-Type Flip-Flop with 3-State Outputs, Bus-Hold

Description

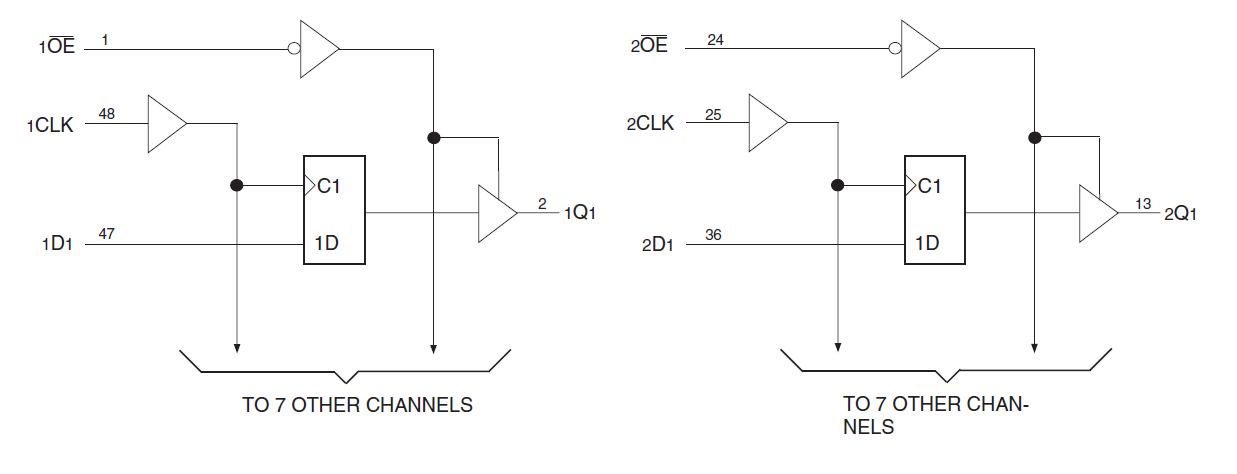

The 74ALVCH162374 16-bit edge-triggered D-type flip-flop is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. It can be used as two 8-bit flip-flops or one 16-bit flip-flop. The 74ALVCH162374 has series resistors in the device output structure which will significantly reduce line noise when used with light loads. The 74ALVCH162374 has "bus-hold" which prevents floating inputs and eliminates the need for pull-up/down resistor. The 74ALVCH162374 operates at -40C to +85C
