2204801 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

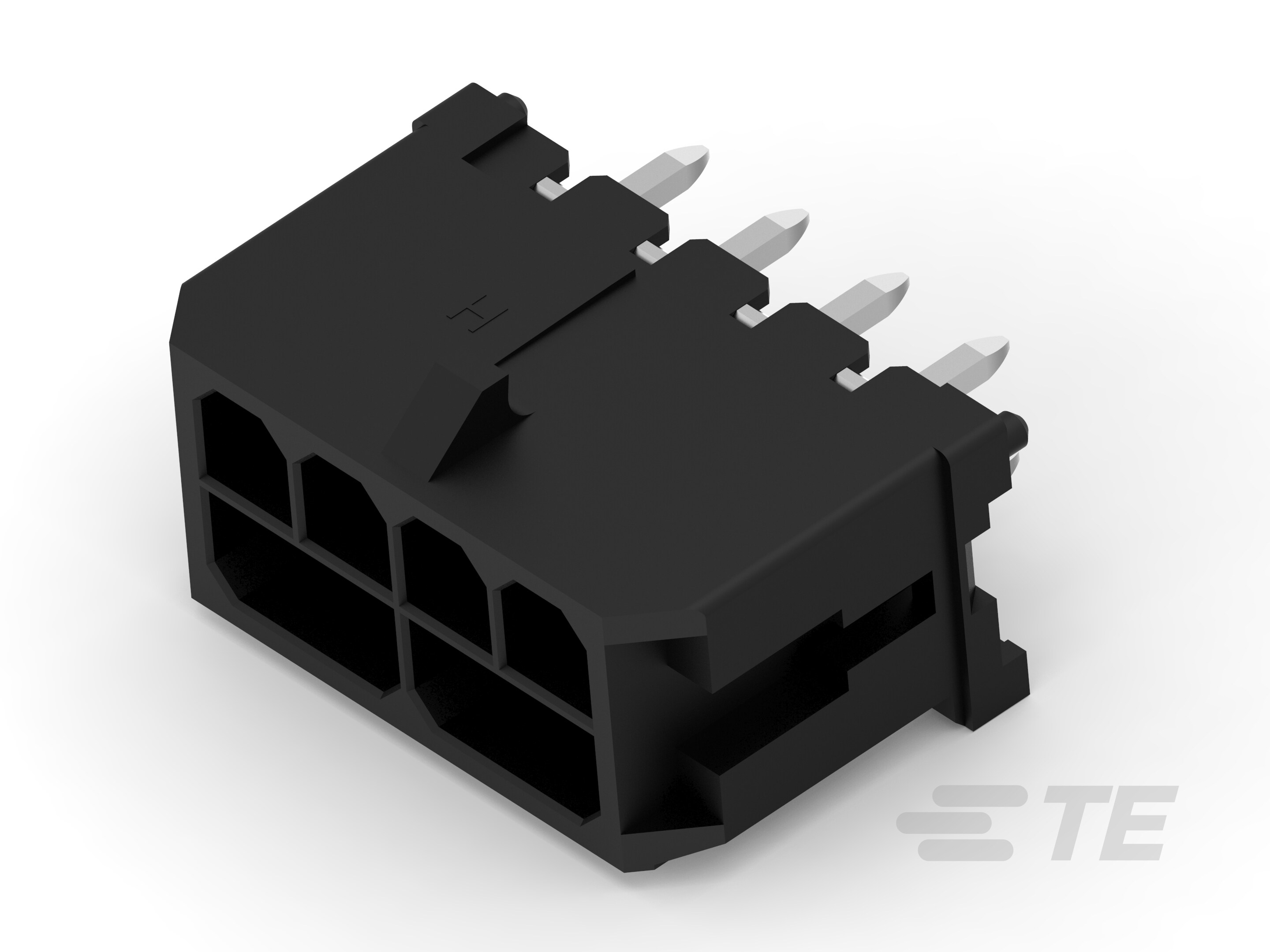

CONN HEADER PL 8 POS 3MM SOLDER ST THRU-HOLE 8 TERMINAL 1 PORT BOX
| Part | Contact Finish - Mating | Features | Insulation Material | Contact Material | Number of Positions | Position Types | Style | Number of Positions Loaded | Contact Type | Pitch - Mating | Fastening Type | Contact Shape | Insulation Color | Row Spacing - Mating | Contact Length - Post | Termination | Shrouding | Number of Rows | Contact Finish Thickness - Mating | Insulation Height | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage Rating | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Tin | Board Guide | Thermoplastic | Copper Alloy | 8 | Power | Board Cable/Wire | All | Male Pin | 0.118 in | Locking Ramp | Square | Black | 0.118 in | 0.125 in | Solder | Shrouded - 4 Wall | 2 | 100 µin | 0.39 in | Through Hole | -40 °C | 105 °C | 600 V | Header |
 TE Connectivity AMP Connectors | Tin | Board Guide | Thermoplastic | Copper Alloy | 4 | Power | Board Cable/Wire | All | Male Pin | 0.118 in | Locking Ramp | Square | Black | 0.118 in | 0.125 in | Solder | Shrouded - 4 Wall | 2 | 100 µin | 0.39 in | Through Hole | -40 °C | 105 °C | 600 V | Header |
